AC Infinity Advance Grow Tent System 2x2 Compact Kit, Integrated Smart Controls, and Full Spectrum LED Grow Light

Description

AI-driven controller predicts climate shifts using real-time and historical data, auto-adjusting connected devices for optimal grow conditions.

Connect this controller to the Wi-Fi app for access to real-time AI insights, guides, chatbot, and more from anywhere.

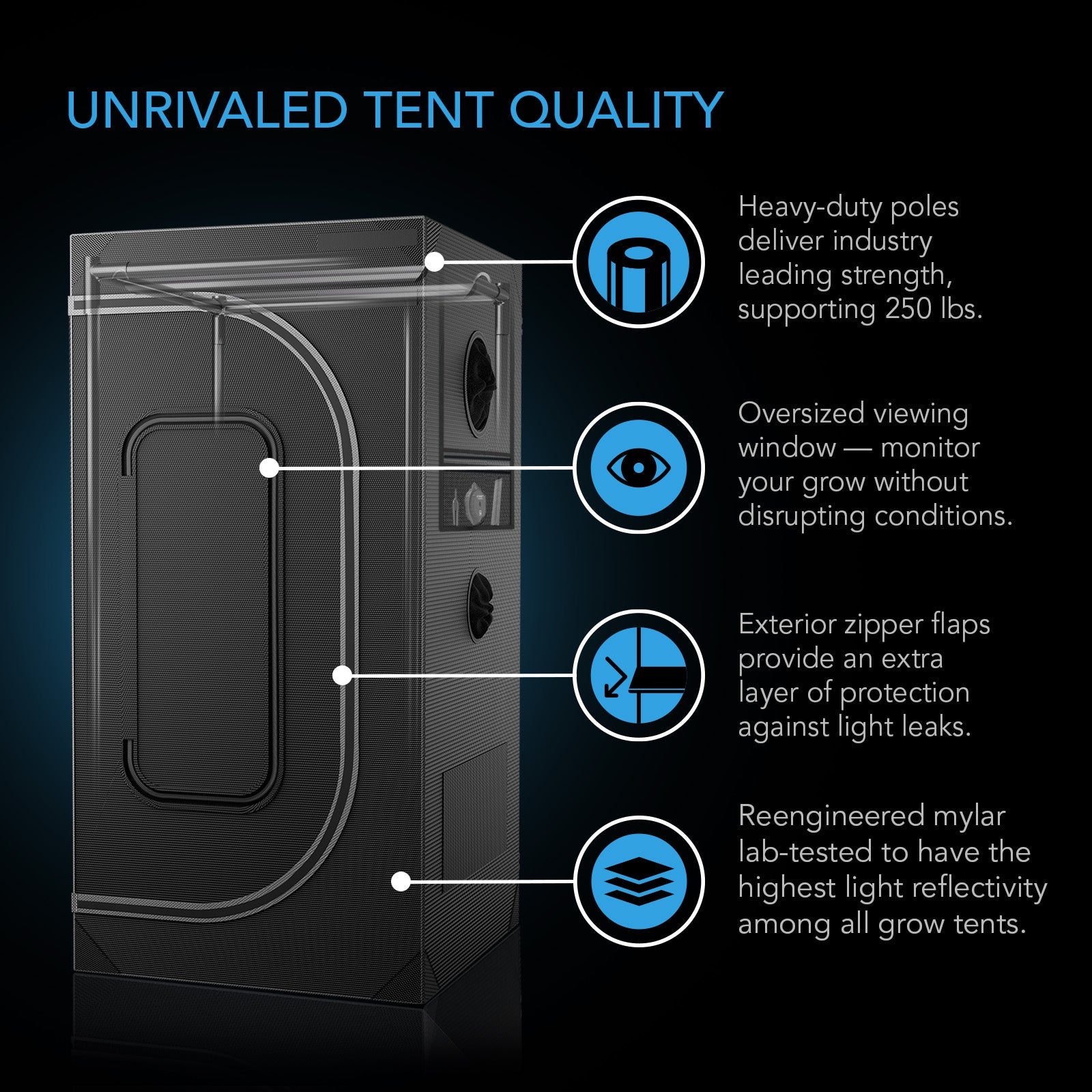

Advance grow tent features lab-tested reflective Mylar for maximum light efficiency, taller window for clear visibility, and enhanced light-blocking design.

EC inline fan 4", oscillating clip fan 6", and 2x2 full-spectrum grow light with Samsung LM301H LEDs.

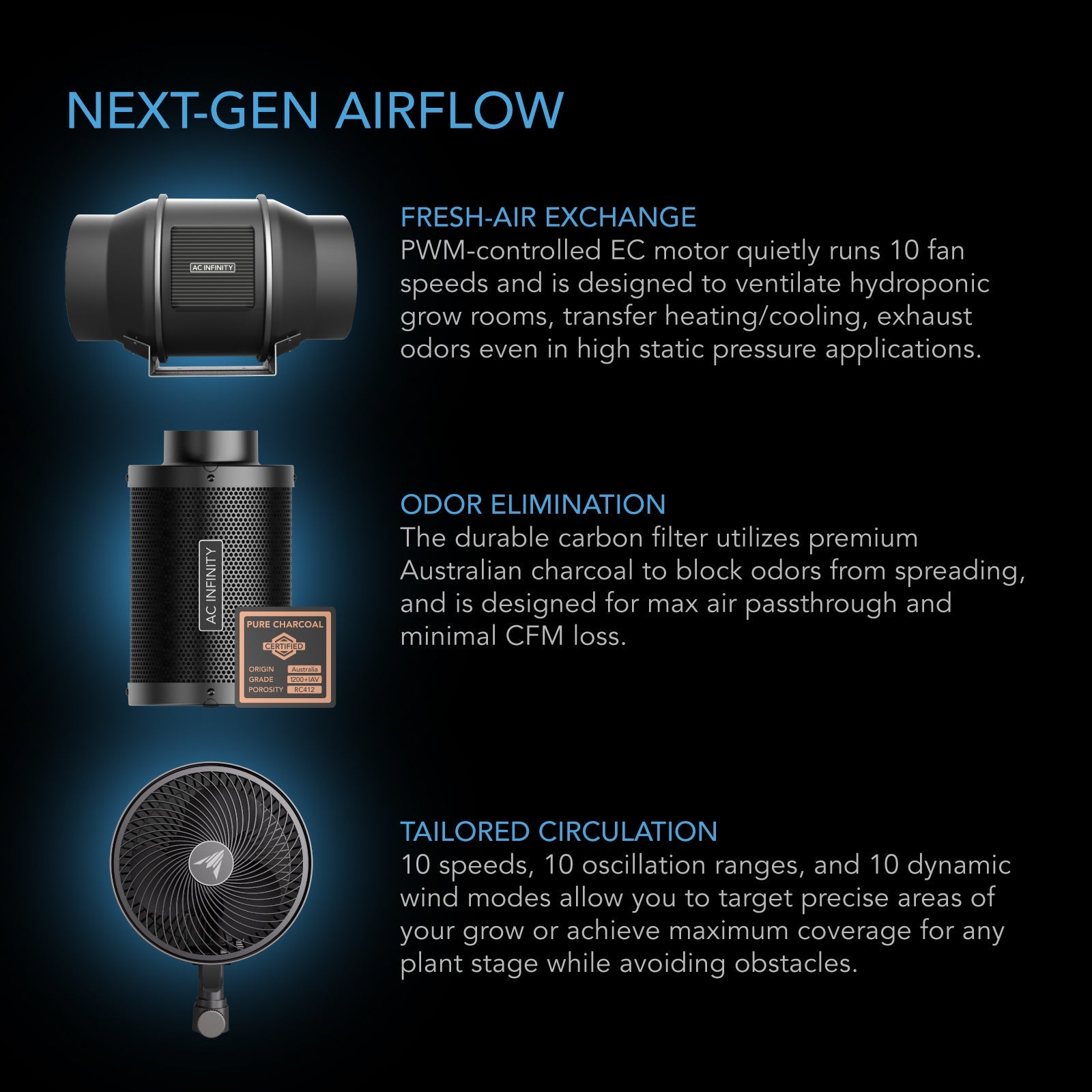

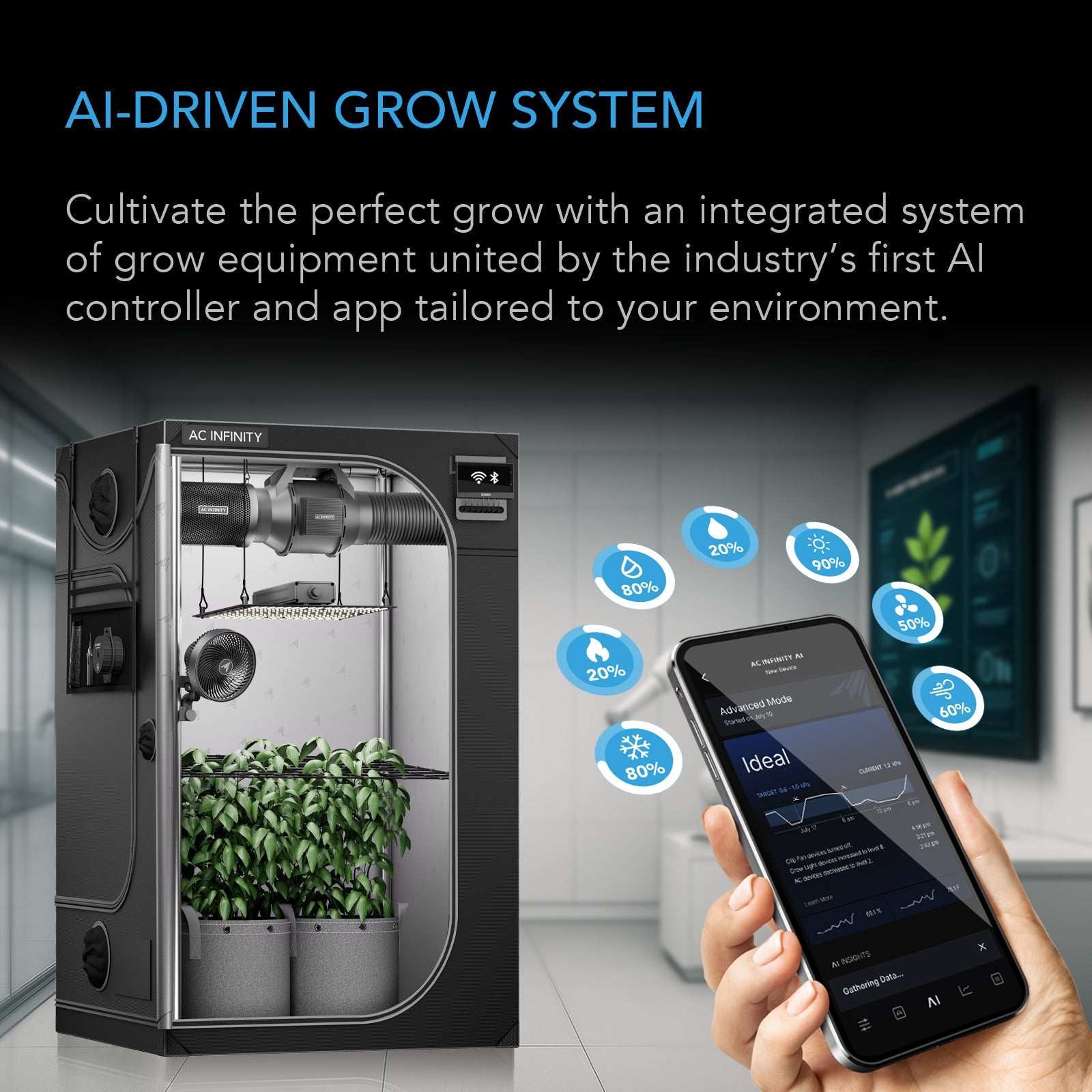

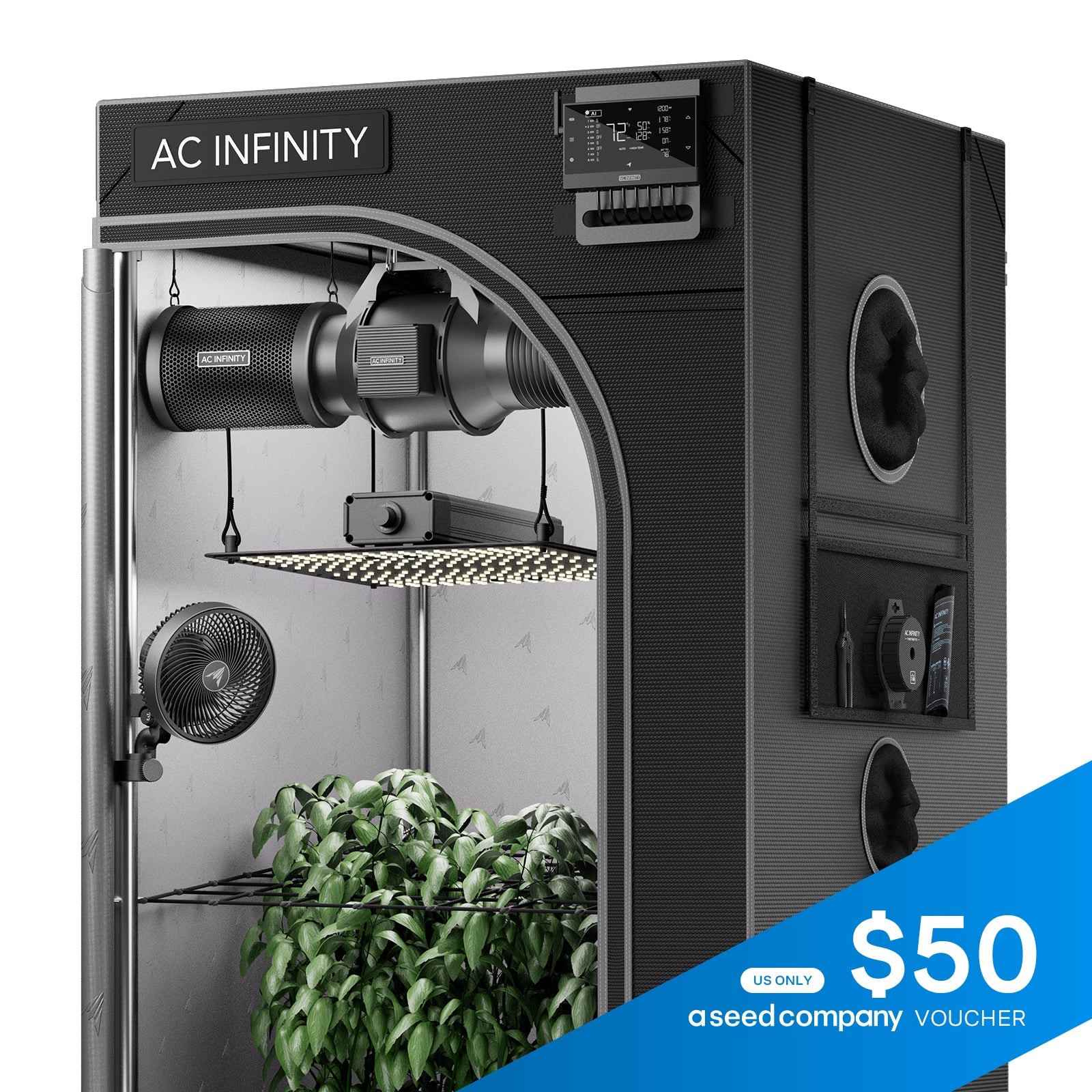

Product Description: Introducing the upgraded AI-powered grow tent system-engineered with a cutting-edge intelligent controller that autonomously manages your grow environment for peak performance and maximum yields. This next-generation system uses smart sensors and algorithms to dynamically maintain ideal temperature, humidity, and airflow, taking the guesswork out of indoor growing. The inline fan, carbon filter, and ducting system work seamlessly to regulate climate conditions, actively removing excess heat, humidity, and odors. the eco-friendly carbon filter is long-lasting, filled with Australian Virgin carbon rated at 1200+ IAV, and has a higher microporosity. Airflow is fine-tuned with a re-engineered oscillating clip fan, built with range control to deliver custom, targeted circulation that adapts to your plant's needs over time. At the heart of the system is a powerful LED grow light built with algorithmically arranged LM301H diodes, providing superior light output, higher efficiency, and broader coverage than LM301B, Bridgelux 3030, and other standard LEDs. All components are enclosed within an advanced high-density Oxford grow tent, reinforced with a durable steel frame, lab-tested reflective Mylar interior to create a stable climate-controlled growing environment featuring a large window to view your grow without disruption. With the power of AI now integrated, this grow tent system doesn't just support your grow-it thinks ahead for it.

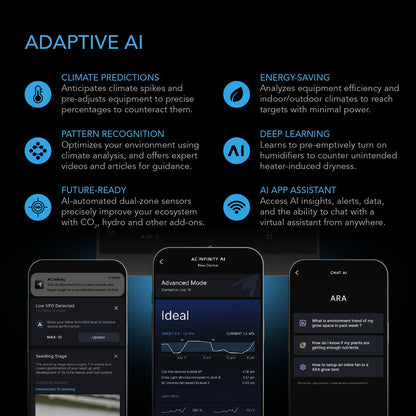

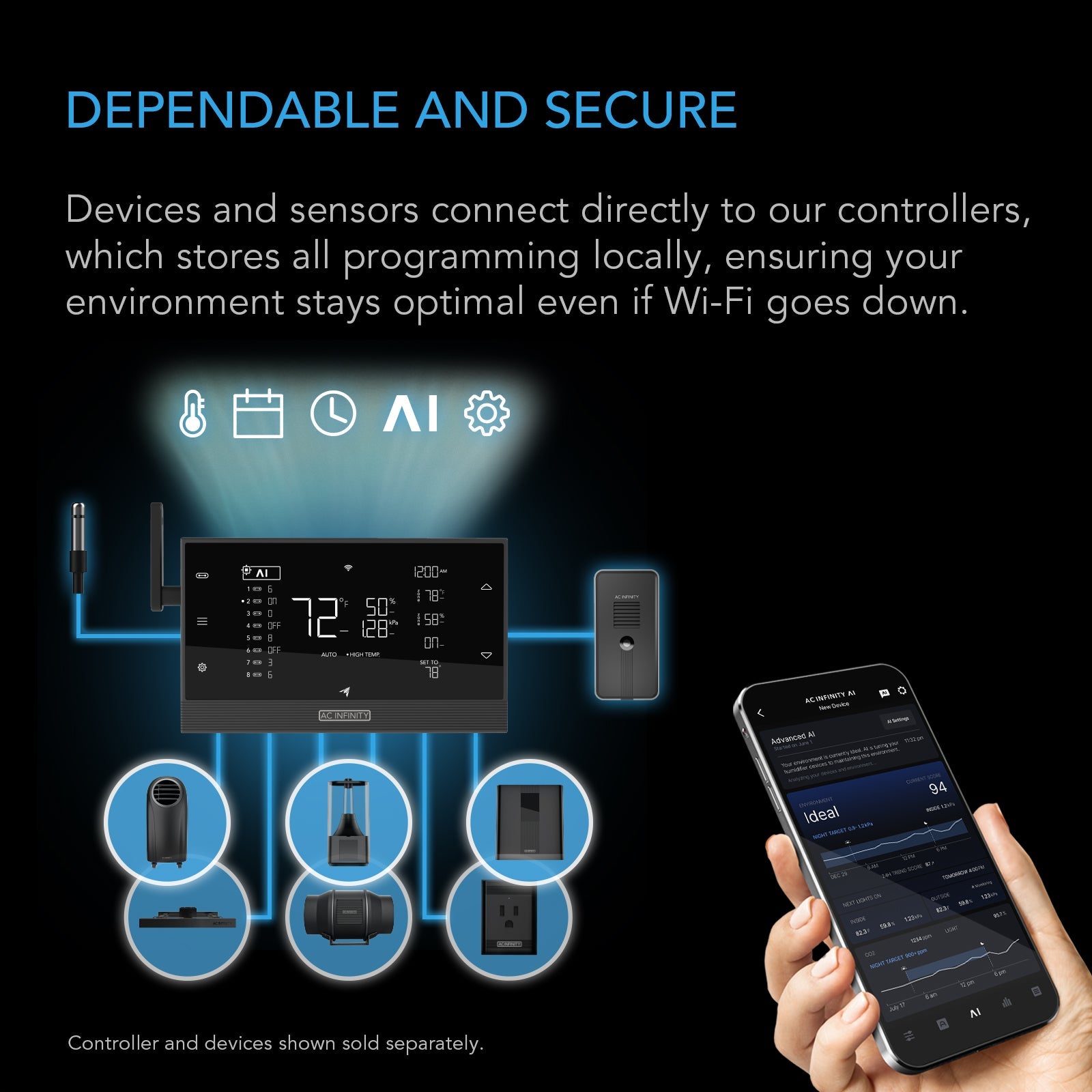

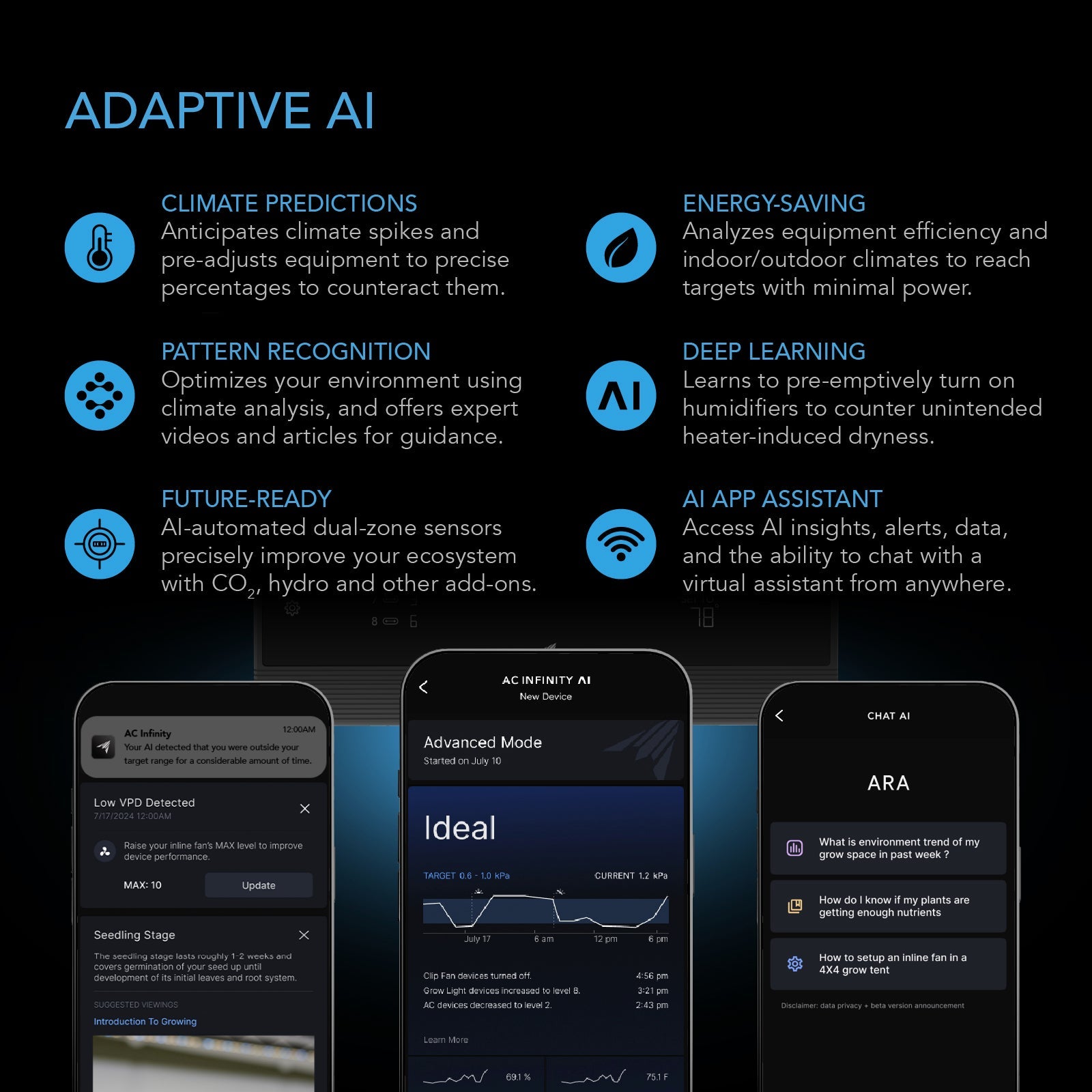

Intelligent Programming: The CONTROLLER AI+ observes your grow space, pairing with the inline fan, clip fan, and LED grow light, and makes environmental adjustments to ensure its stability. Going beyond on/off triggering and timer programming, it is always learning, analyzing previous results to avoid over- or undershooting output levels and better optimize your climate. Connect this controller to the AC Infinity app to select between two AI modes that adjust automatically or fine-tuned control for greater customization. You can also get access to helpful grow guides, recipes, articles, video tutorials, and chatbot assistance that will equip you with the knowledge to improve how you grow.

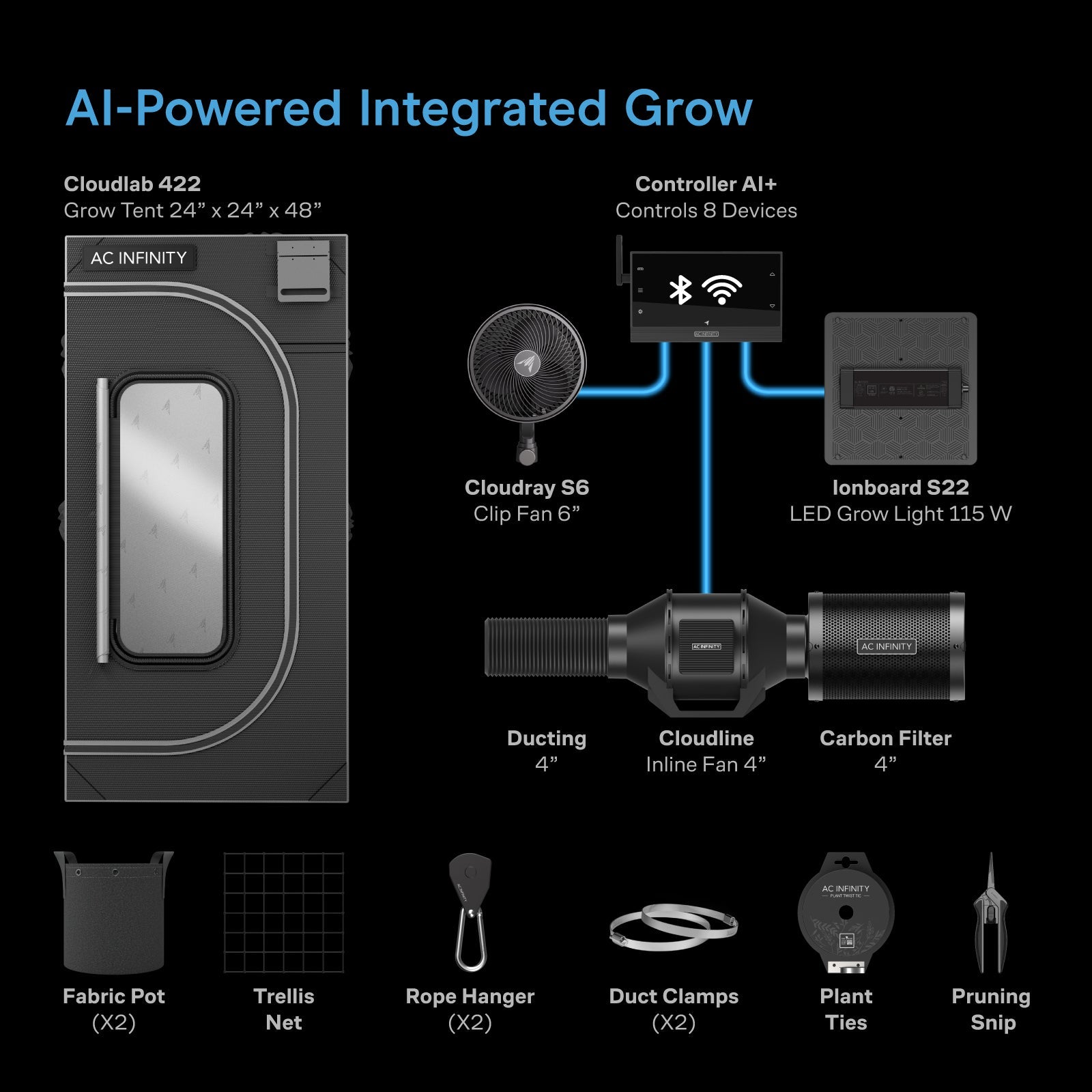

Complete Kit: This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually. The full grow tent kit includes the following:

CLOUDLAB 422 - Advance Grow Tent 24"x24"x48" (x1) 24"x24"x48" (x1)

CONTROLLER AI+ - Grow Tent Controller (x1)

CLOUDLINE 4 - Inline Fan 4" (x1)

IONBOARD S22 - LED Grow Light Board 2x2 (x1)

CLOUDRAY S6 - Oscillating Circulation Clip Fan (x1)

Carbon Filter 4" (x1)

4" Flexible Ducting, 8' Long (x1)

Hanging Straps (x2)

Rope Clip Hangers (x2)

4" Steel Clamps (x2)

Duct Tape (x1)

Hook and Loop Ties (x10)

UIS Male to Male Controller Cord (x1)

L-Shaped UIS Male to Male Controller Cord (x1)

5-gallon Fabric Pots (x2)

Elastic Trellis Netting 2x2' (x1)

Black Wire Twist Ties (x1)

Micro-tip Pruning Shears (x1)

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AI Grow System Compact 2x2

Product Model: AC-PKA22

UPC Code: 819137022829

Grow Tent | Inline Fan | Clip Fan | Controller | LED Grow Light | Carbon Filter | Ducting

Product and Mounting Dimensions - Grow Tent

Tent Dimensions: 23.62" x 23.62" x 47.24" (60.0 x 60.0 x 120.0 cm)

Duct Opening Sizes: 4-Inch (x4), 6-Inch (x3)

Viewing Window Size: 9.84 x 23.62 in. (25.0 x 60.0 cm)

Side Intake Window Size: 5.90 x 14.17 in. (15.0 x 36.0 cm)

Outer Tent Material: Oxford

Inner Tent Material: Mylar

Pole Material: Steel

Pole Thickness: 22 mm

Beam Weight Capacity: 250 lbs.

Hanging Bars: 2 (+1 Extra)

Plant Capacity: 1 Plant (5 gal.)

Product and Mounting Dimensions - Inline Fan

Duct Size: 4"

Total Dimensions: 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)

Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)

Screw Hole Diameter: 0.197 in. (0.5 cm)

Cord Length to Controller: 120 in. (10 feet)

Cord Length to Plug: 96 in. (8 feet)

Performance and Technical Specs - Inline Fan

Total Airflow: 165 CFM

Total Noise: 29 dBA

Max Speed: 2800 RPM

Static Pressure: 324 Pa

Voltage: 100-240V AC

Frequency: 50/60 Hz

Max Power Draw: 35 W

Average Power Usage: 18 W

Current: 0.55 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140 degrees F

Ingress Protection: IP-44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Product and Mounting Dimensions - Clip Fan

Impeller Size: 6.5"

Total Dimensions: 8.74 x 10.47 in. (22.2 x 26.6 cm)

Product Performance and Technical Specs - Clip Fan

Maximum Airflow: 325 CFM

Total Noise: 31 dBA

Static Pressure: 25 Pa

Operating Voltage: 100-240V AC

Power: 11 W

Current: 0.15 A

Waterproof Rating: IP-44

Rotation Range: 90 degrees

Tilt Angle: 55 degrees

Oscillation: Automatic Oscillation

Fan Bearings: Dual Ball Bearing

Life Expectancy: 67,000 Hours

Product and Mounting Dimensions - Controller

Total Dimensions: 5.8 x 3.42 x 0.94 in. (14.9 x 8.7 x 2.4 cm)

Display Size: 4.5 in.

Sensor Probe Length: 144 in. (12 feet)

Product Performance and Technical Specs - Controller

Maximum Devices Controlled: 8 (32 with Splitters)

Buttons: Capacitive Touch

Sensors Supported: 3 (1 Built In)

Onboard Sensor: Temperature and Humidity

Corded Sensor: Temperature and Humidity

Controller: Temperature Humidity VPD Controller

Power Source: Adapter

app-based control: Wi-Fi + Bluetooth

Wattage: 2 W Max

Voltage: 100 to 240V AC

Operating Temperature: 32 degrees to 140 degrees F

Operating Humidity: 35% to 85% RH

Product and Mounting Dimensions - LED Grow Light

Light Dimensions: 11.81 x 11.81 in. (30.0 x 30.0 cm)

LED Board Thickness: 0.43 in. (1.1 cm)

Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)

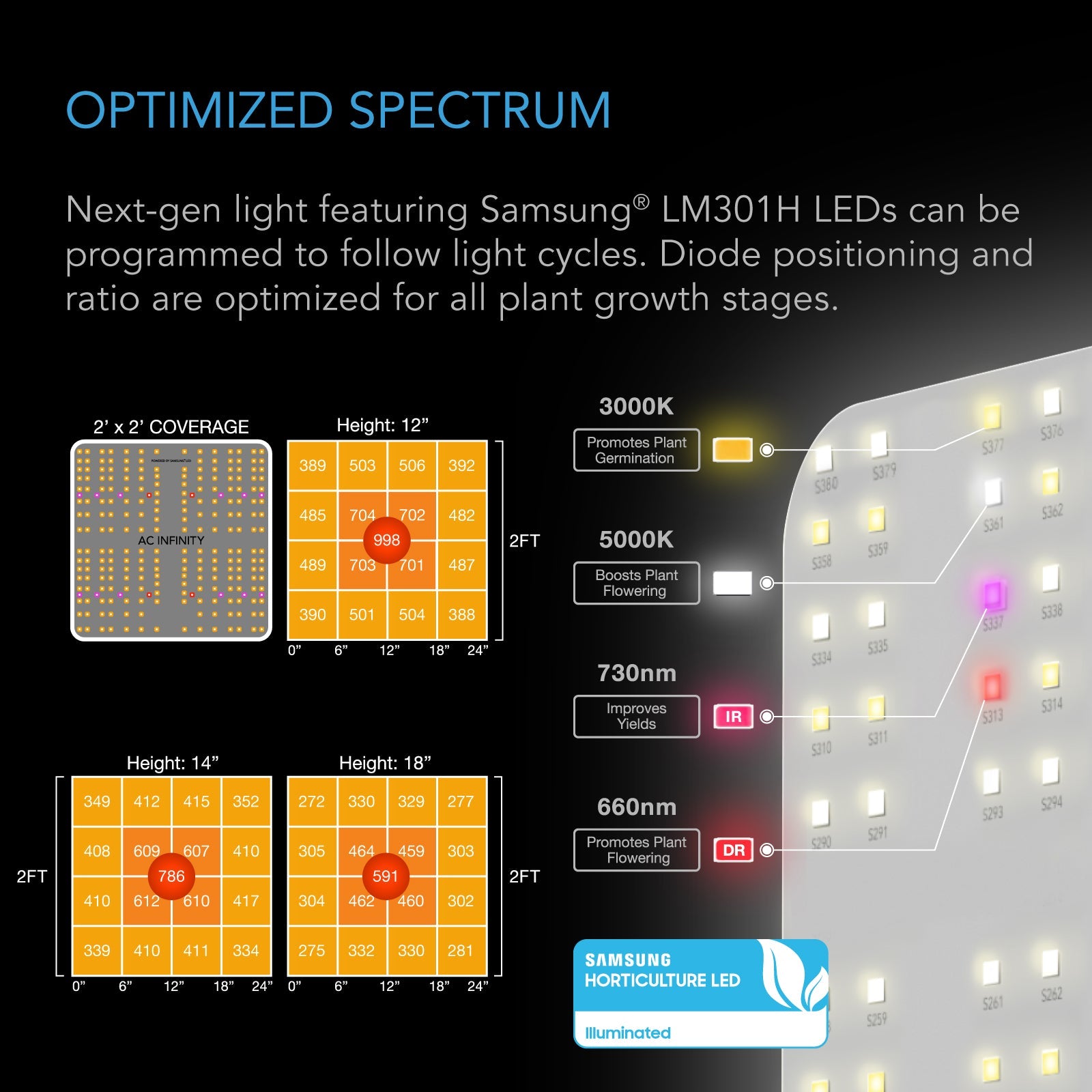

Product Performance and Technical Specs - LED Grow Light

Coverage: 2 x 2 ft.

Diodes: Samsung LM301H

LED Chip Count: 272

LED Driver: AC Infinity Proprietary Driver IB-150

Efficiency: 2.7 umol/j

PPFD: 998 PPFD

Spectrum: 660nm, 730nm, 3000K, 5000K

Wattage: 115 W

Voltage: 100-277V AC

Amps: 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V

Controller: Digital Dimming Timer

Life Expectancy: 50,000 Hours

Product and Mounting Dimensions - Carbon Filter

Duct Opening Size: 4"

Total Dimensions: 13.35 x 6.97 in. (33.3 x 17.7 cm)

Flange Length: 1.46 in. (3.7 cm)

Product Performance and Technical Specs - Carbon Filter

Flange Material: Aluminum

Flange Design: Reversible

Mesh Material: Galvanized Steel

Carbon Type: Australian Virgin RC412

Carbon Grade: 1200+ IAV

Carbon Thickness: 38mm

Maximum Airflow: 210 CFM

Product Dimensions - Ducting

Ducting Size: 4 in. (10.2 cm)

Length: 96 in. (8 ft)

Product Performance and Technical Specs - Ducting

Outer Layer: PVC Thermoplastic

Inner Material: Aluminum Foil

Internal Structure: Spiral Steel-Wire

Data Sheets

Download the user manual: here

Kit Contents

CLOUDLAB 422 - Advance Grow Tent (x1)

CONTROLLER 69 PRO - Grow Tent Controller (x1)

CLOUDLINE LITE A4 - Inline Fan (x1)

IONBOARD S22 - LED Grow Light Board (x1)

CLOUDRAY S6 - Oscillating Circulation Clip Fan (x1)

Carbon Filter 4" (x1)

4" Flexible Ducting, 8' Long (x1)

Hanging Straps (x2)

Rope Clip Hangers (x2)

4" Steel Clamps (x2)

5' Duct Tape (x1)

Hook and Loop Ties (x10)

6' UIS Male to Male Controller Cord (x1)

6' L-Shaped UIS Male to Male Controller Cord (x1)

5-gallon Fabric Pots (x2)

Elastic Trellis Netting 2x2' (x1)

Black Wire Twist Ties (x1)

Micro-tip Pruning Shears (x1)
