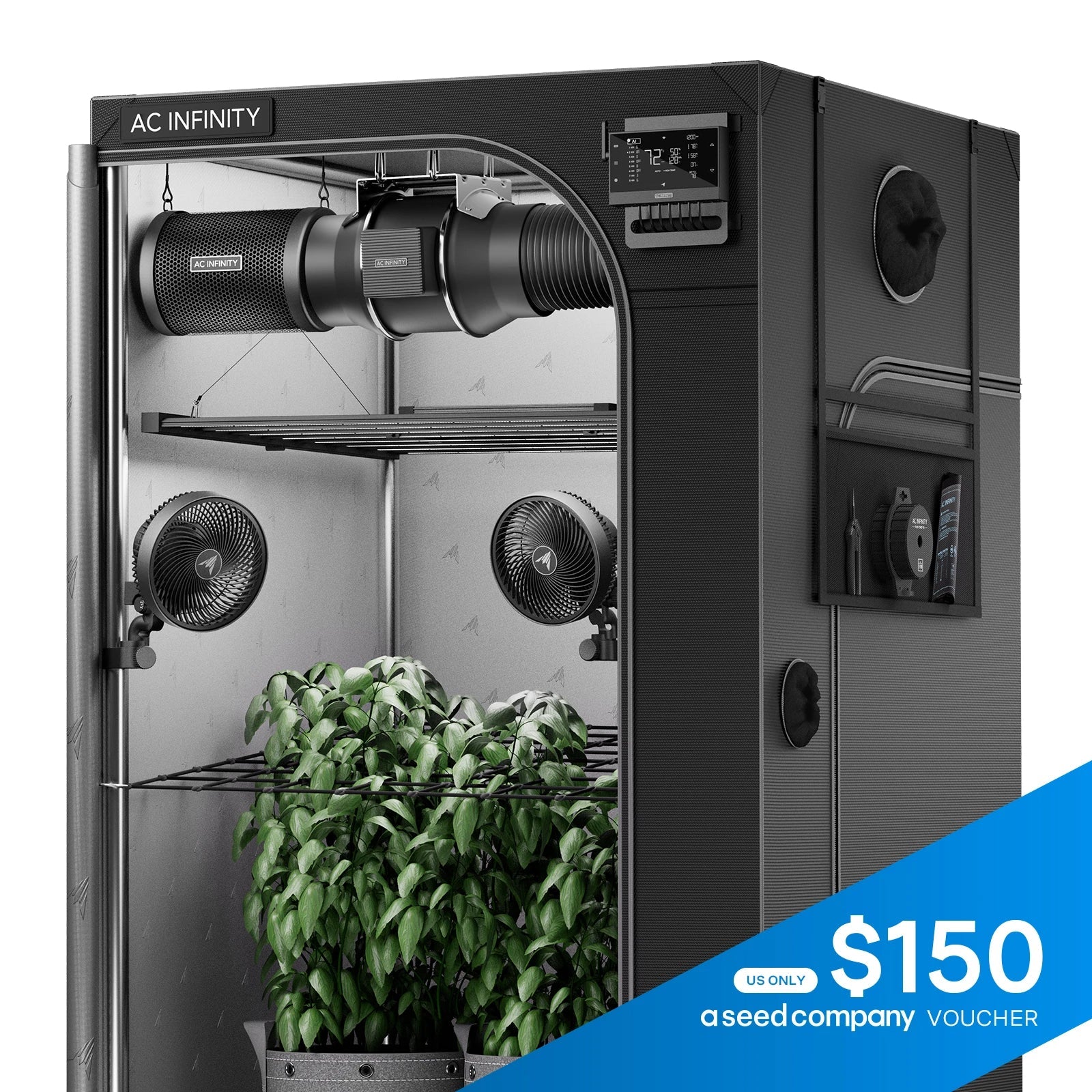

AC Infinity Advance Grow Tent System PRO 4x4, 4-Plant Kit, WiFi-Integrated Controls to Automate Ventilation, Circulation, Full Spectrum LM301H EVO LED Grow Light

Description

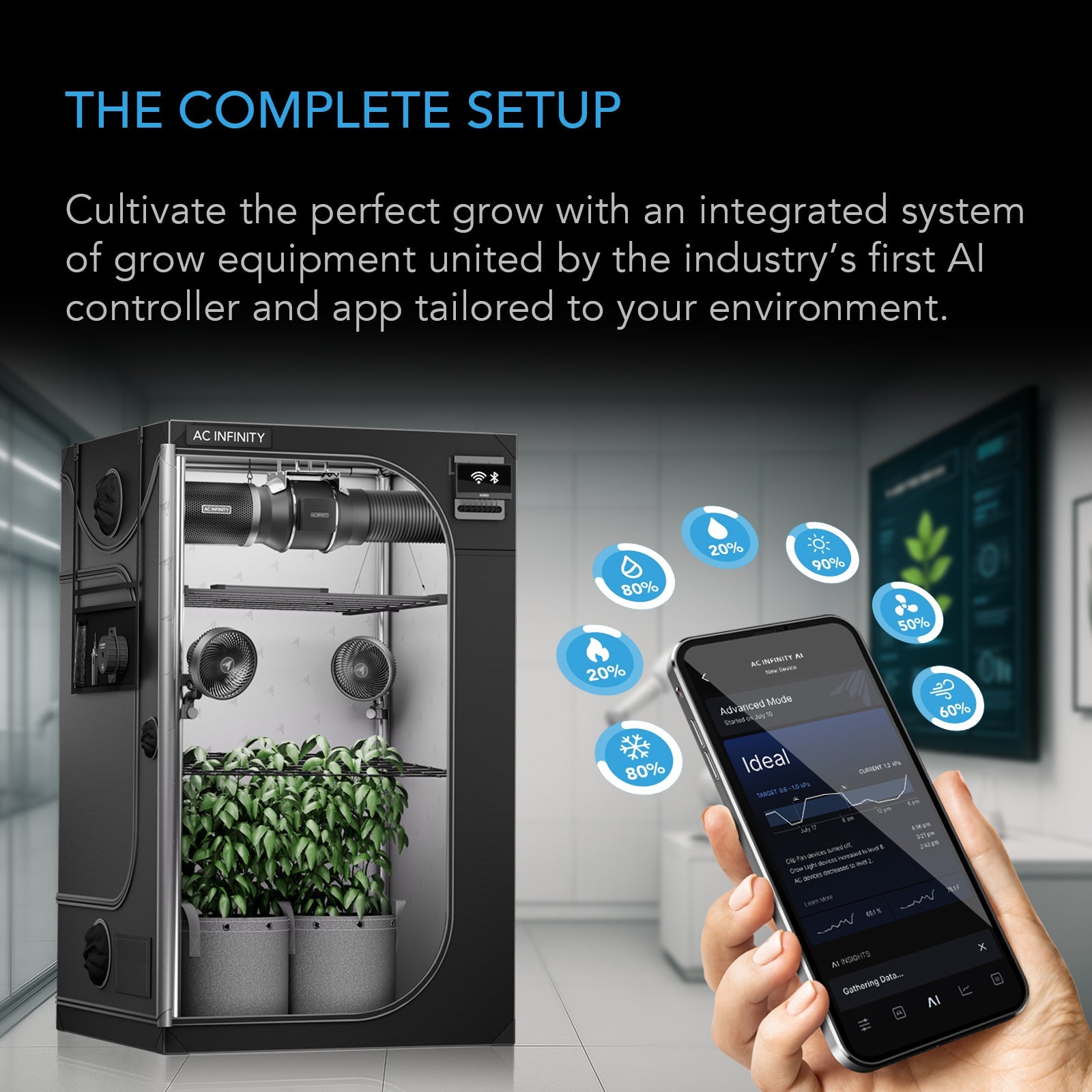

AI-driven controller predicts climate shifts using real-time and historical data, auto-adjusting connected devices for optimal grow conditions.

Connect this controller to the Wi-Fi app for access to real-time AI insights, guides, chatbot, and more from anywhere.

EC inline fan 6", oscillating clip fan 6", and 4x4 full-spectrum bar grow light with Samsung LM301H EVO LEDs.

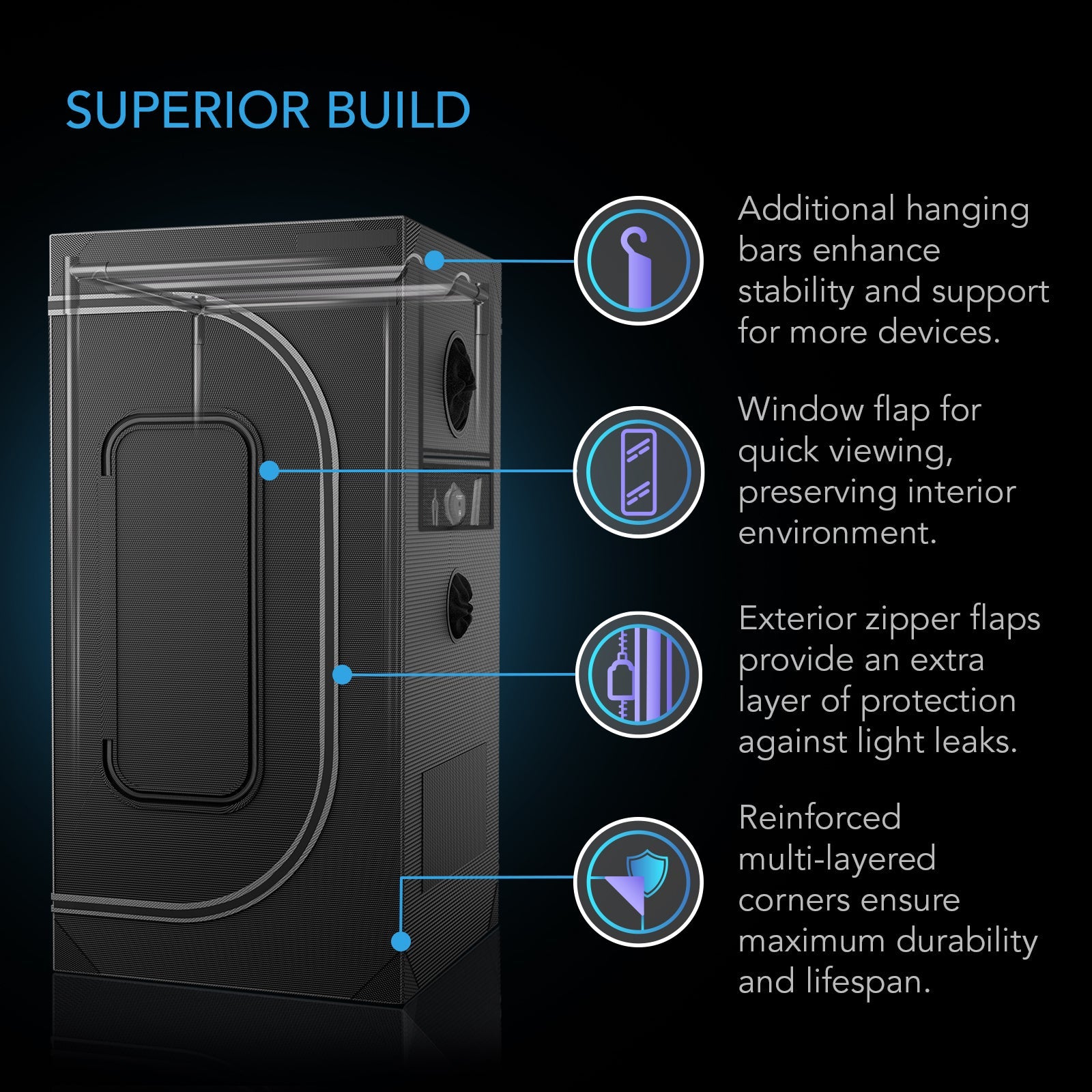

Advanced grow tent designed with lab-tested reflective mylar for maximum light efficiency, taller windows for clear visibility, and enhanced light-blocking technology.

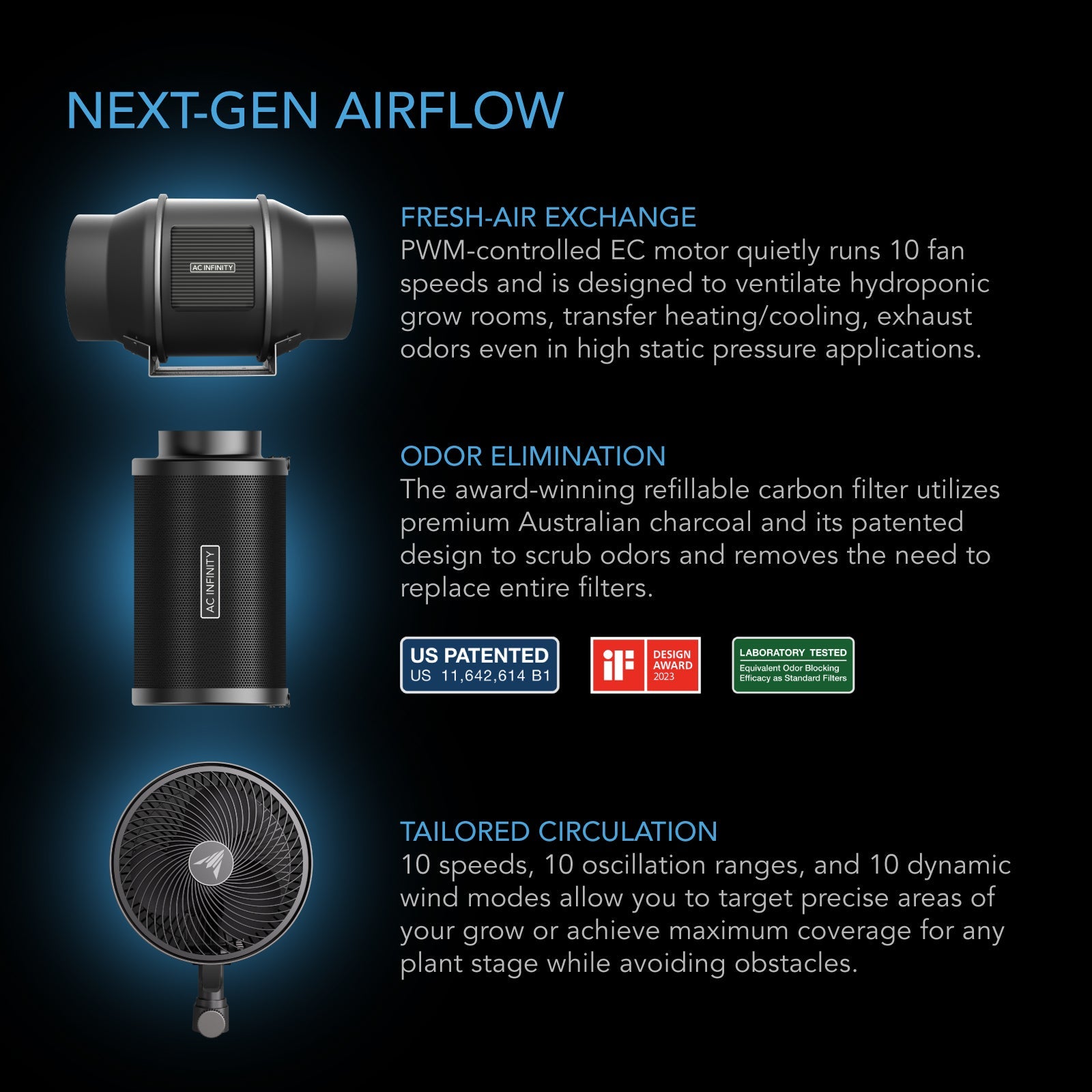

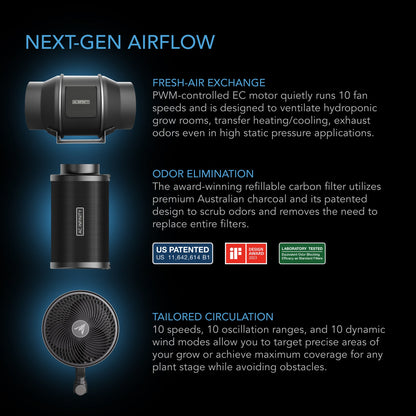

Product Description: An advance grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, refillable carbon filter, and ducting manage your tent's climate conditions by routing heat, humidity, and odor away from it. The highly innovative carbon filter features a patented, eco-friendly design that eliminates the need to replace your entire filter. Air is circulated through the next-gen clip fan with oscillation range control, re-engineered to provide tailored, custom airflow to your plants over a longer period of time. Algorithmically arranged LM301H EVO diodes on the grow light frame emit powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These Samsung LEDs are the best in their class, delivering higher light intensity and greater efficiency per diode than LM301H, LM301B, Bridgelux 3030, and other popular LEDs. The devices are housed in a high-density oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.

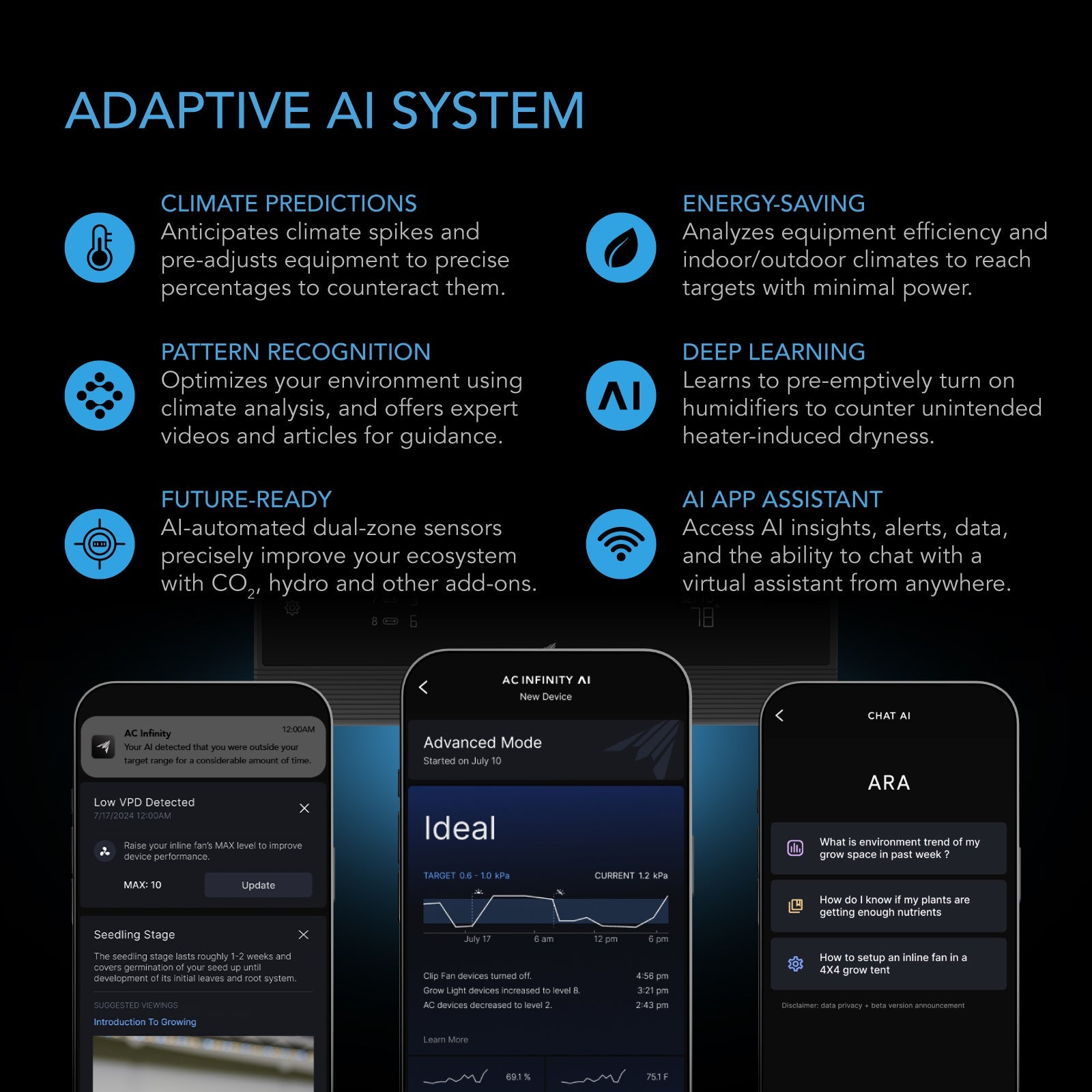

Intelligent Programming: Integrating these components is the CONTROLLER AI+ that observes your grow space, pairing with the inline fan, clip fan, and LED grow light, and makes environmental adjustments to ensure its stability. Going beyond on/off triggering and timer programming, it is always learning, analyzing previous results to avoid over or undershooting output levels and better optimize your climate. Connect this controller to the AC Infinity app to select between two AI inputs that adjust automatically or fine-tuned control for greater customization. You can also get access to helpful grow guides, recipes, articles, video tutorials, and chatbot assistance that will equip you with the knowledge to improve how you grow.

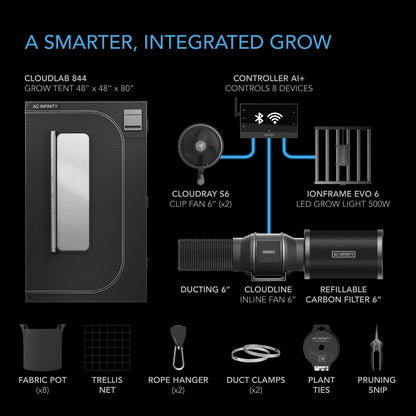

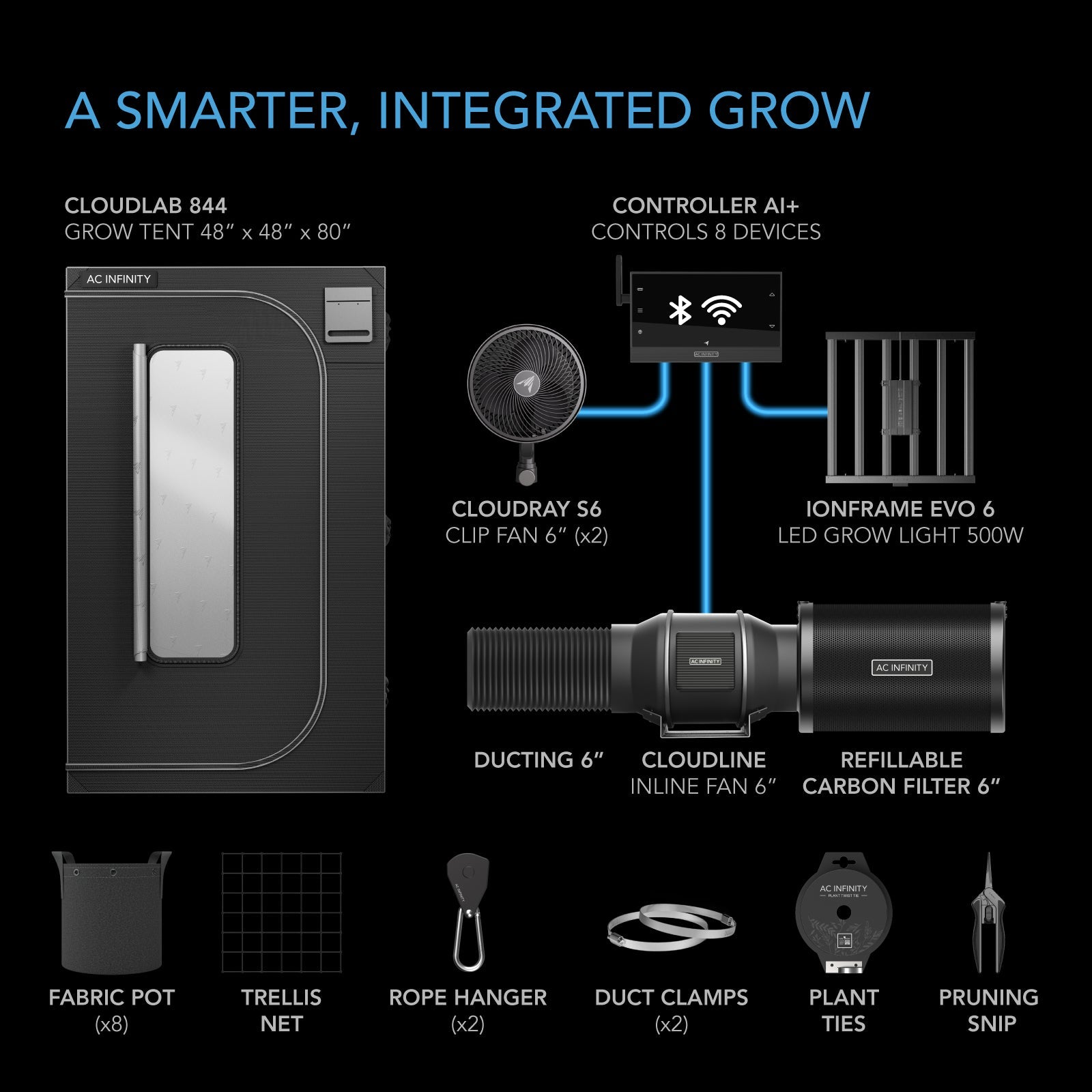

Complete Kit: This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually. The full grow tent kit will include the following:

CLOUDLAB 844 - Advance Grow Tent 48"x48"x80" (x1)

CONTROLLER AI+ - Grow Tent Controller (x1)

CLOUDLINE PRO - Inline Fan 6" (x1)

IONFRAME EVO6 - Commercial Bar LED Grow Light 4x4 (x1)

CLOUDRAY S6 - Oscillating Circulation Clip Fan (x2)

Refillable Carbon Filter 6" (x1)

6" Flexible Ducting, 8' Long (x1)

6" Steel Clamps (x2)

Duct Tape (x1)

Hook and Loop Ties (x10)

5-gallon Fabric Pots (x8)

Elastic Trellis Netting 4x4' (x1)

Black Wire Twist Ties (x1)

Micro-tip Pruning Shears (x1)

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AI Grow System PRO 4x4

Product Model: AC-PKC44

UPC Code: 819137024335

Grow Tent | Inline Fan | Clip Fan | Controller | LED Grow Light | Carbon Filter | Ducting

Product and Mounting Dimensions - Grow Tent

Tent Dimensions: 47.24" x 47.24" x 78.74" (120.0 x 120.0 x 200.0 cm)

Duct Opening Sizes: 4-Inch (x4), 8-Inch (x5)

Viewing Window Size: 13.78 x 47.24 in. (35.0 x 120.0 cm)

Rear Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)

Side Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)

Product Performance and Technical Specs - Grow Tent

Outer Tent Material: Oxford

Inner Tent Material: Mylar

Pole Material: Steel

Pole Thickness: 22 mm

Beam Weight Capacity: 250 lbs.

Hanging Bars: 3 (+1 Extra)

Plant Capacity: 4 Plants (5 gal.)

Product and Mounting Dimensions - Inline Fan

Duct Size: 6"

Total Dimensions: 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)

Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)

Screw Hole Diameter: 0.236 in. (0.6 cm)

Cord Length to Controller: 120 in. (10 feet)

Cord Length to Plug: 96 in. (8 feet)

Performance and Technical Specs - Inline Fan

Total Airflow: 402 CFM

Total Noise: 32 dBA

Static Pressure: 503 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 70 W

Average Power Usage: 38 W

Current: 0.94 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140 degrees F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

Life Expectancy: 67,000 Hours

Product and Mounting Dimensions - Clip Fan

Impeller Size: 6.5"

Total Dimensions: 8.74 x 10.47 in. (22.2 x 26.6 cm)

Product Performance and Technical Specs - Clip Fan

Maximum Airflow: 325 CFM

Total Noise: 31 dBA

Static Pressure: 25 Pa

Operating Voltage: 100-240V AC

Power: 11 W

Current: 0.15 A

Waterproof Rating: IP-44

Rotation Range: 90 degrees

Tilt Angle: 55 degrees

Oscillation: Automatic Oscillation

Fan Bearings: Dual Ball Bearing

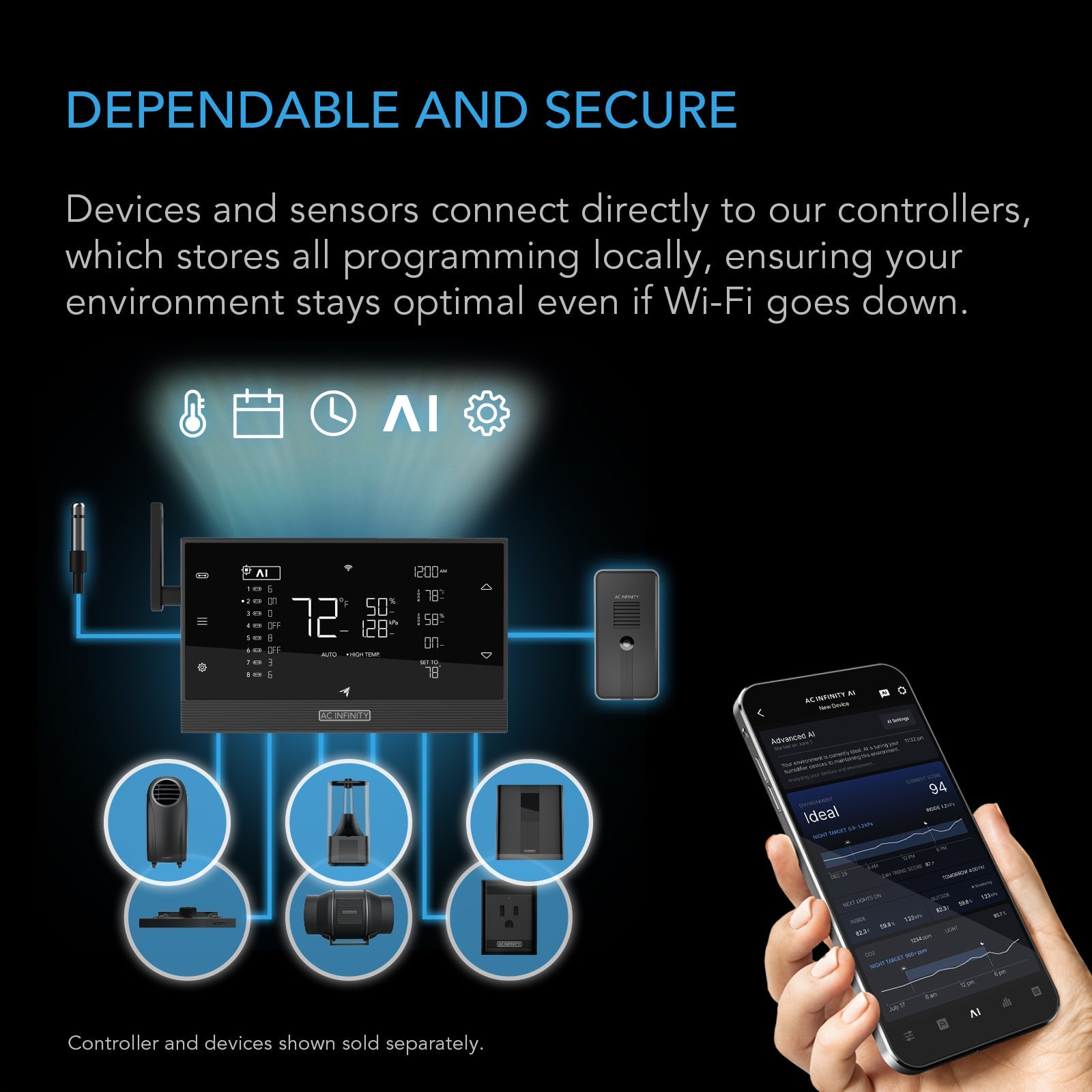

Product and Mounting Dimensions - Controller

Total Dimensions: 5.8 x 3.42 x 0.94 in. (14.9 x 8.7 x 2.4 cm)

Display Size: 4.5 in.

Sensor Probe Length: 144 in. (12 feet)

Maximum Devices Controlled: 8 (32 with Splitters)

Buttons: Capacitive Touch

Sensors Supported: 3 (1 Built In)

Onboard Sensor: Temperature and Humidity

Corded Sensor: Temperature and Humidity

Controller: Temperature Humidity VPD Controller

Power Source: Adapter

app-based control: Wi-Fi + Bluetooth

Wattage: 2 W Max

Voltage: 100 to 240V AC

Operating Temperature: 32 degrees to 140 degrees F

Operating Humidity: 35% to 85% RH

Product and Mounting Dimensions - LED Grow Light

Light Dimensions: 32.28 x 32.67 x 3.38 in. (82.0 x 83.0 x 8.6 cm)

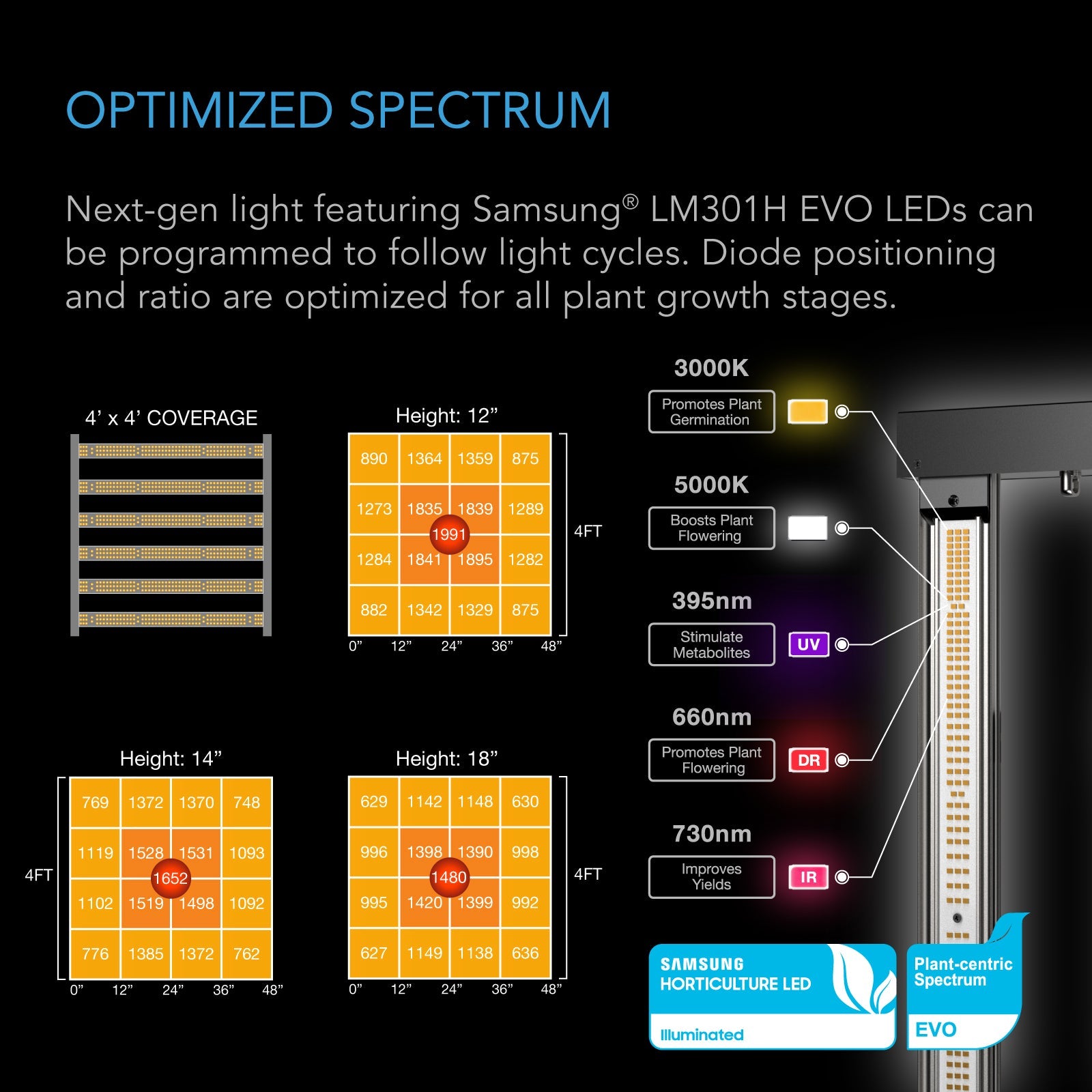

Product Performance and Technical Specs - LED Grow Light

Coverage: 4 x 4 ft.

Diodes: Samsung LM301H EVO

Spectrum: 395nm, 660nm, 730nm, 3000K, 5000K

Chip Count (Total): 1680

Chip Count (EVO 3000K): 1074

Chip Count (EVO 5000K): 540

Chip Count (Seoul 395 nm): 6

Chip Count (OSRAM 660 nm): 54

Chip Count (OSRAM 730 nm): 6

LED Driver: SOSEN-500W

Efficiency (Single Diode): 3.14 umol/J

PPFD: 1991 PPFD

Wattage: 500 W

Voltage: 100-277V AC

Frequency: 50/60 Hz

Amps: 5.0 A

Waterproof Rating: IP-65

Life Expectancy: 50,000 Hours

Product and Mounting Dimensions - Carbon Filter

Duct Opening Size: 6"

Total Dimensions: 15.94 x 8.93 in. (40.5 x 22.7 cm)

Flange Length: 1.57 in. (4.0 cm)

Product Performance and Technical Specs - Carbon Filter

Flange Material: Aluminum

Flange Design: Reversible

Mesh Material: Rust-Resistant Galvanized Steel with Gunmetal Finish

Carbon Type: Australian Virgin RC412

Carbon Grade: 1200+ IAV

Carbon Thickness: 38mm

Maximum Airflow: 410 CFM

Product Dimensions - Ducting

Ducting Size: 6 in. (15.2 cm)

Length: 96 in. (8 ft)

Product Performance and Technical Specs - Ducting

Outer Layer: PVC Thermoplastic

Inner Material: Aluminum Foil

Internal Structure: Spiral Steel-Wire

Data Sheets

Download the user manual: here

Kit Contents

This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually.

The full grow tent kit will include the following:

CLOUDLAB 844 - Advance Grow Tent 48"x48"x80" (x1)

CONTROLLER 69 PRO - Grow Tent Controller (x1)

CLOUDLINE PRO 6 - Inline Fan 6"" (x1)

IONFRAME EVO6 - Commercial Bar LED Grow Light 500W (x1)

CLOUDRAY S6 - Oscillating Circulation Clip Fan (x2)

Refillable Carbon Filter 6" (x1)

6" Flexible Ducting, 8' Long (x1)

Hanging Straps (x2)

Rope Clip Hangers (x2)

6" Steel Clamps (x2)

Duct Tape (x1)

Hook and Loop Ties (x10)

UIS Male to Male Controller Cord (x1)

L-Shaped UIS Male to Male Controller Cord (x1)

5-gallon Fabric Pots (x8)

Elastic Trellis Netting 4x4' (x1)

Black Wire Twist Ties (x1)

Micro-tip Pruning Shears (x1)
