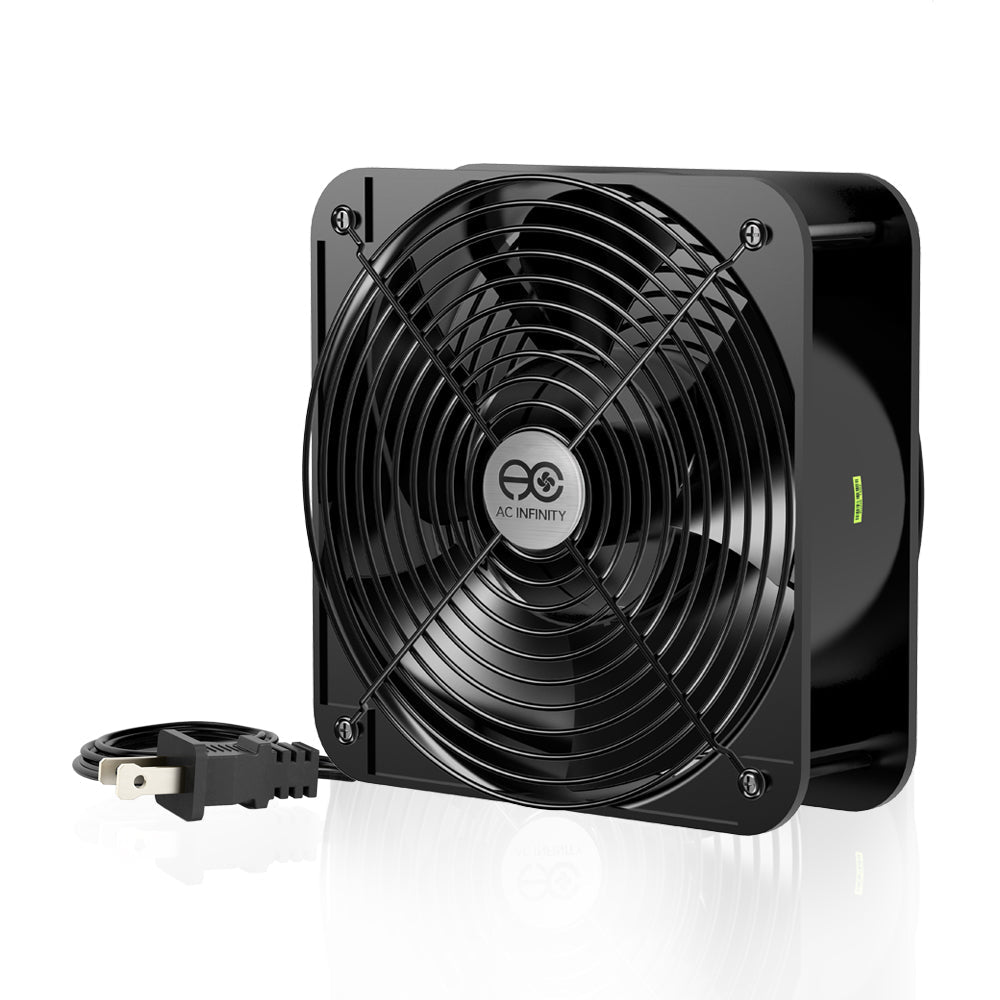

AC Infinity AXIAL 2060, Muffin 120V AC Cooling Fan, 200mm x 200mm x 60mm

AC Infinity AXIAL 2060, Muffin 120V AC Cooling Fan, 200mm x 200mm x 60mm

$71.99 USD
$0.00 USD $71.99 USD
Sale Sold out
Shipping calculated at checkout.
Description

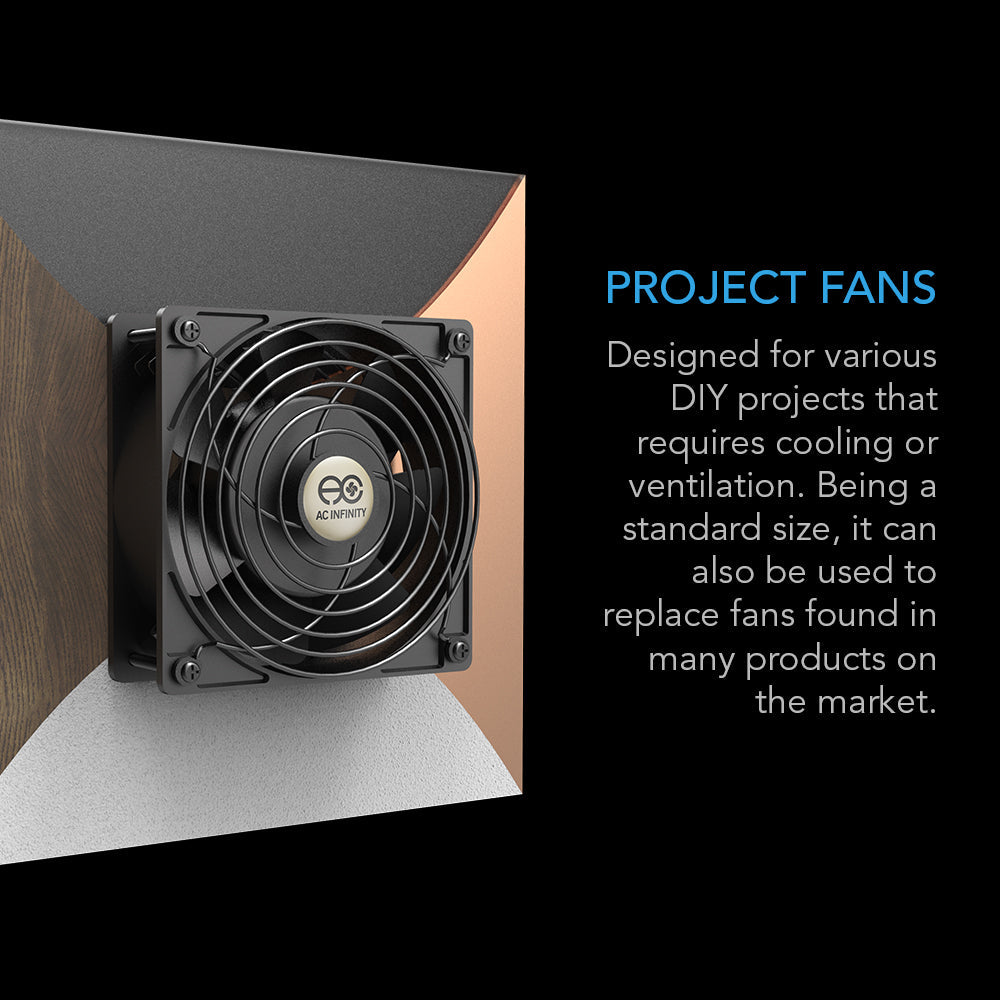

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 2060
  • Product Model: HS2060A-X
  • UPC Code: 819137021402
  • Product Dimensions

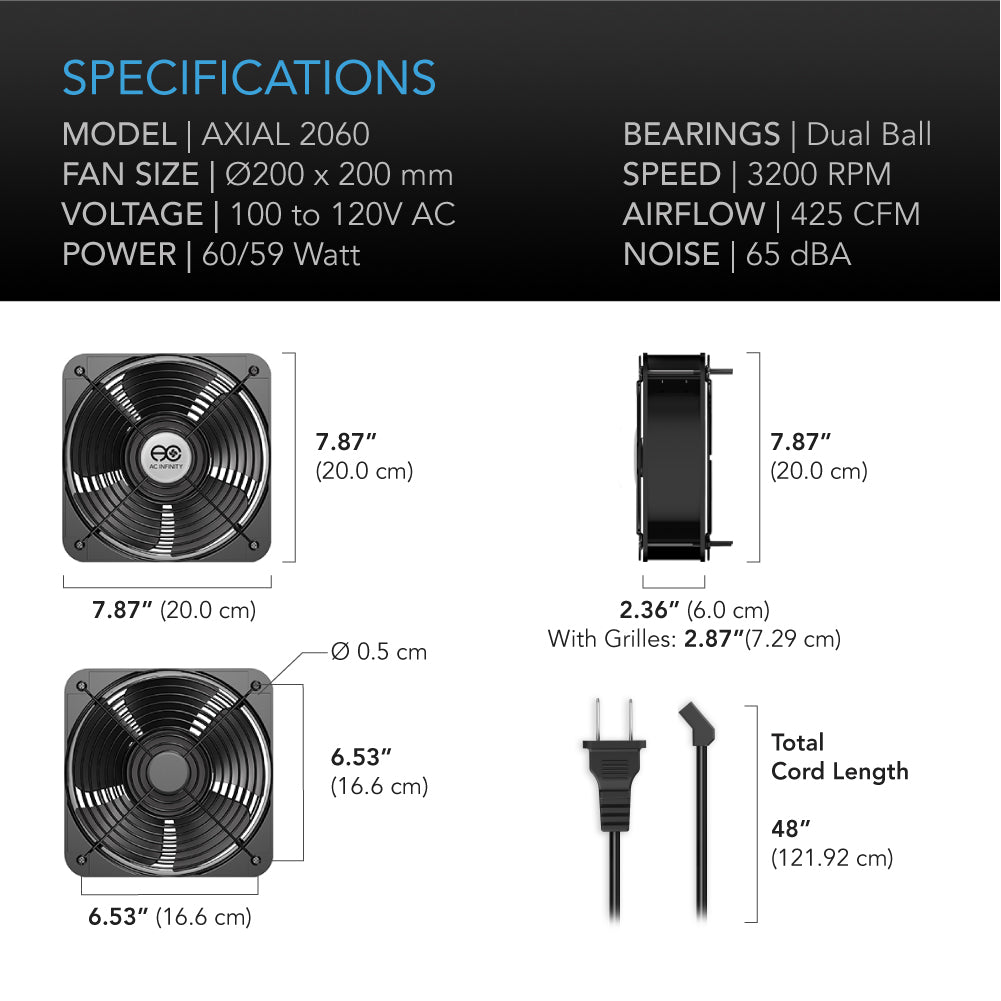

  • Total Dimensions: 7.87 x 7.87 x 2.36 in. (20.0 x 20.0 x 6.0 cm)
  • Hole to Hole Distance: 6.53 x 6.53 in. (16.6 x 16.6 cm)
  • Screw Hole Diameter: 0.19 in. (0.5 cm)
  • Cord Length: 48 in. (4 feet)
  • Fan Model: HS2060A
  • Total Airflow: 425 CFM
  • Total Noise: 65 dBA
  • Speed: 3200 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 60 W
  • Current: 0.85 A
  • Static Pressure: 17.0 mm-H2O
  • Operating Humidity: 20 to 85% RH
  • Operating Temperature: 32 to 140 degrees F
  • Fan Bearings: Dual Ball
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the user manual: here

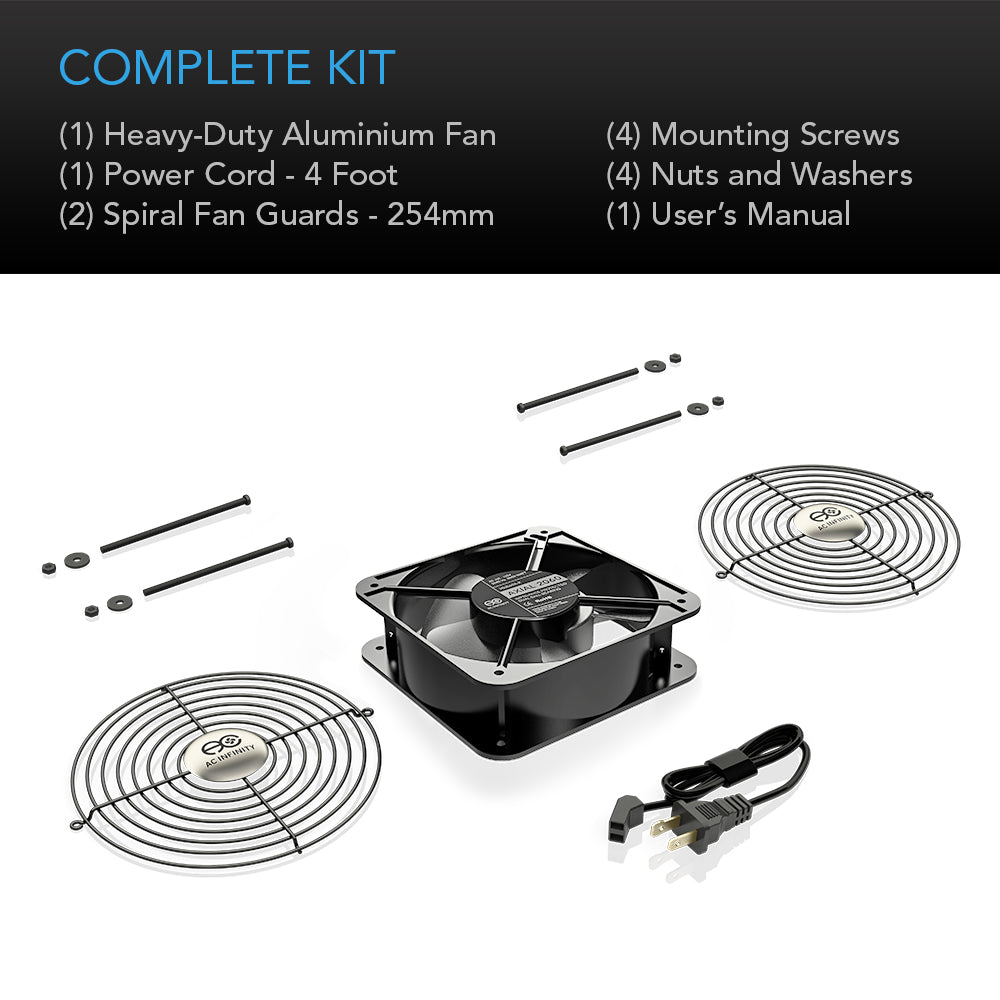

    • Kit Contents
  • a heavy-duty aluminum fan with power plug cord
  • two fan guards
  • and mounting screw set.

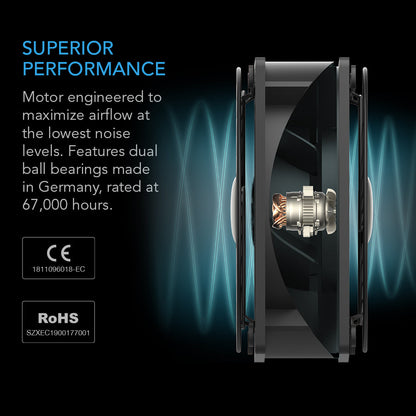

  • Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • 200 x 200 x 60 mm (7.87 x 7.87 x 2.36 in.) | 100 to 120V AC | Airflow: 425 CFM | Noise: 65 dBA | Speed: 3200 RPM
  • Product Description: The heavy duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4 foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and be converted into lead wires to be connected to a wired AC power source. Also includes two 200 millimeter metal fan guards and a mounting screw set.

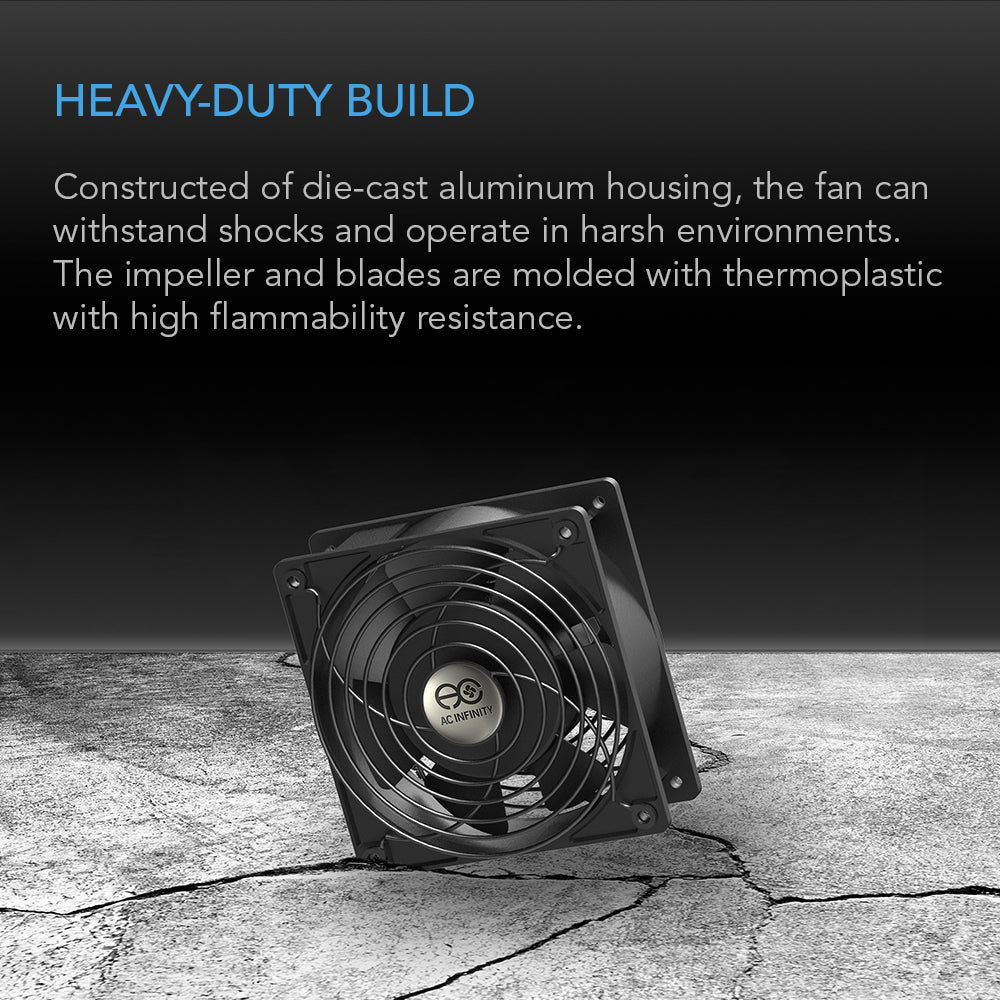

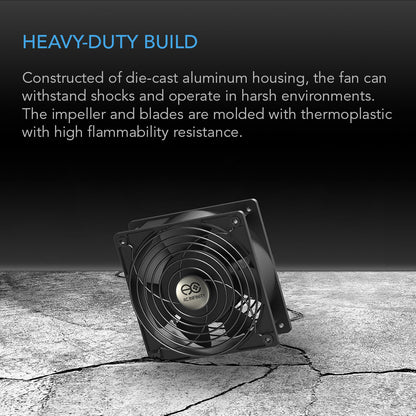

  • Heavy Duty Construction: The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. Impedance protected motors contain windings that has a higher resistance to heat during a rotor lock. Containing long life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.
  • Applications: This high-speed fan is suitable in applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various Samsung and Eaton servers and UPS systems.
    •
