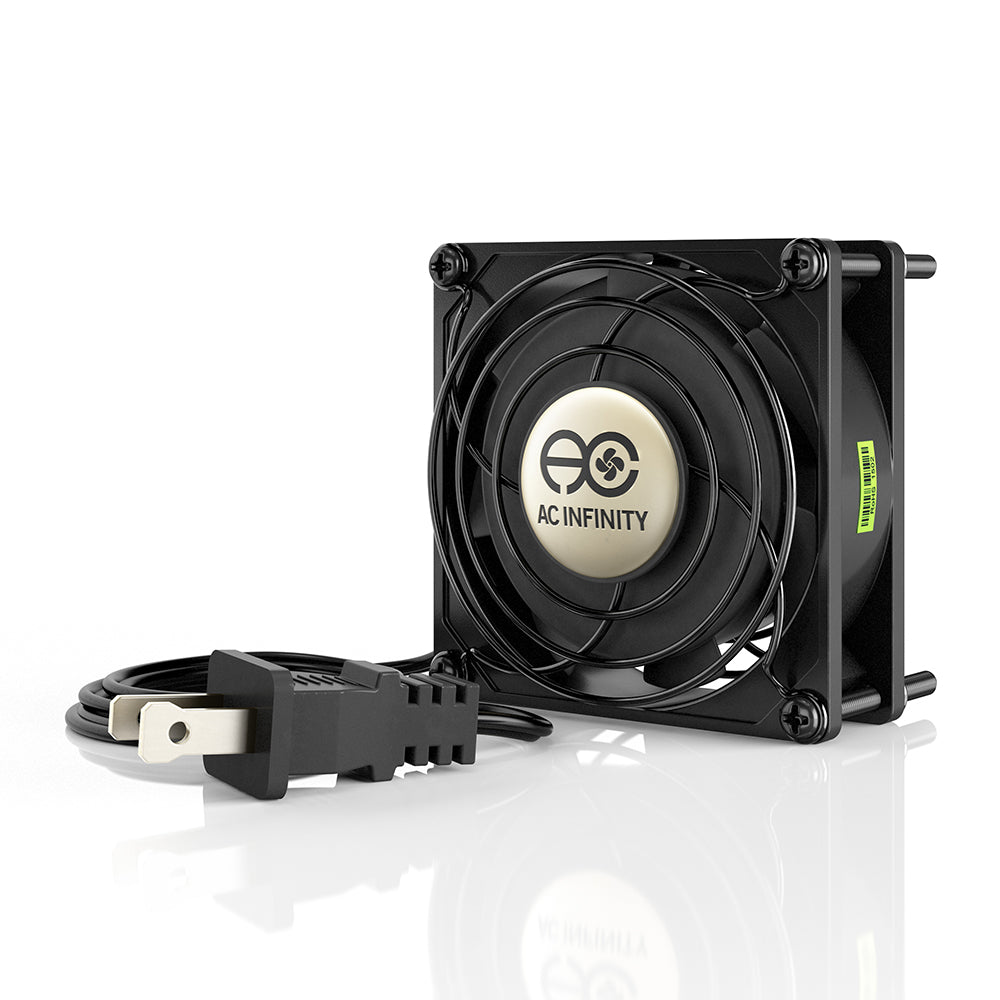

AC Infinity AXIAL 8025, Muffin 120V AC Cooling Fan, 80mm x 80mm x 25mm

AC Infinity AXIAL 8025, Muffin 120V AC Cooling Fan, 80mm x 80mm x 25mm

$40.99 USD
$0.00 USD $40.99 USD
Sale Sold out
Shipping calculated at checkout.
Description
  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 8025
  • Product Model: HS8025A-X
  • UPC Code: 854759004259

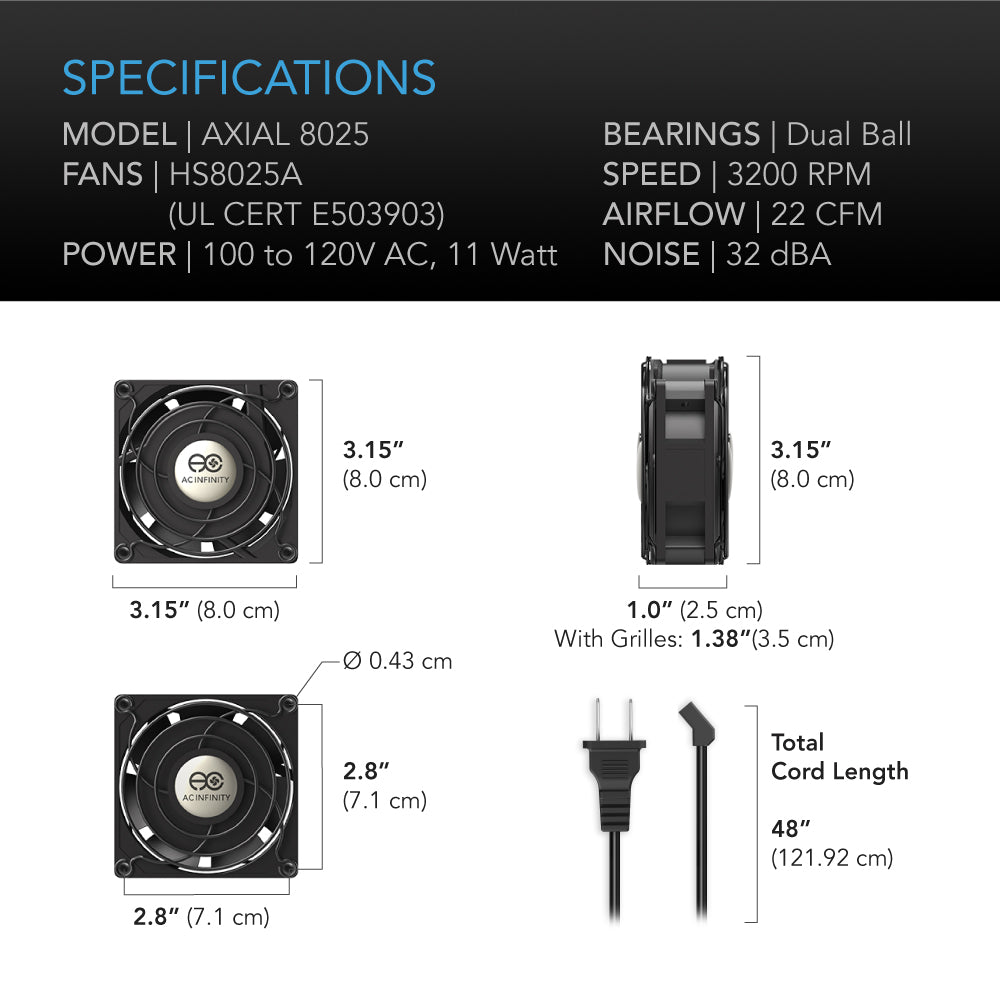

  • Product Dimensions
  • Total Dimensions: 3.15 x 3.15 x 1 in. (8.0 x 8.0 x 2.5 cm)
  • Hole to Hole Distance: 2.8 x 2.8 in. (7.1 x 7.1 cm)
  • Screw Hole Diameter: 0.17 in. (0.4 cm)
  • Cord Length: 48 in. (4 feet)
  • Fan Model: HS8025A
  • Total Airflow: 22 CFM
  • Total Noise: 32 dBA
  • Speed: 3200 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 11 W
  • Current: 0.1 A
  • Static Pressure: 6.4 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140 degrees F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the data sheet: here
  • Download the user manual: here

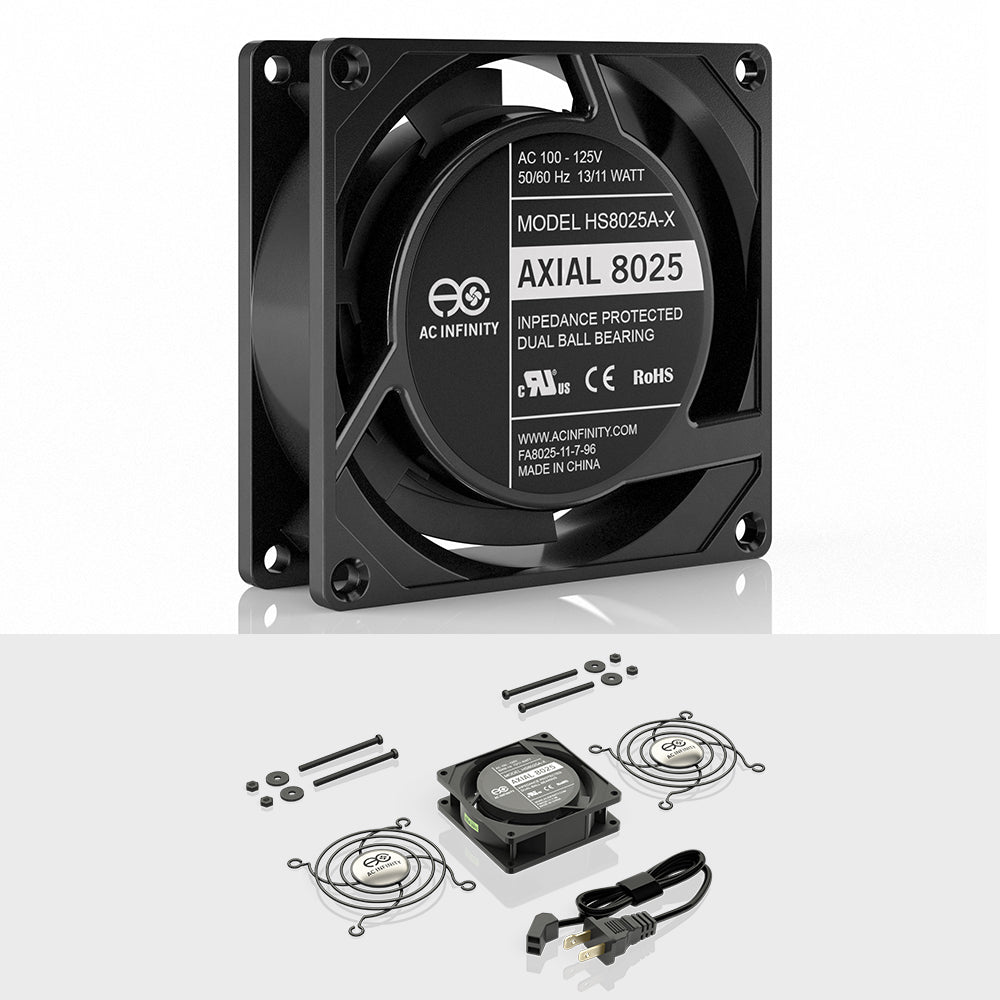

    • Kit Contents
  • a heavy-duty aluminum fan with power plug cord
  • two fan guards
  • and mounting screw set.
  • UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours. Can be mounted in any direction.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • 80 x 80 x 25 mm (3.2 x 3.2 x 1 in.) | 100 to 120V AC | Airflow: 22 CFM | Noise: 32 dBA | Speed: 3200 RPM
  • Product Description: The heavy duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4 foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and be converted into lead wires to be connected to a wired AC power source. Also includes two 80 millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903, and also CE and RoHS certified.
  • Heavy Duty Construction: The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. Impedance protected motors contains windings that have a higher resistance to heat during a rotor lock. Containing long life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.
  • Applications: This high speed fan is suitable in applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include casino machines, chicken coops, industrial machinery, arcade systems, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various electronics and machinery.
    •
