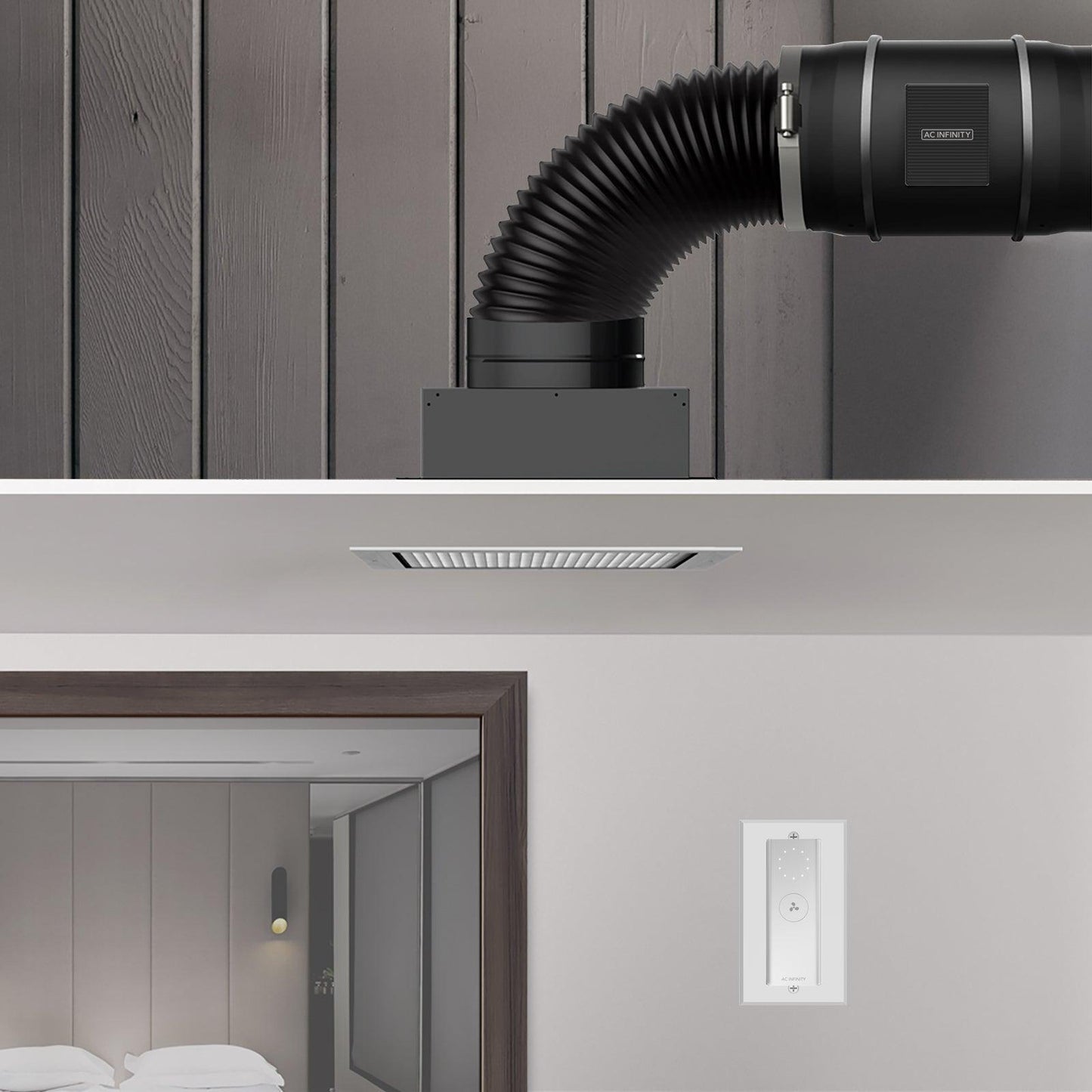

AC Infinity CLOUDWAY S10, Whole House EC Fan, 1200 CFM, Energy Efficient with Wireless Controller

AC Infinity CLOUDWAY S10, Whole House EC Fan, 1200 CFM, Energy Efficient with Wireless Controller

$449.00 USD
$0.00 USD $449.00 USD
Sale Sold out
Shipping calculated at checkout.
Description

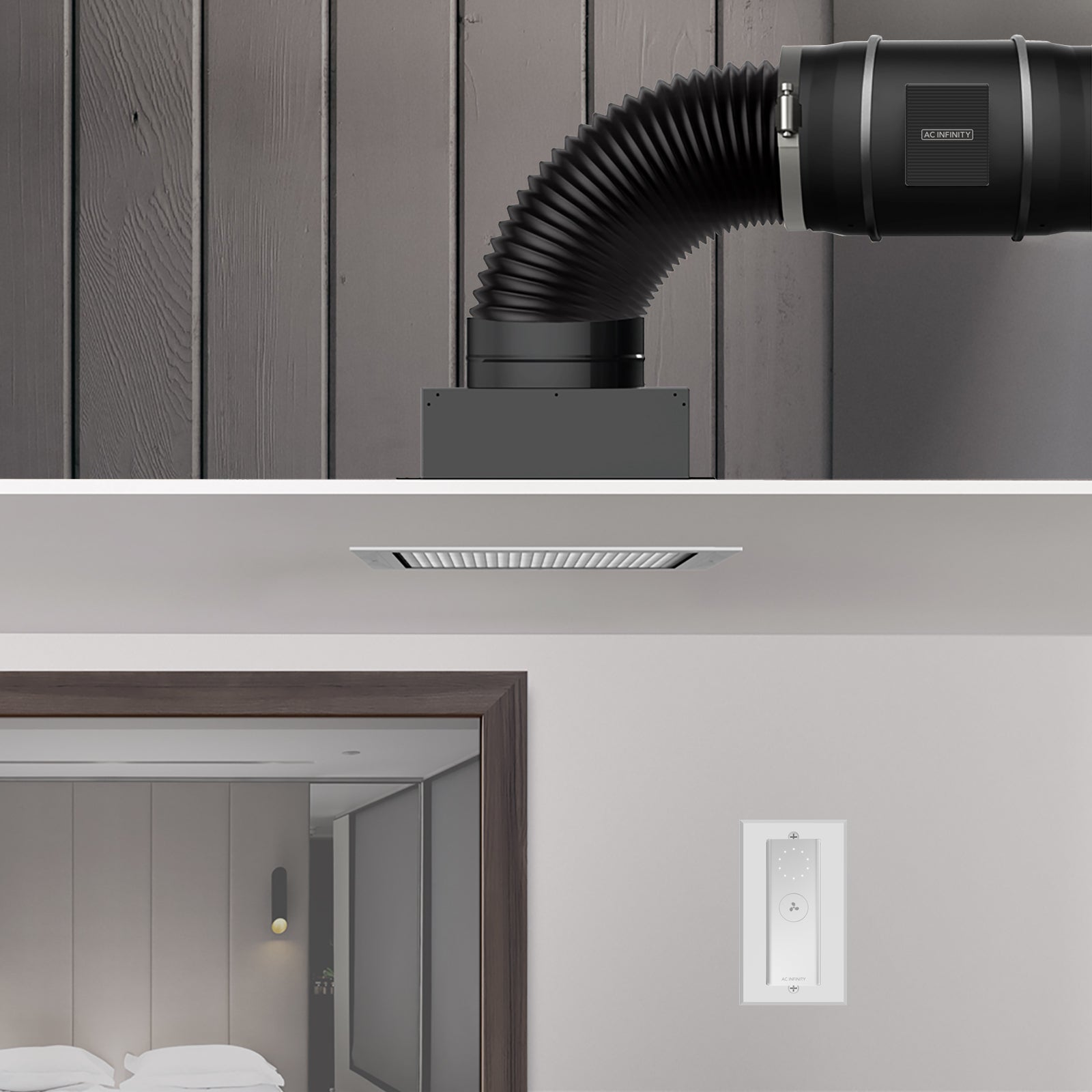

  • A whole house attic fan designed to cool and ventilate entire homes by exhausting hot air from indoor spaces.

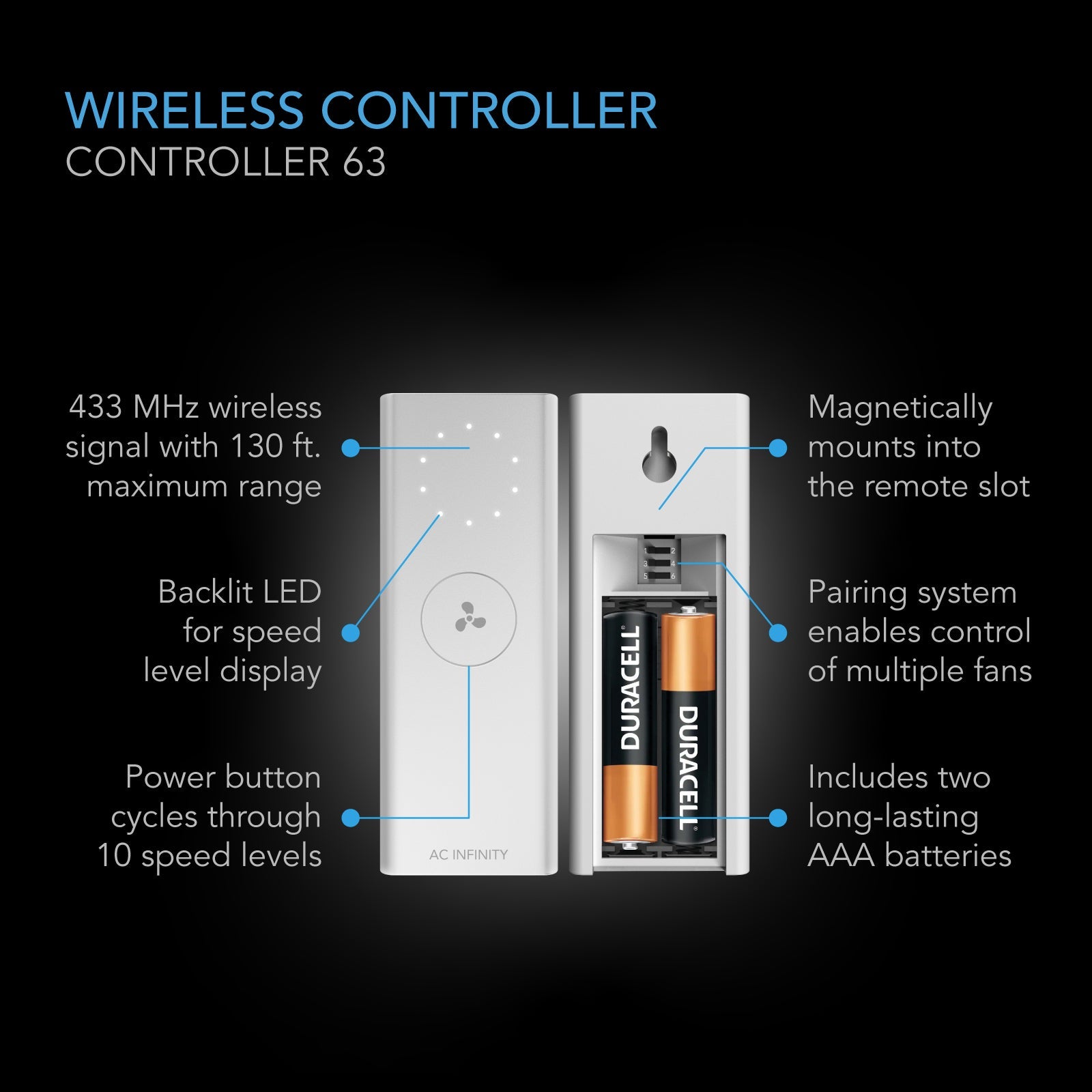

  • 10-speed wireless controller with backup memory remotely adjusts fan speed and optimizes airflow.

  • Utilizes a PWM-controlled EC motor that results in quieter and more energy-efficient fans than most others.

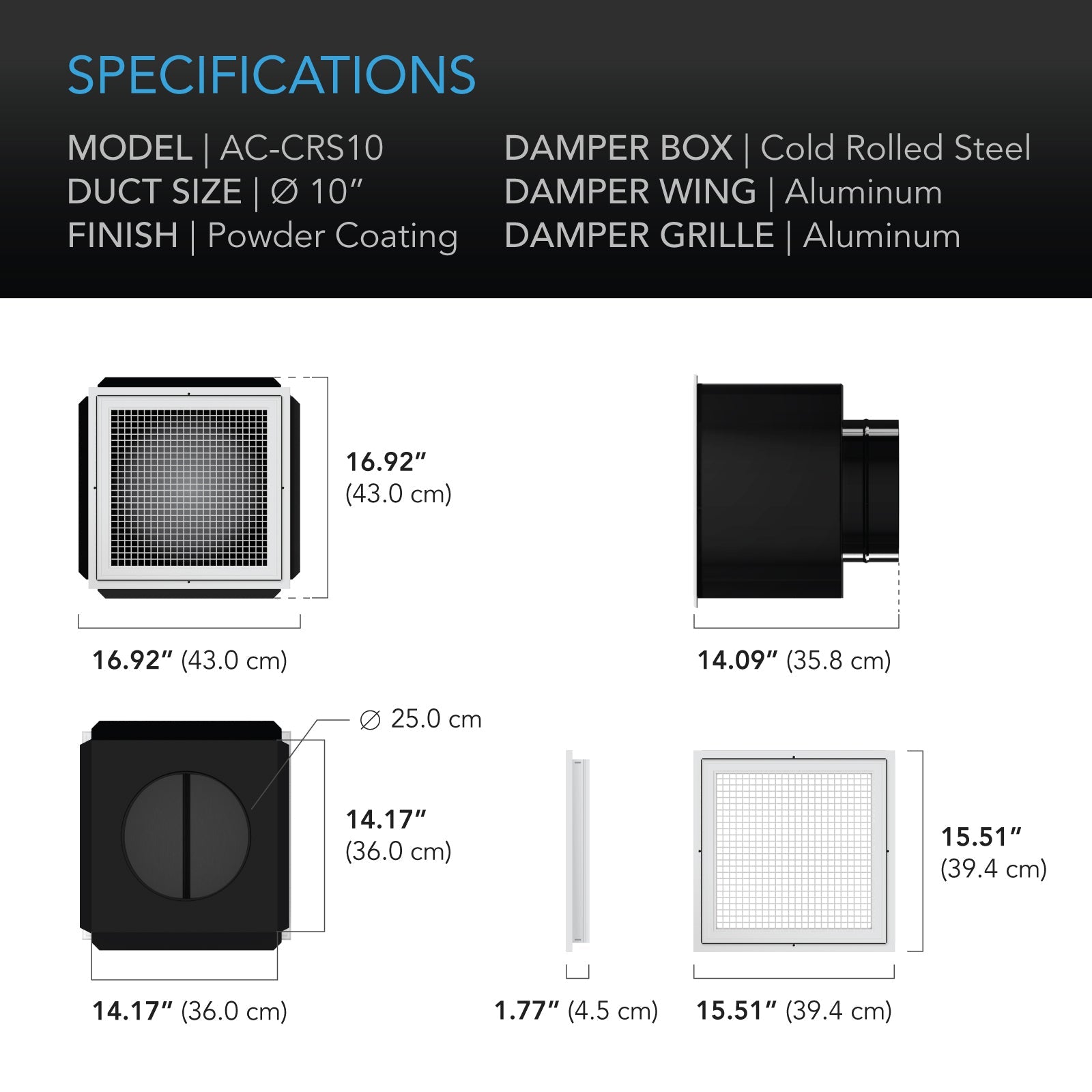

  • Features 2-door shutters with damper that blocks attic air from entering living spaces when fan is not in use.

  • Duct Size: 10" | Dimensions: 9.8 x 15.1 x 11.3 in. | Airflow: 1201 CFM | Noise: 48 dBA | Bearings: Dual Ball

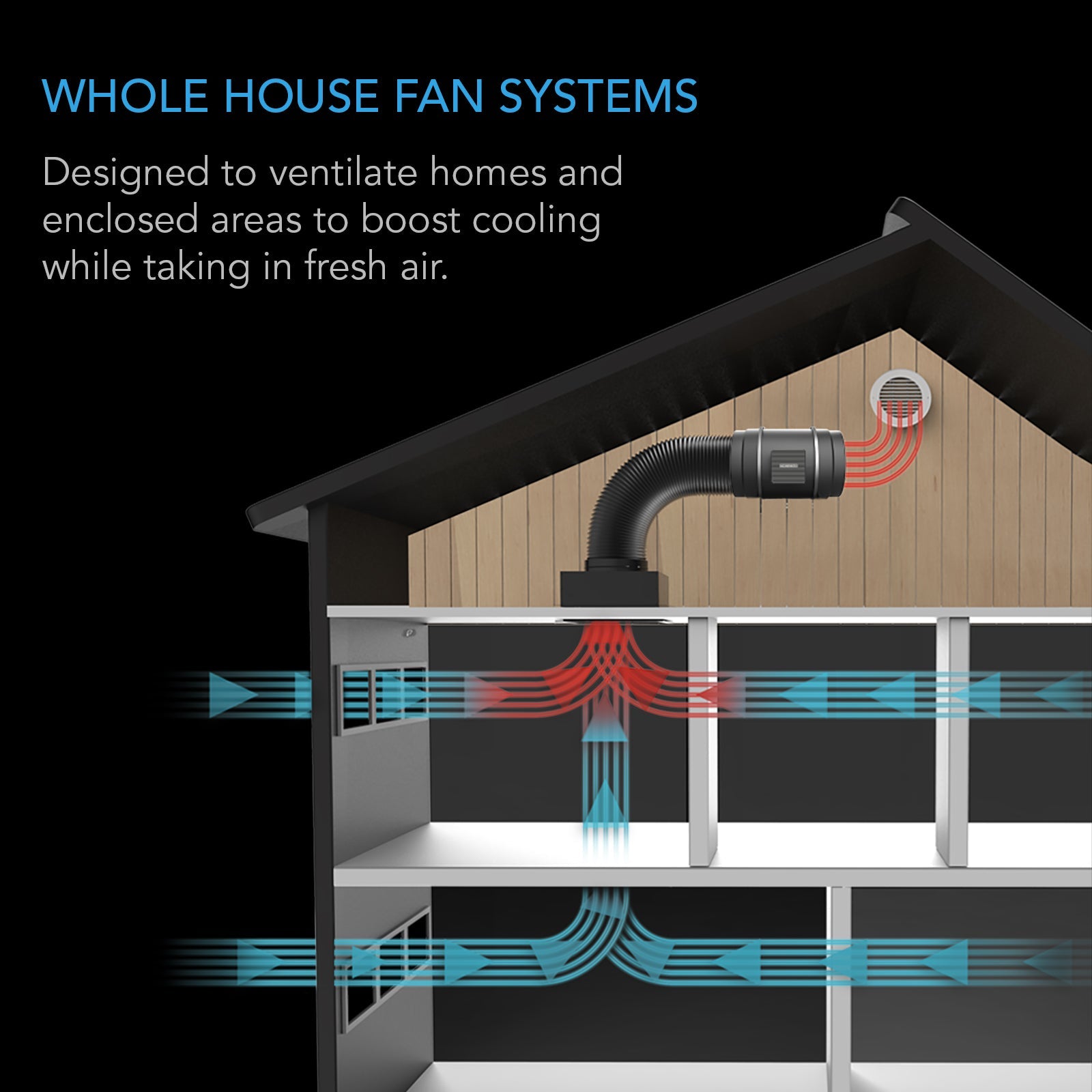

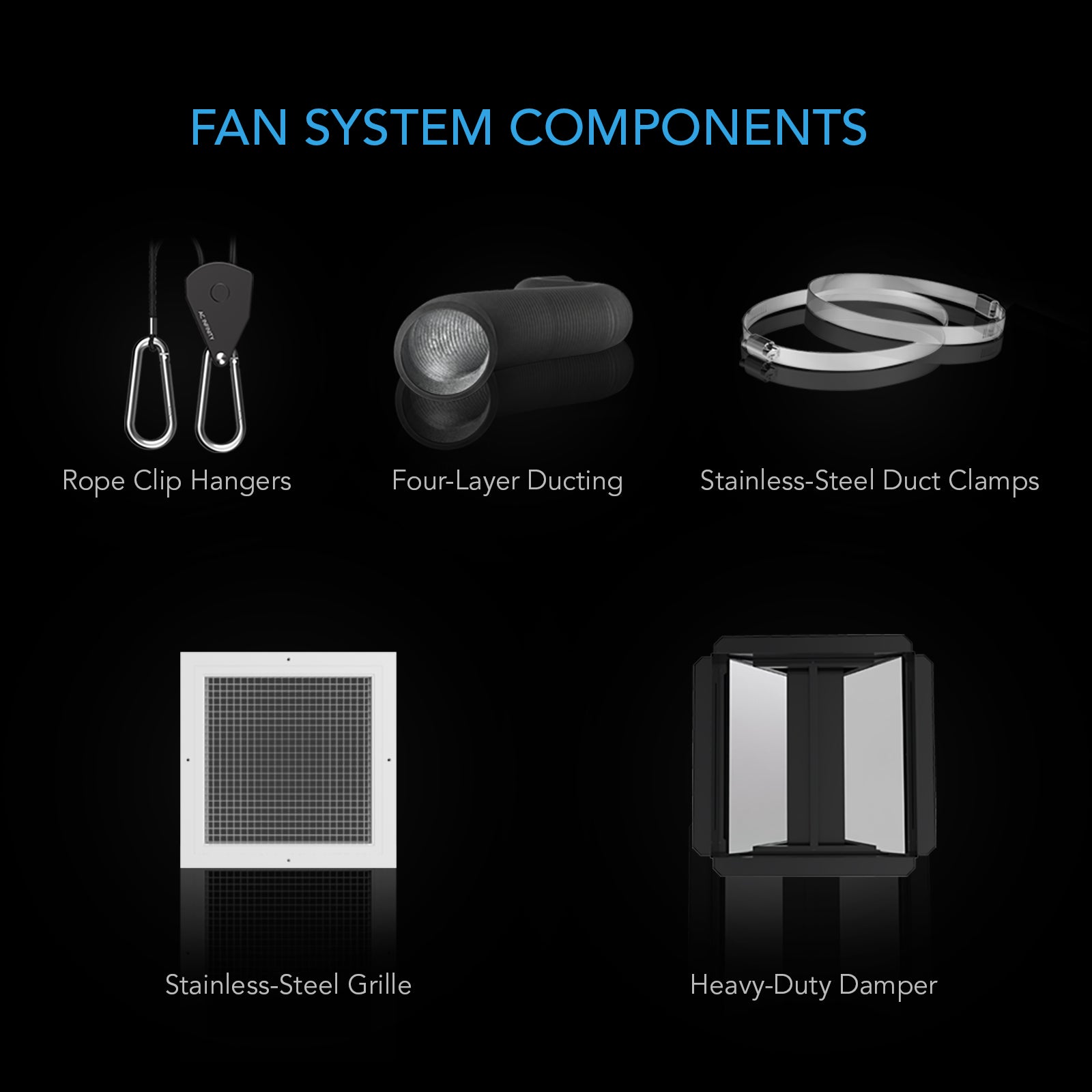

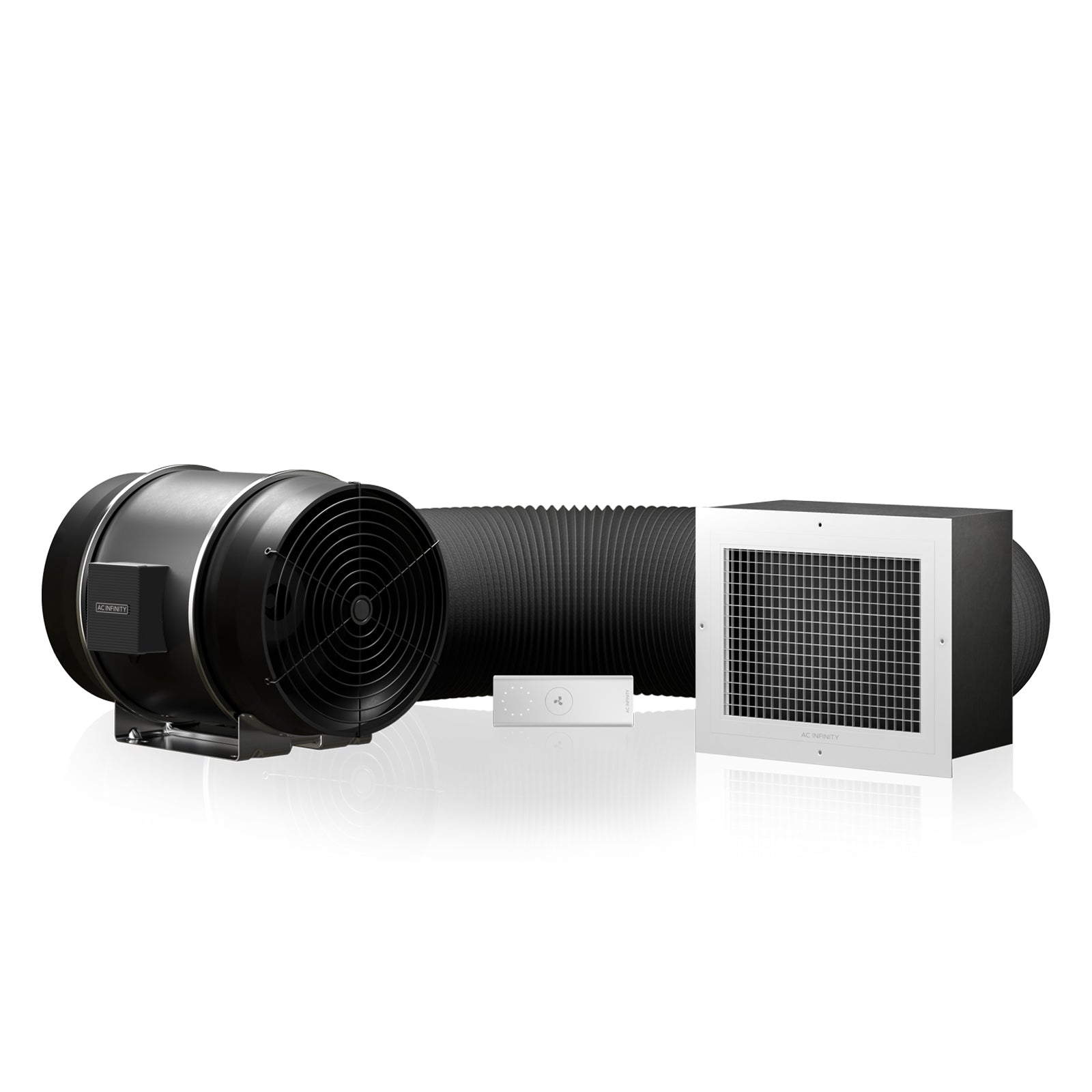

  • Product Description: A whole house fan system designed to be installed in attics to keep homes cool; it exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. Each attic fan is controlled by a wireless fan remote that can adjust the fan speed in up to 10 levels. This will enable you to conveniently optimize your desired cooling and noise levels from anywhere in your home. The fan uses a PWM-controlled EC motor that allows it to run efficiently and quietly. This kit includes 4-layer ducting, stainless steel duct clamps and grille, and a 2-door shutter that blocks attic air from flowing into your home when the fan is not in use.

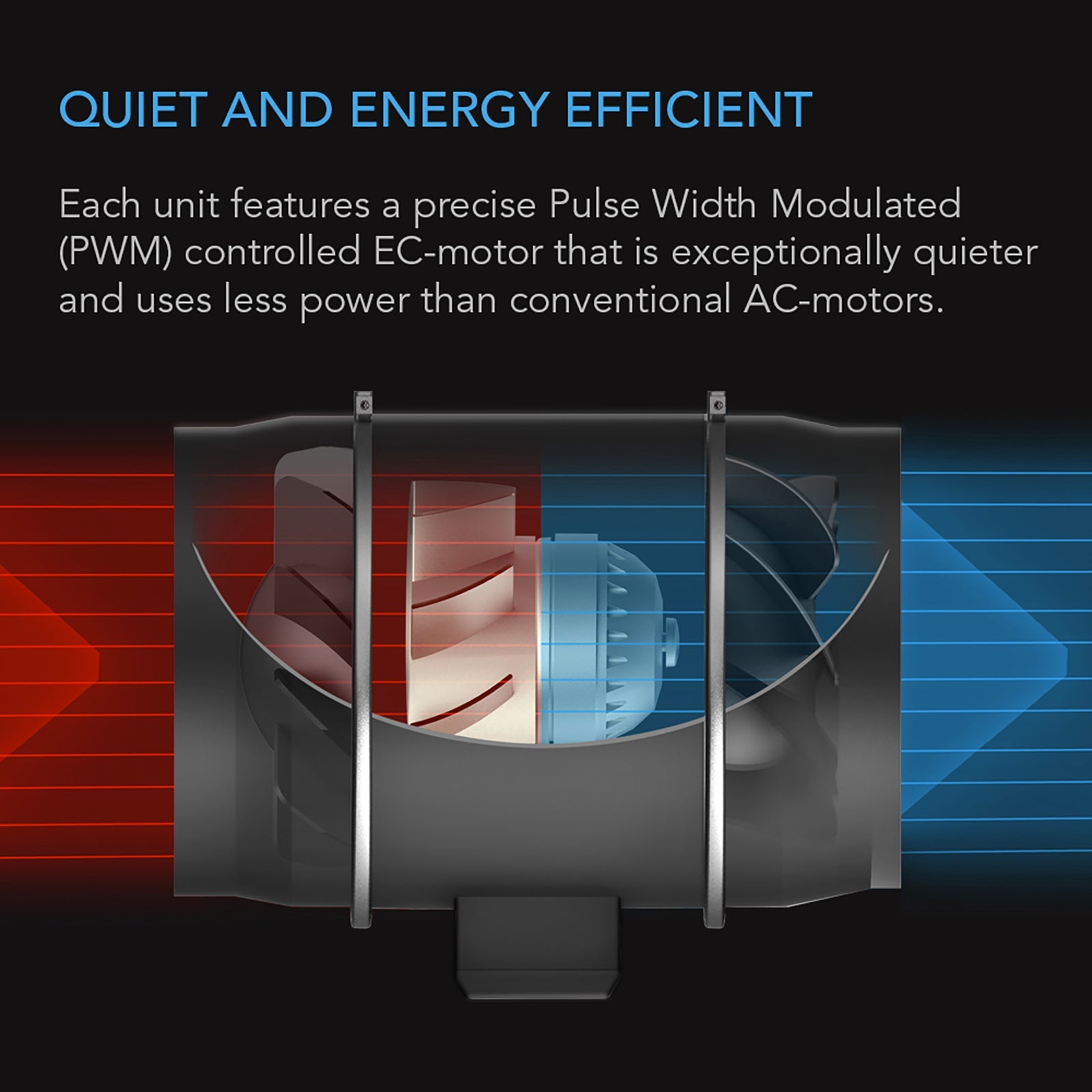

  • Next-Gen EC Motor: Features a cutting-edge Electronically Commutated (EC) motor that is digitally controlled using precise electronic pulses. This PWM technology enables the fan to operate quieter and control the full range of its speed 0 to 100% without generating great volumes of heat or noise. EC motors pay for themselves in the long run having twice the lifespan and being 40% more energy-efficient than AC motors.

  • Efficient Performance: This attic fan has a 50,000-hour continuous run lifespan, using dual ball bearings that allow omnidirectional mounting. It is also IP-44 rated to resist dust and moisture while performing in most humid environments. The insulated damper uses gravity-fed shutters that close the opening when the whole house fan is not in use. This keeps attic air from entering your home.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDWAY S10
  • Product Model: AC-CRS10
  • UPC Code: 819137023031

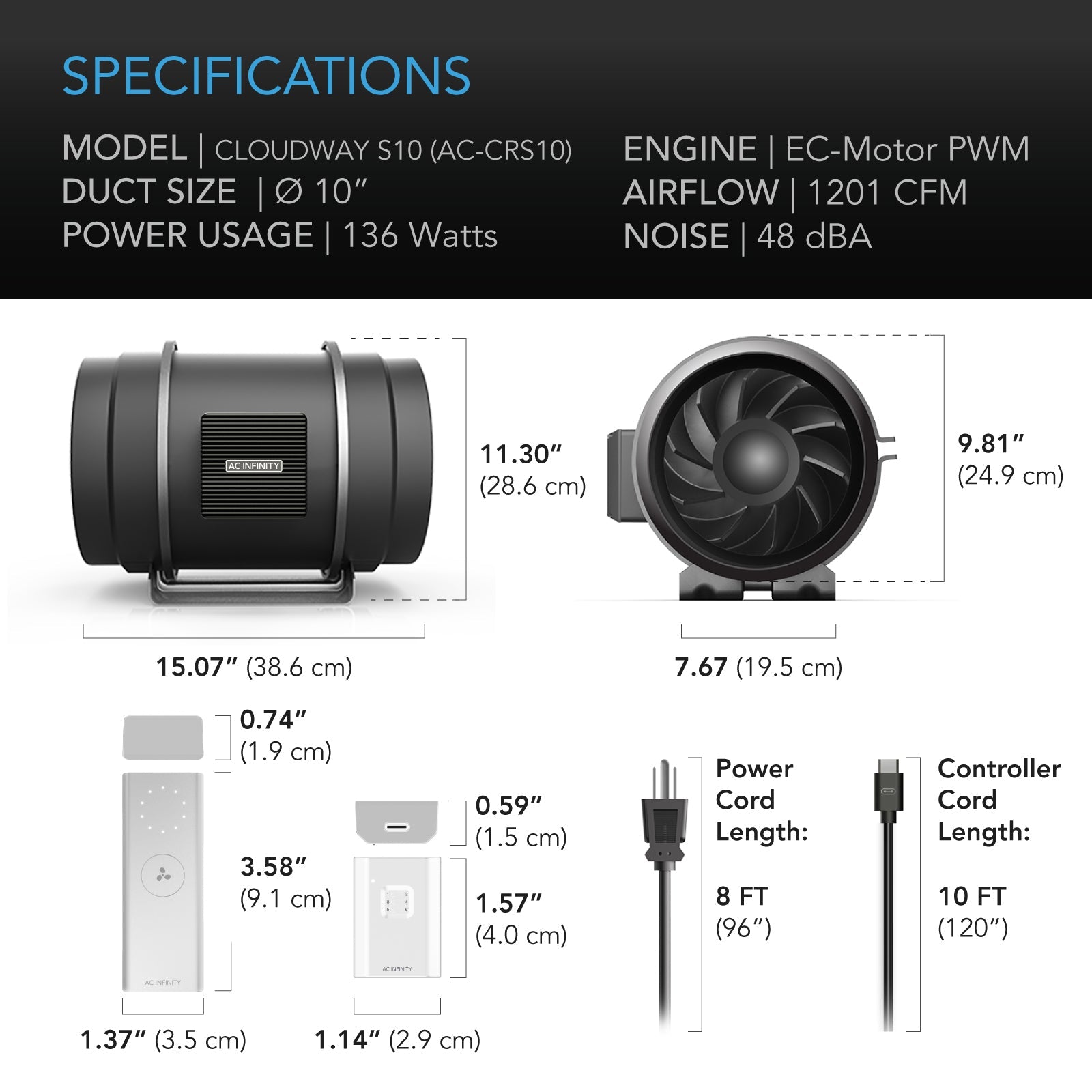

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 10"
  • Duct Tube Length: 6 ft.
  • Total Dimensions: 9.81 x 15.07 x 11.30 in. (24.9 x 38.6 x 28.6 cm)
  • Mounting Hole-To-Hole Distance: 5.90 x 5.90 in. (15.0 x 15.0 cm)
  • Screw Hole Diameter: 0.472 in. (1.2 cm)
  • Cord Length to Controller: 240 in. (20 feet)
  • Cord Length to Plug: 96 in. (8 feet)
  • Product and Mounting Dimensions - Controller
  • Controller Dimensions: 3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)
  • Receiver Dimensions: 1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)
  • Mounting Hole Size: 0.25 in. (6.5 mm)
  • Total Airflow: 1201 CFM
  • Total Noise: 48 dBA
  • Static Pressure: 352 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 250 W
  • Average Power Usage: 136 W
  • Current: 2.7 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Wall Adapter Input: 100 to 120V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140 degrees F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • Life Expectancy: 67,000 Hours
  • Fan Quality Approvals: CE, RoHS
    • Data Sheets
  • Download the data sheet: here
  • Download the user manual: here
