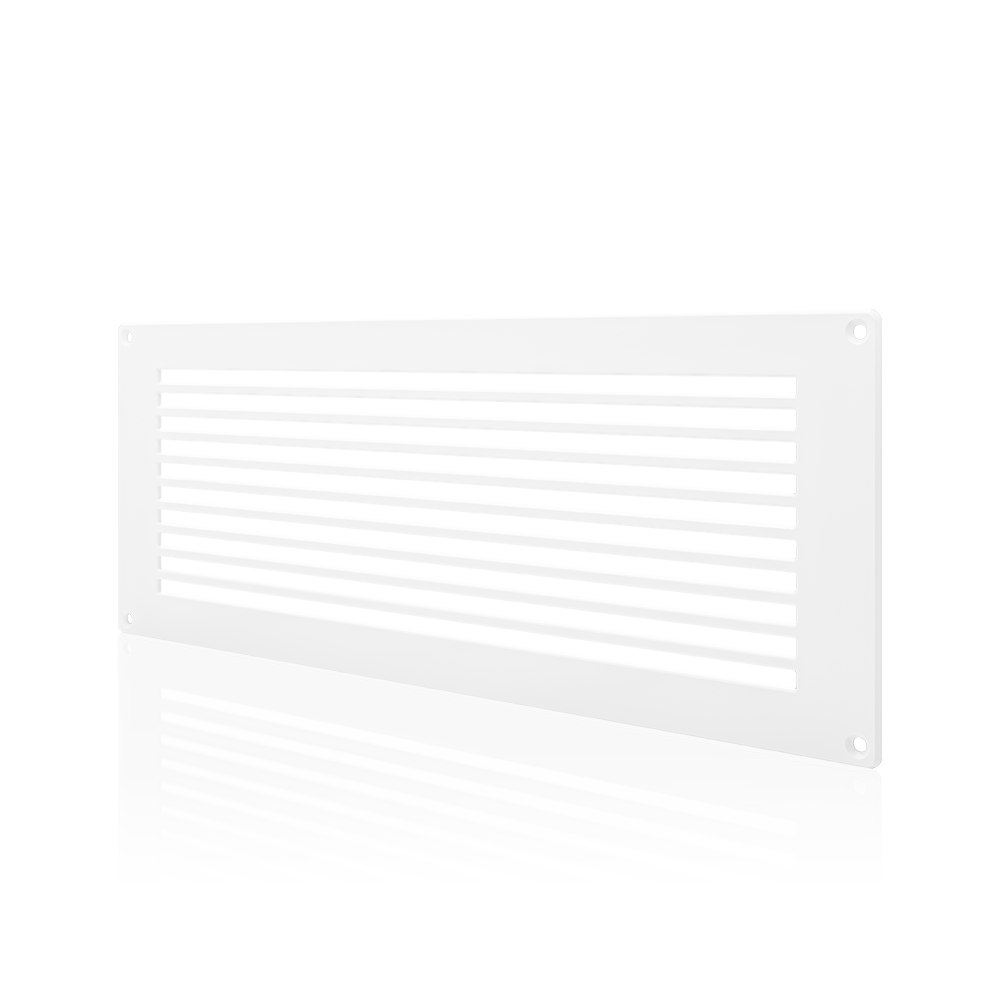

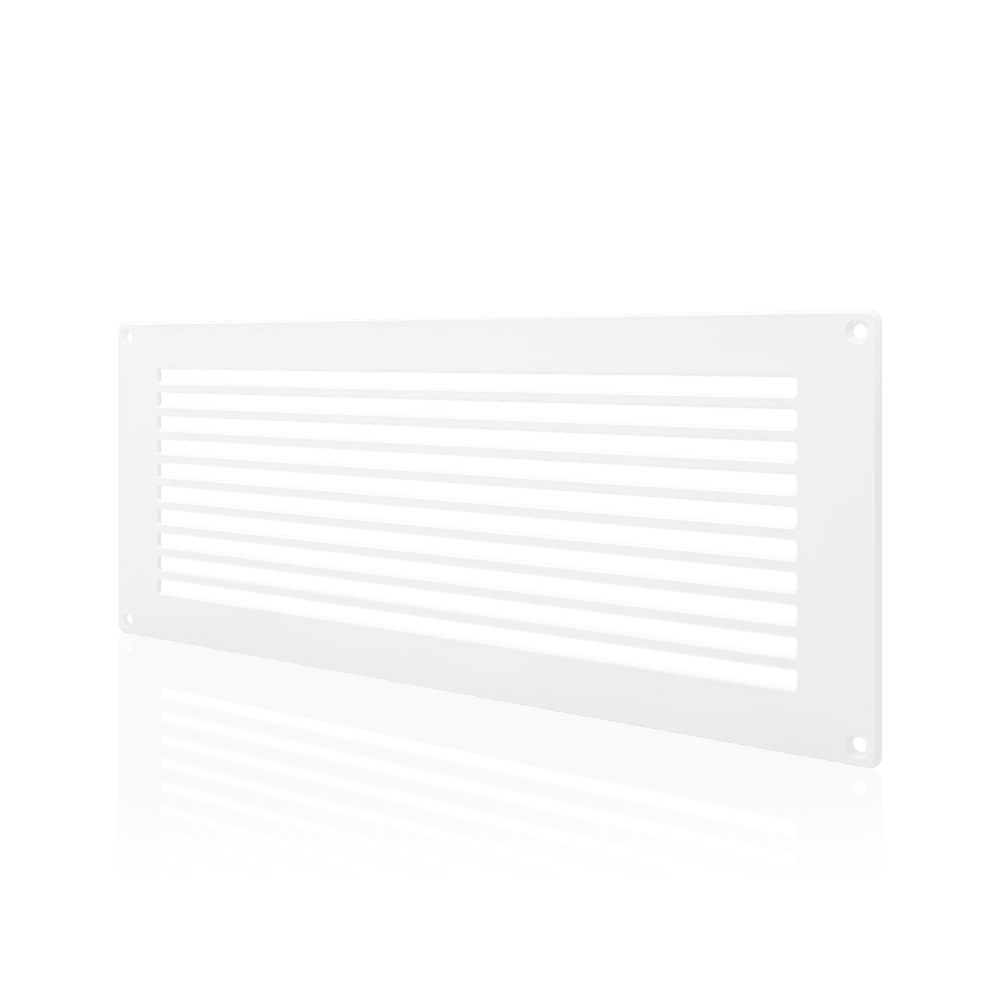

AC Infinity Passive Ventilation Grille 17", White

AC Infinity Passive Ventilation Grille 17", White

$45.99 USD
$0.00 USD $45.99 USD
Sale Sold out
Shipping calculated at checkout.
Description
  • Designed to be installed into doors, cabinets, and walls to help increase ventilation.

  • Can also be used in conjunction with a fan system to act as an intake or exhaust vent.

  • Ventilation grille design maximizes airflow while maintaining frame's structural integrity.

  • Features a CNC machined aluminum frame and matching flat screw heads, painted matte white.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRFRAME Grille 7, White
  • Product Model: AC-AGW7
  • UPC Code: 819137020269
  • Product and Mounting Dimensions
  • Total Dimensions: 16.5 x 6.5 in. (41.2 x 16.5 cm)
  • Required Mounting Hole: 14.5 x 5 in. (36.8 x 12.7 cm)
  • Hole to Hole Distance: 15.9 x 5.8 in. (40.3 x 14.8 cm)
  • Screw Hole Diameter: 0.197 in (0.5 cm)
  • Materials: Aluminium
  • Finish: Matte White Powder-Coat Paint
  • Color: White
    • Kit Contents
  • (4) wood mounting screws and (4) machine mounting screws with nuts.
  • Product Description: The AIRFRAME Grille 7 is a 16.5 by 6.5 inch aluminium grille that can be installed into doors, cabinets, and walls to help increase ventilation. The grille can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. To mount the grille into your cabinet or wall, you would need to cut a rectangle hole approximately 14.5 by 5 inches. Features a CNC machined anodized aluminum frame and matching flat-head screws, all painted matte white. Information on the additional included hardware can be found below.
  • Hardware: Includes four wood screws and four machine screws with nuts to mount the ventilation grille onto a cabinet or wall. All mounting screw heads are white to match the mounting frame.
    •
