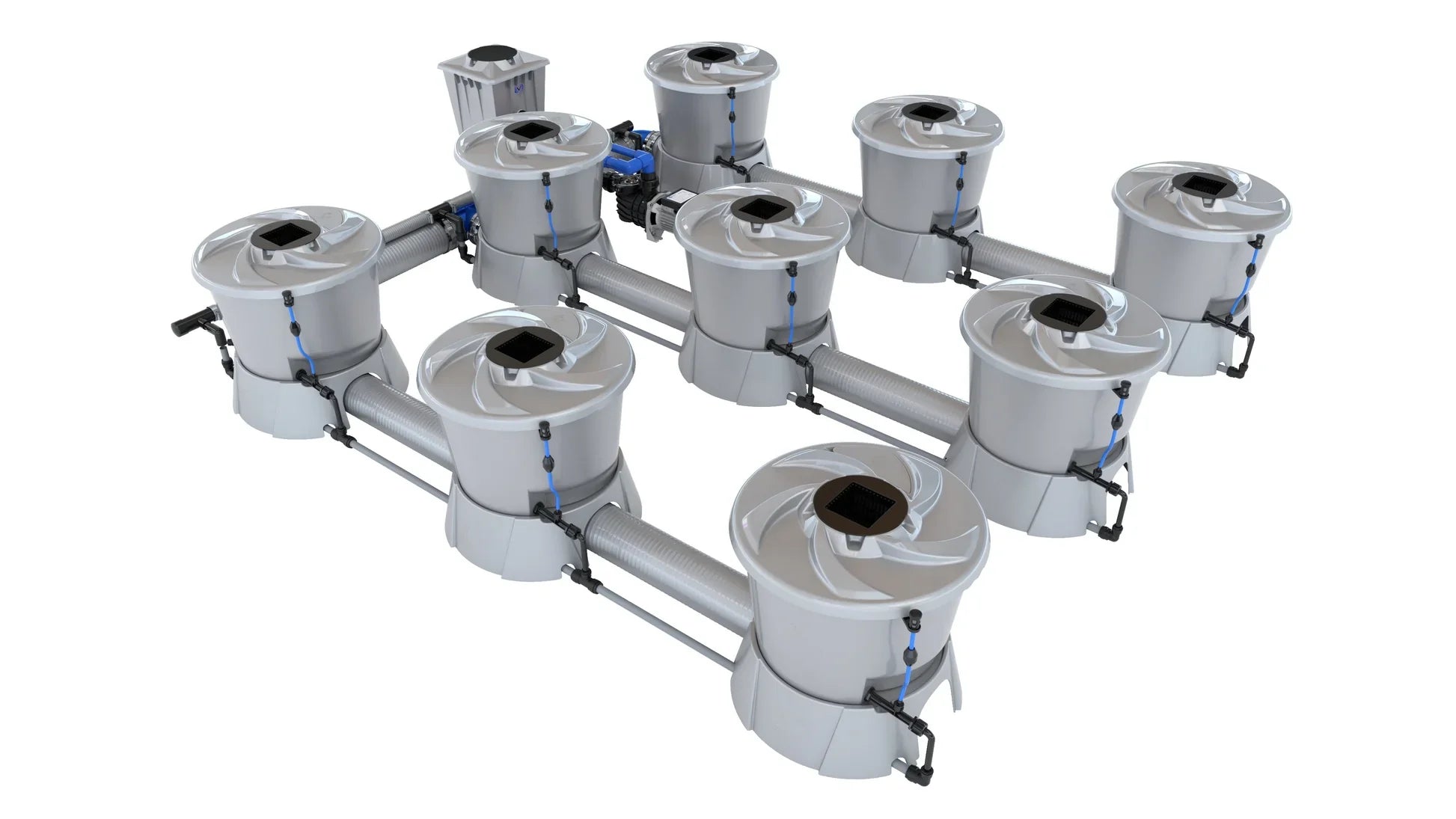

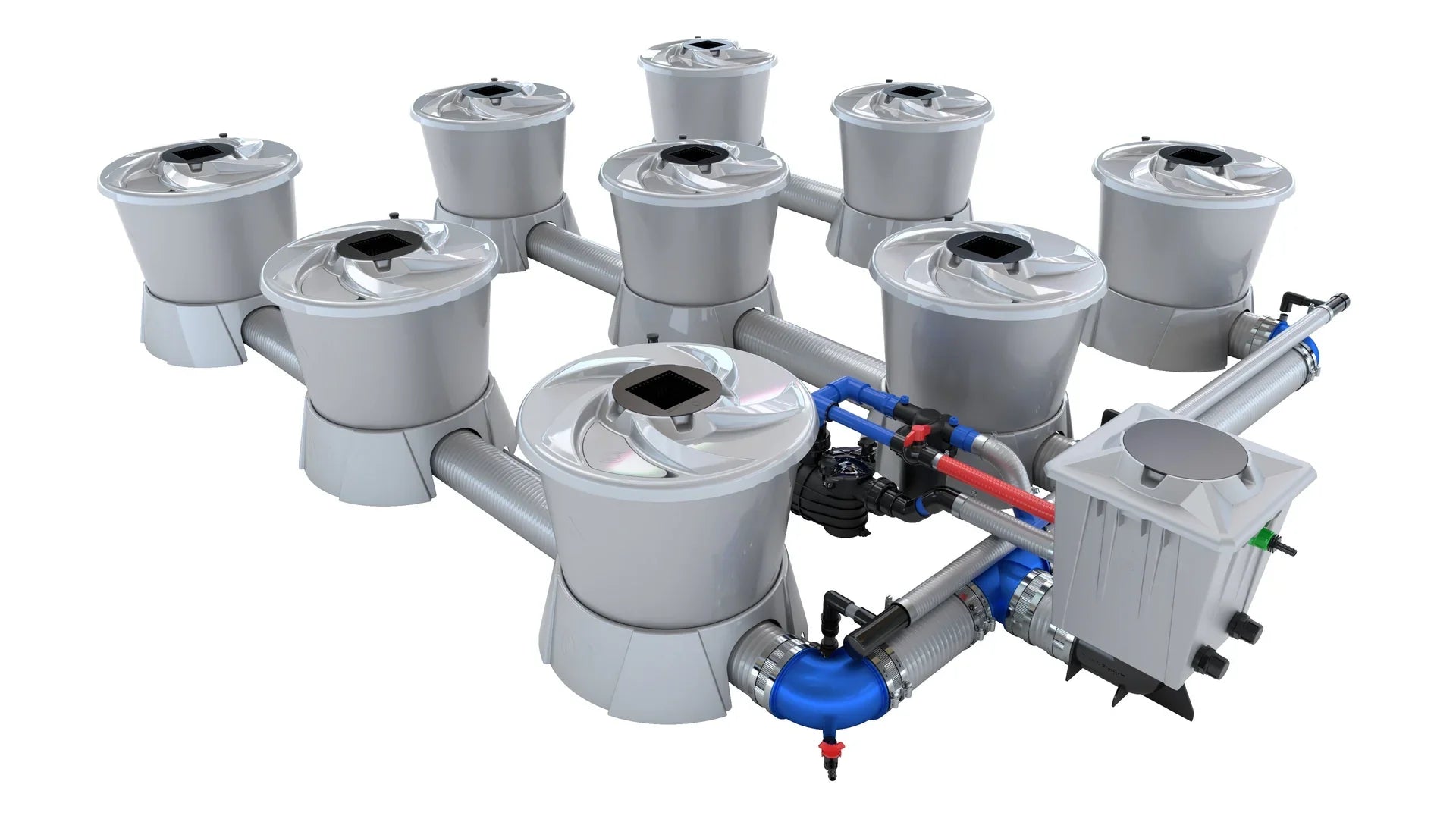

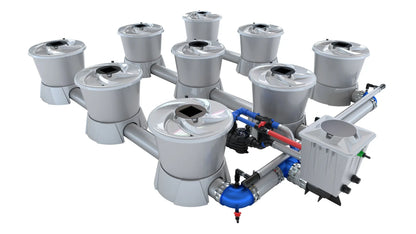

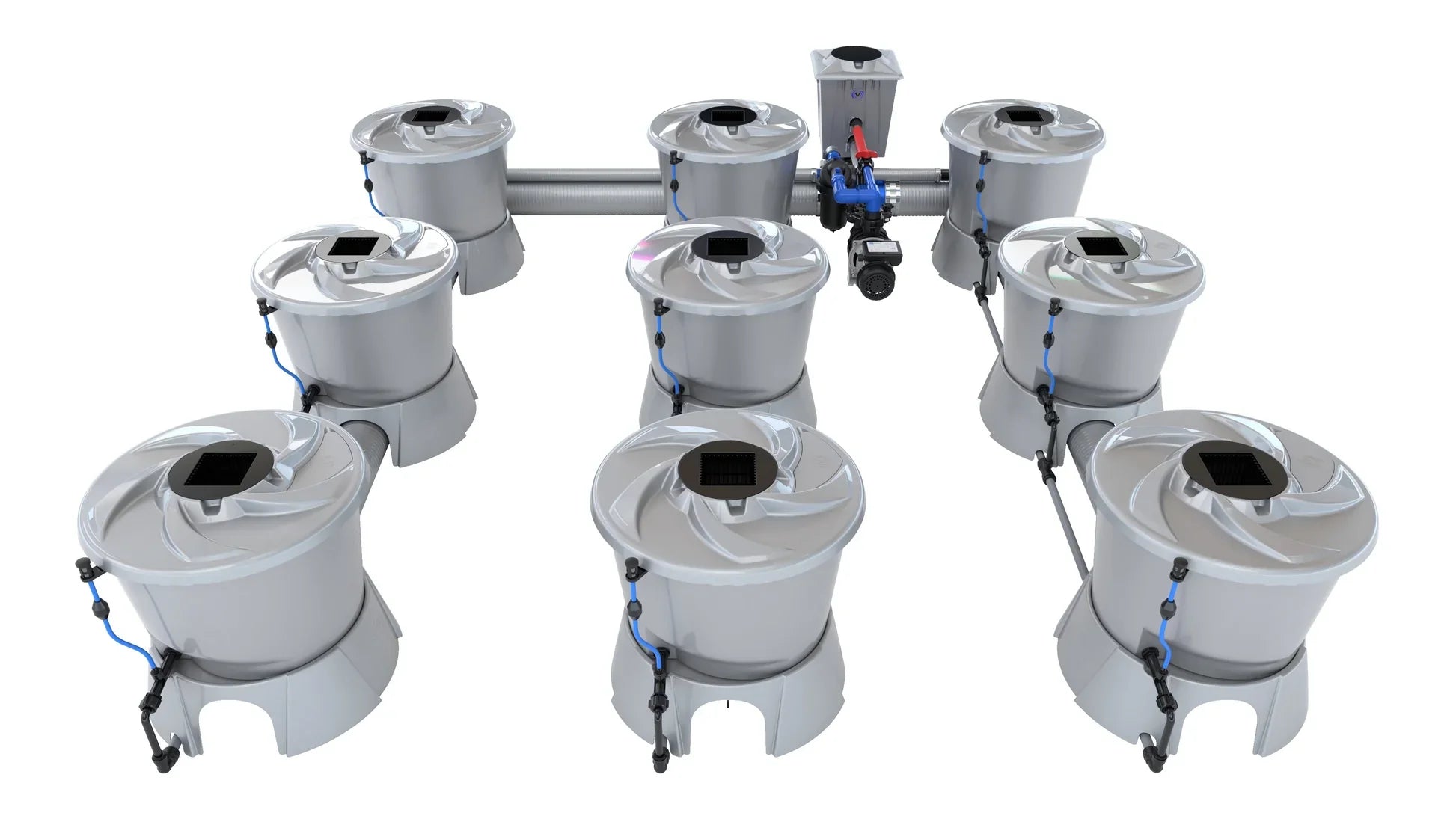

ALIEN Hydroponics V-SYSTEM 9 Pot 3 Row Kit

Description

Key V-SYSTEM Benefits: Key V-SYSTEM Benefits:

Direct nutrient distribution

Maximum oxygen saturation

No air pump needed

No heat transferred

Vortex fluid motion

Naturally aspirated

Supports large plants

Pots and system completely drain

Prevents root clogging

Made in Britain

Key V-SYSTEM Features: Key V-SYSTEM Features:

15 gallon (58L) V-POT

Water fill line

Total-drainage bases

Venturi injectors

Inspection Covers

5" spiral tubing

5" Dual-Flow fittings

Integrated filtration

T304 Stainless clamps

Heavy-duty components

Push-fit feed connections

JET-STREAM Vortex pump

Specifications

Number of pots: Depends on configuration

Number of rows: Depends on configuration

Kit Total Fluid Volume: Depends on configuration

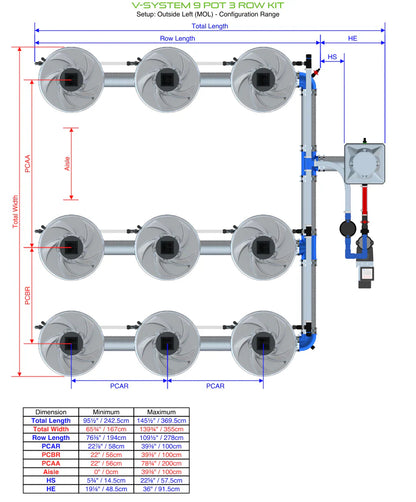

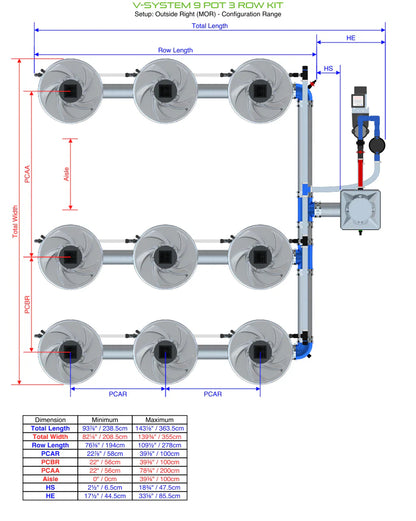

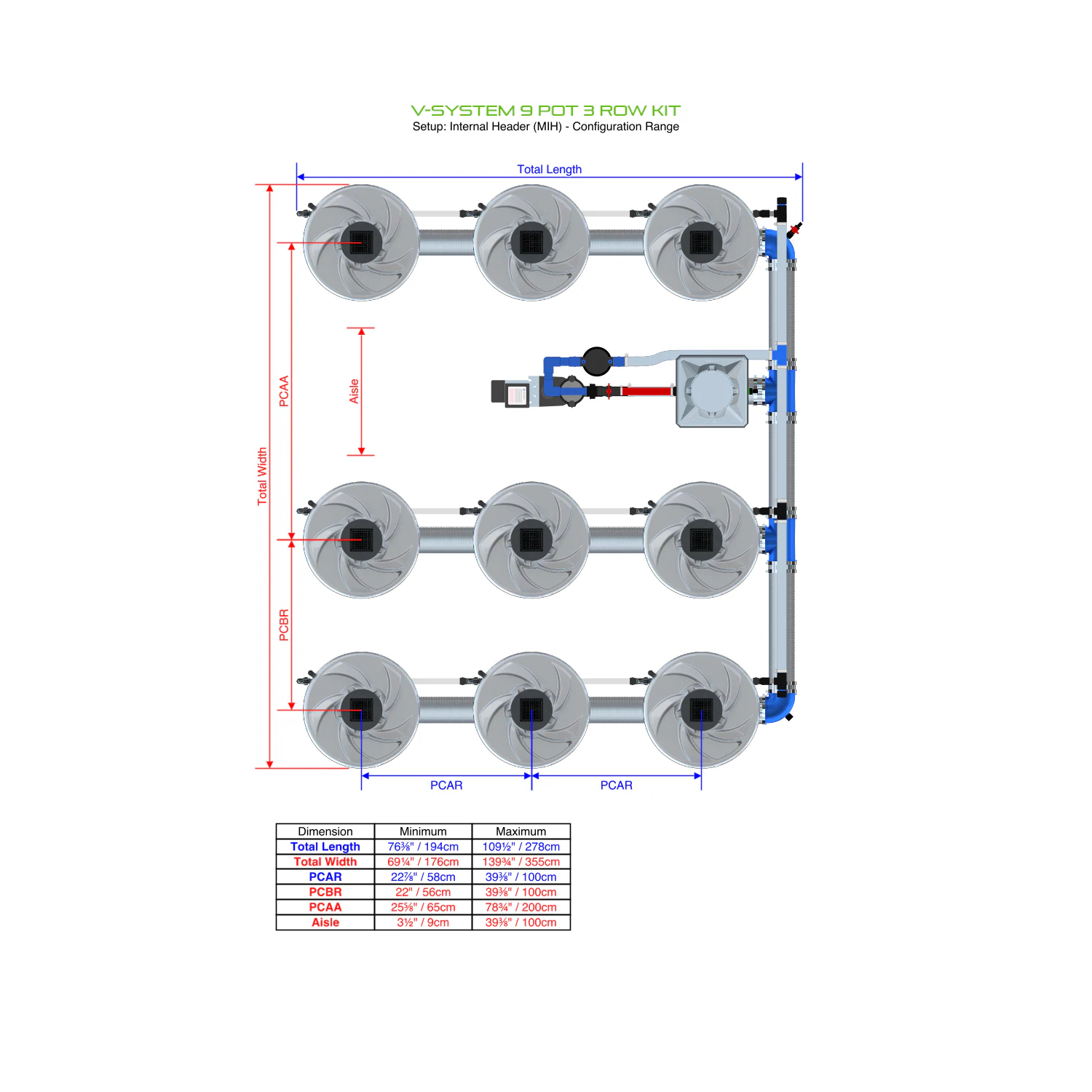

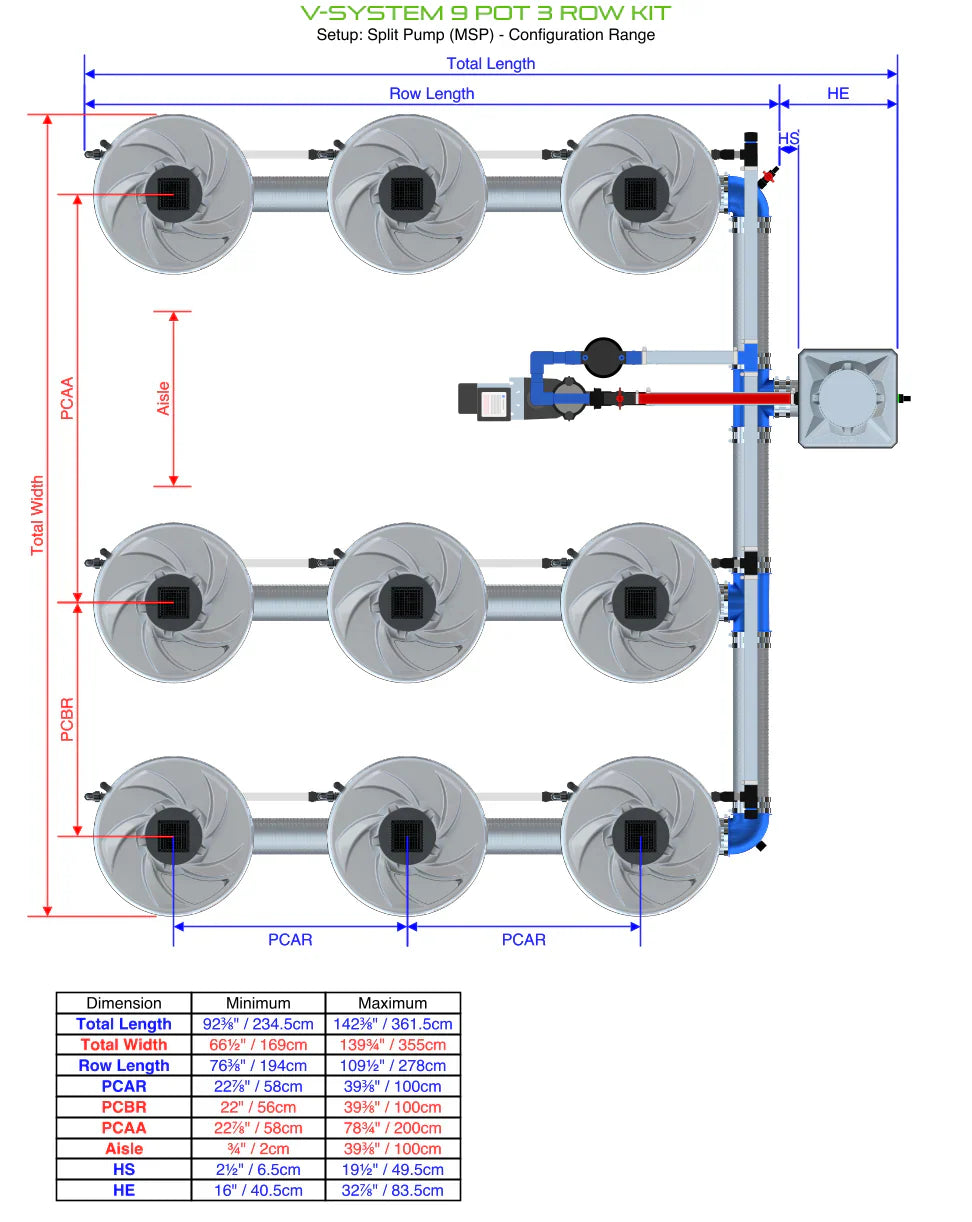

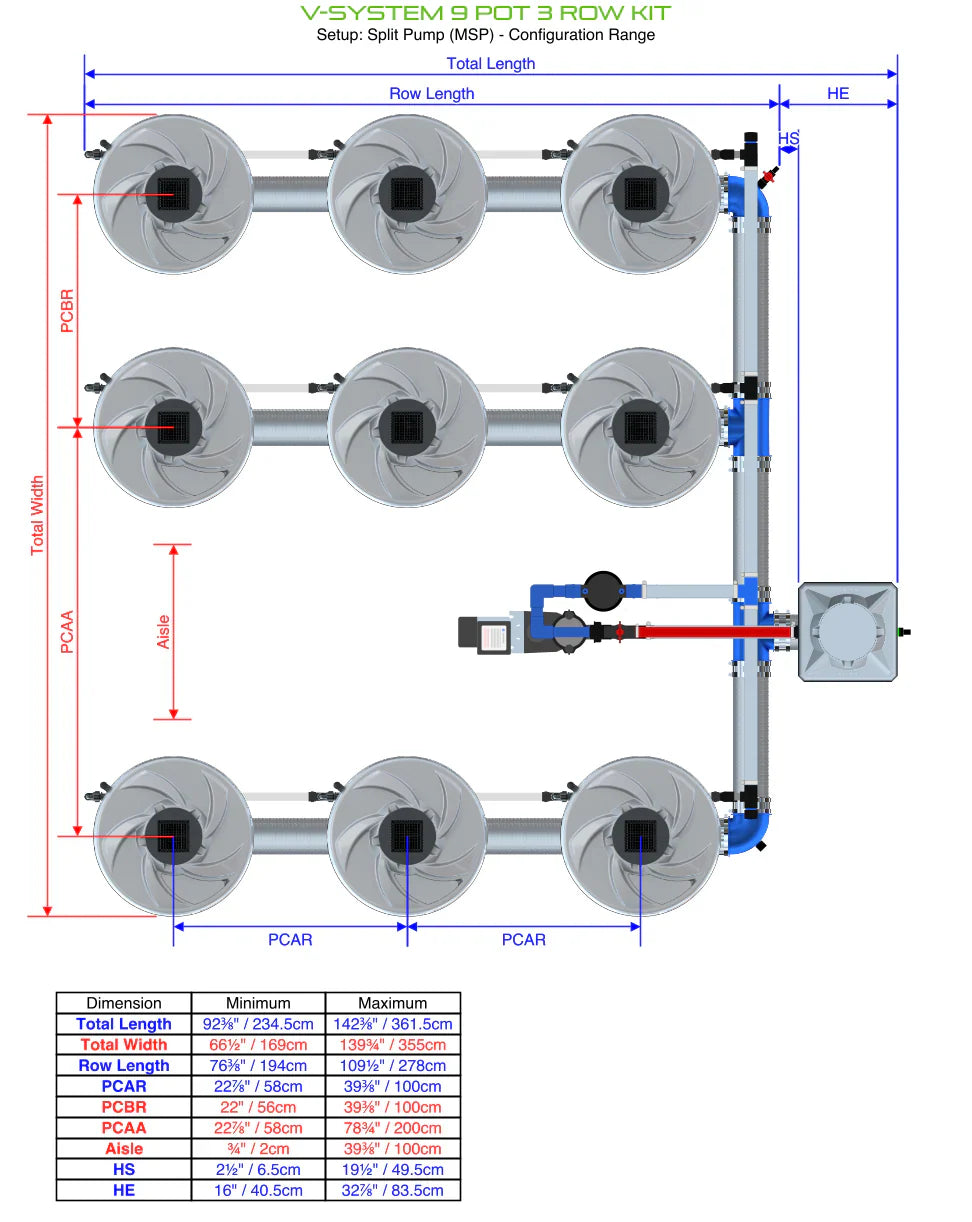

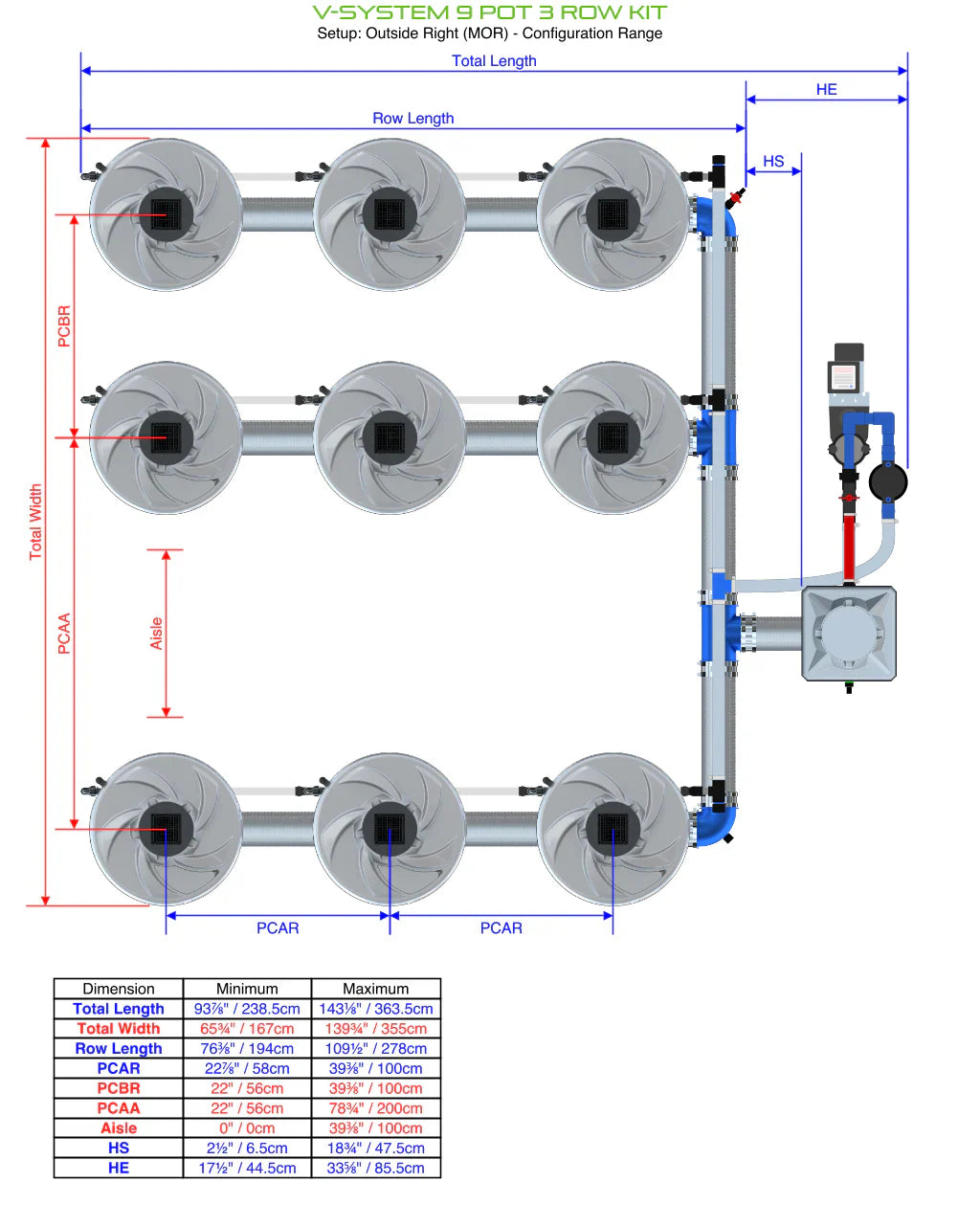

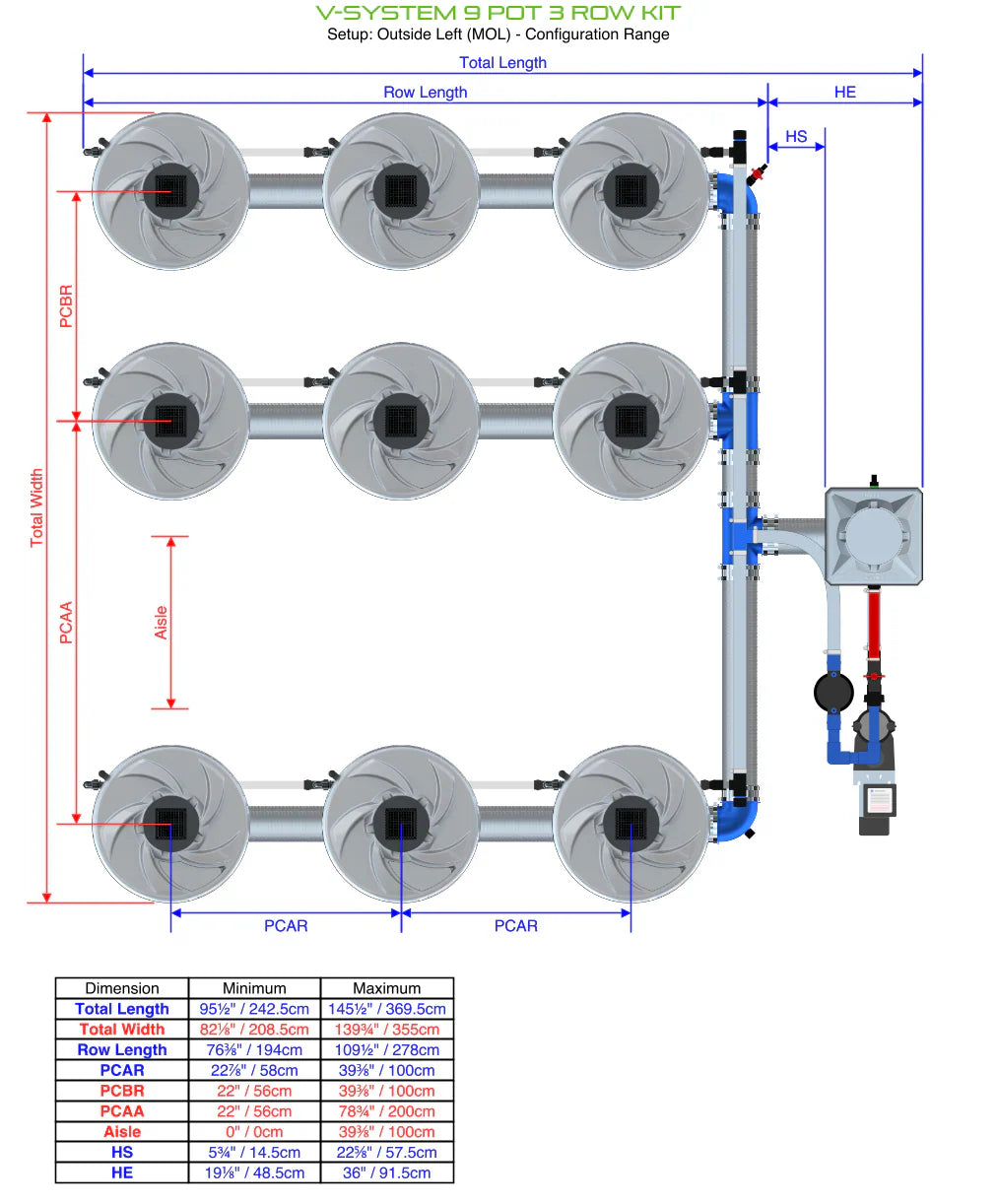

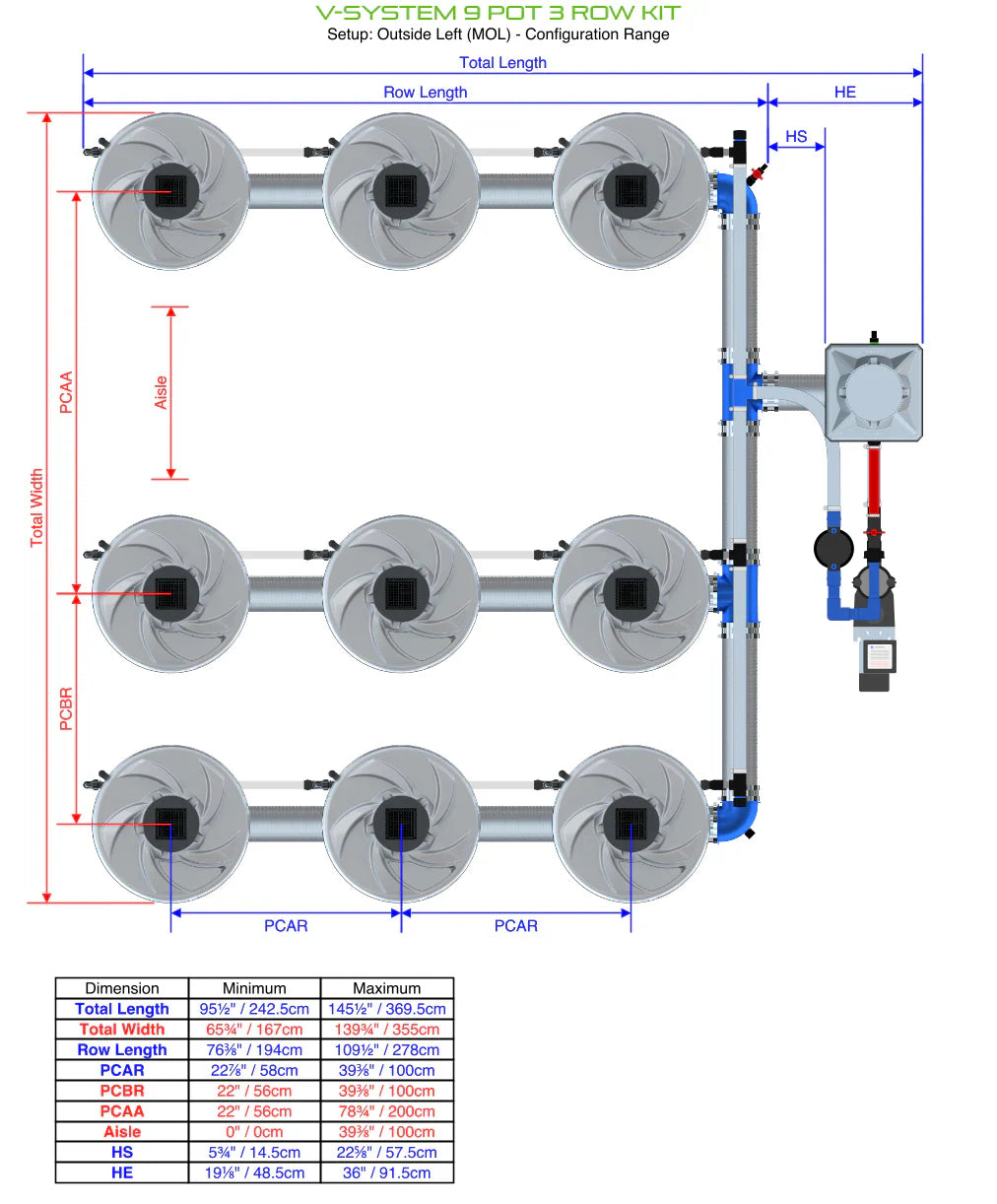

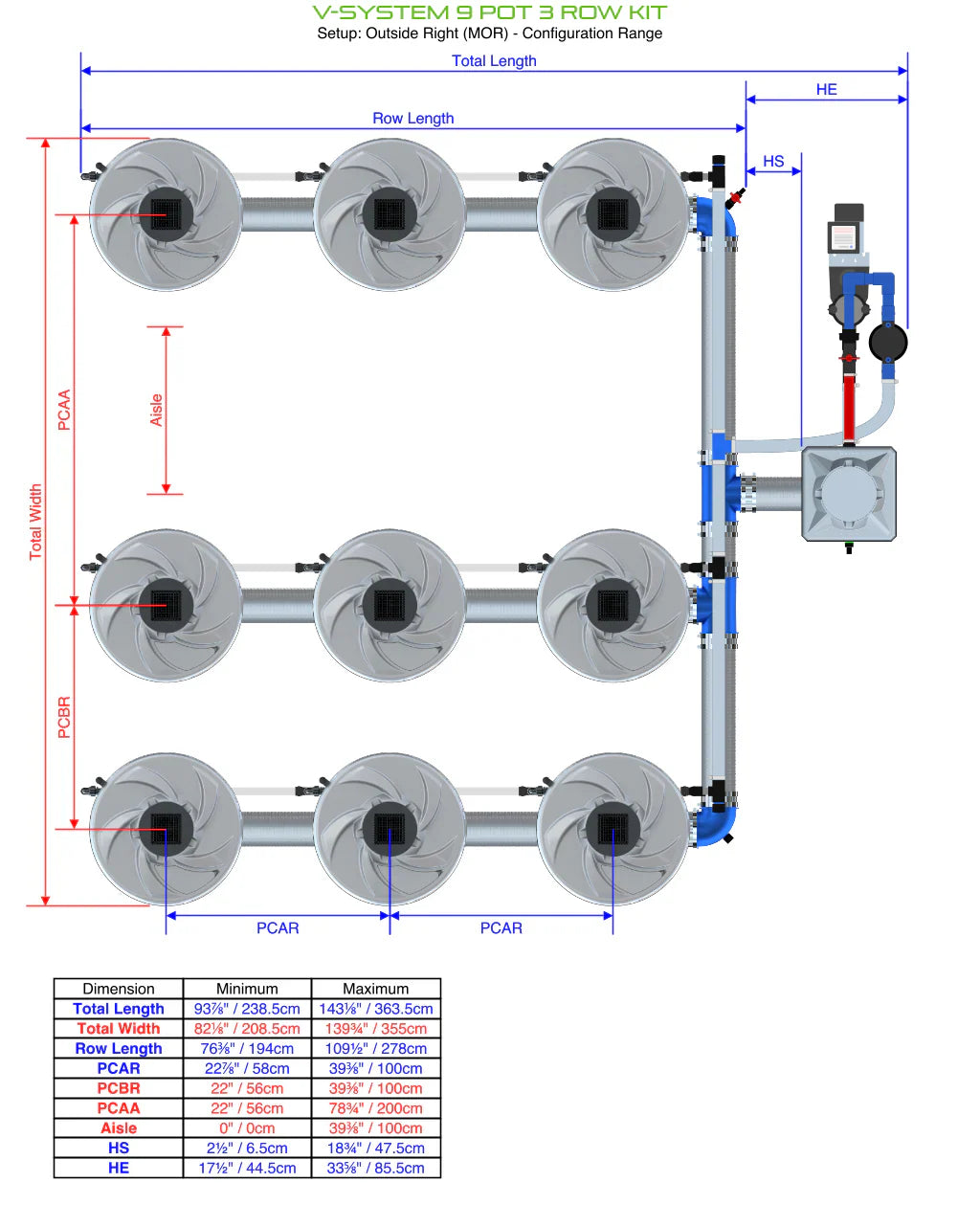

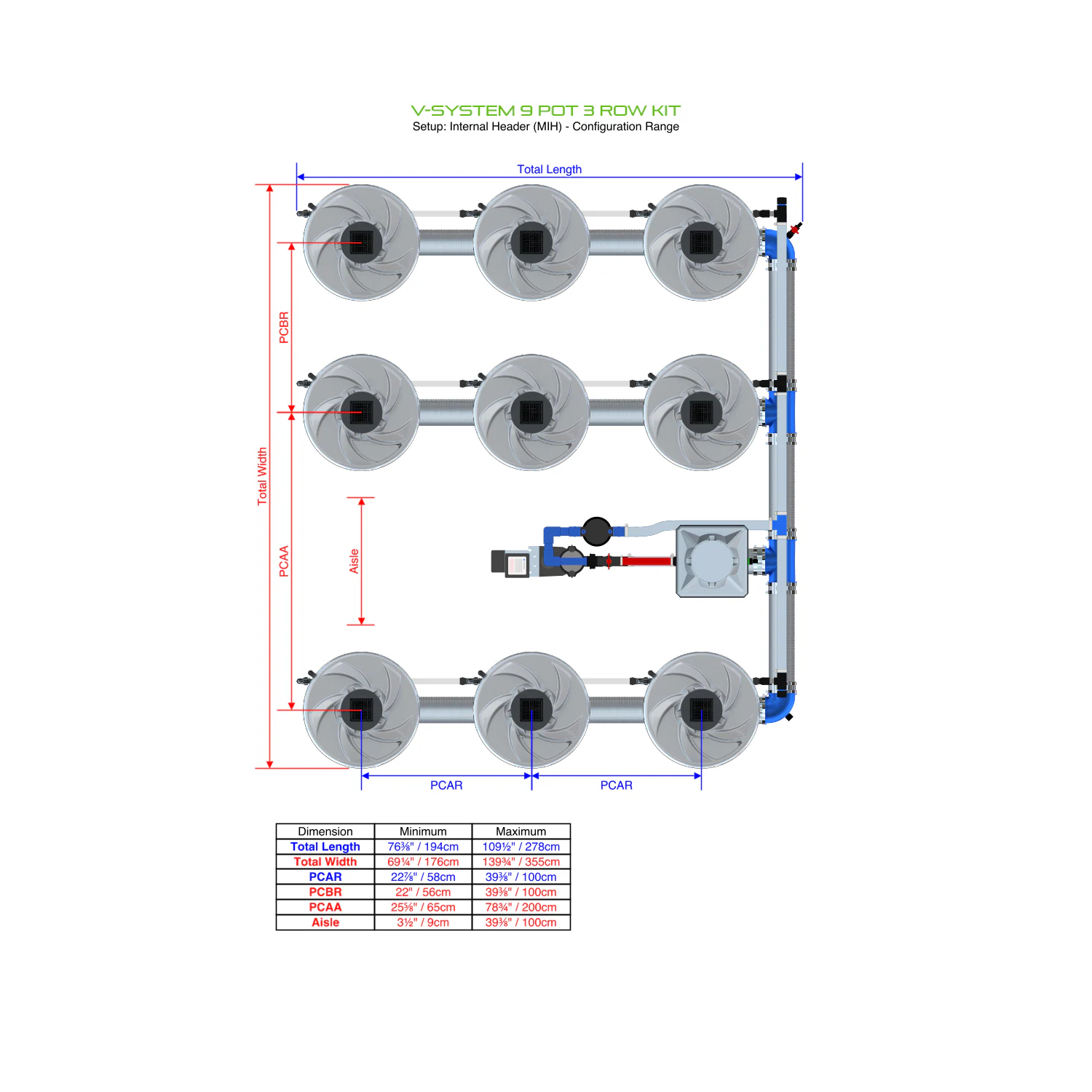

Minimum assembled size (can space pots more widely for a larger footprint):

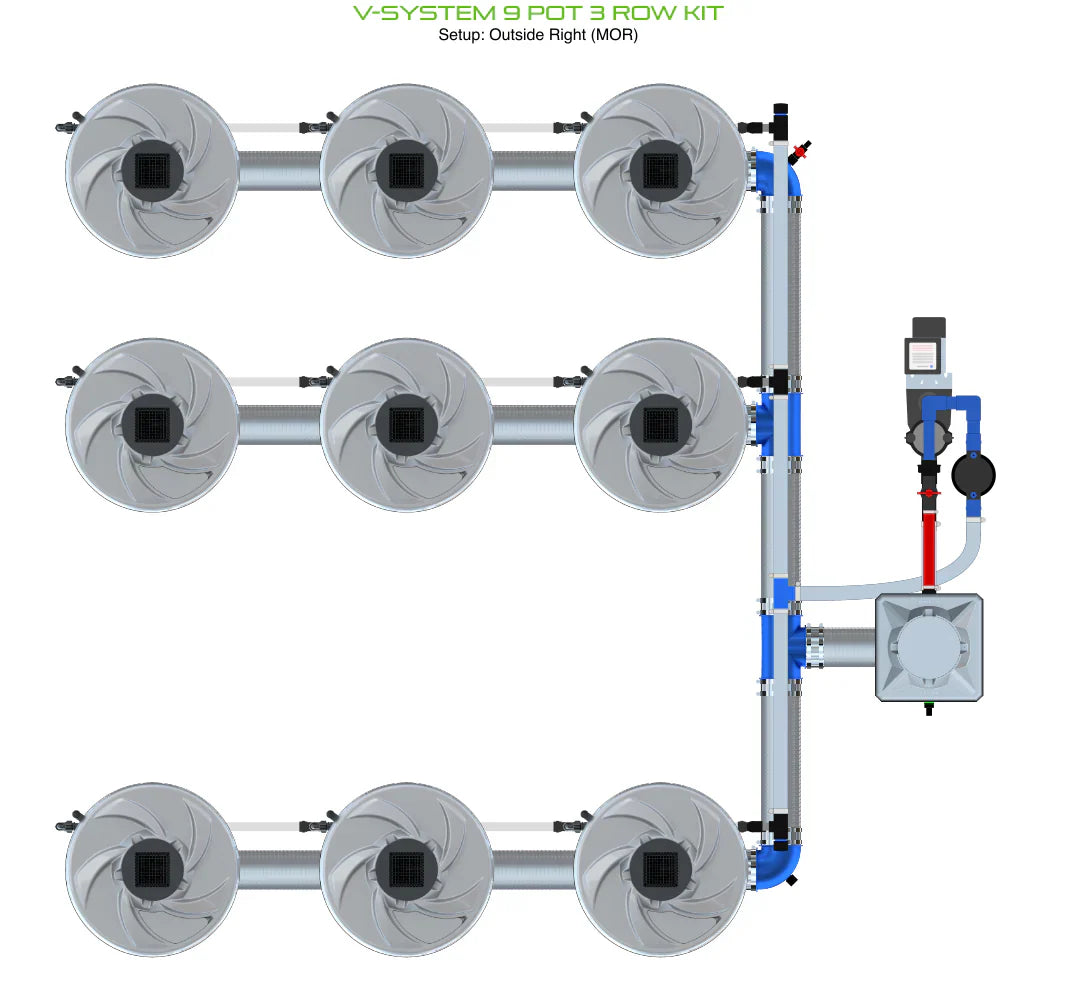

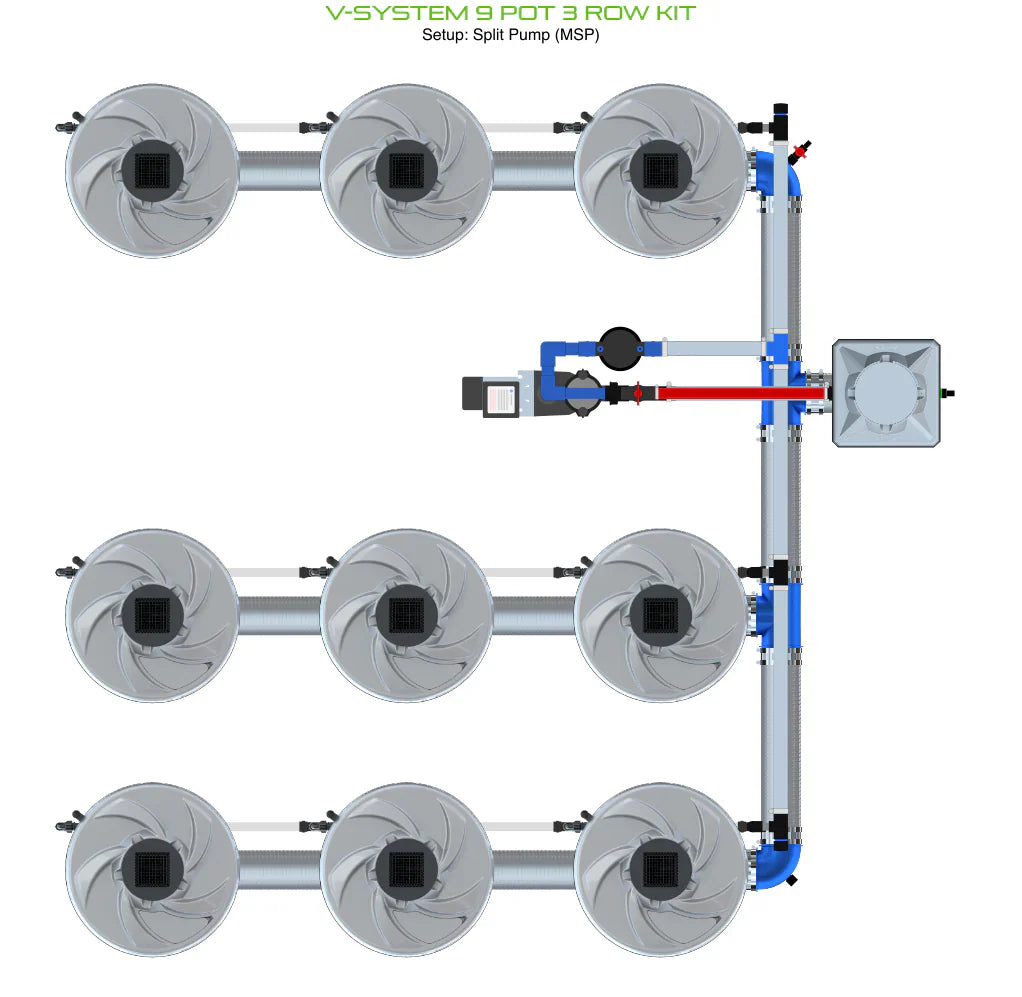

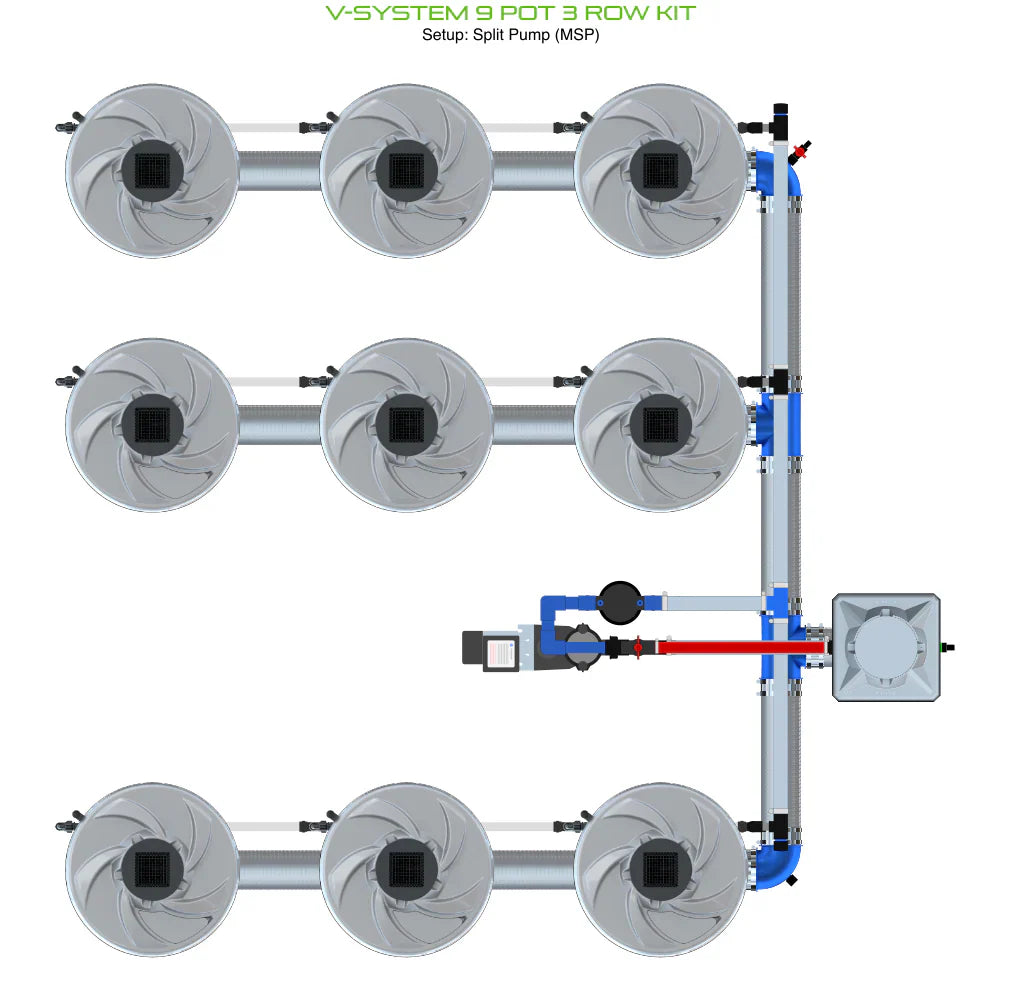

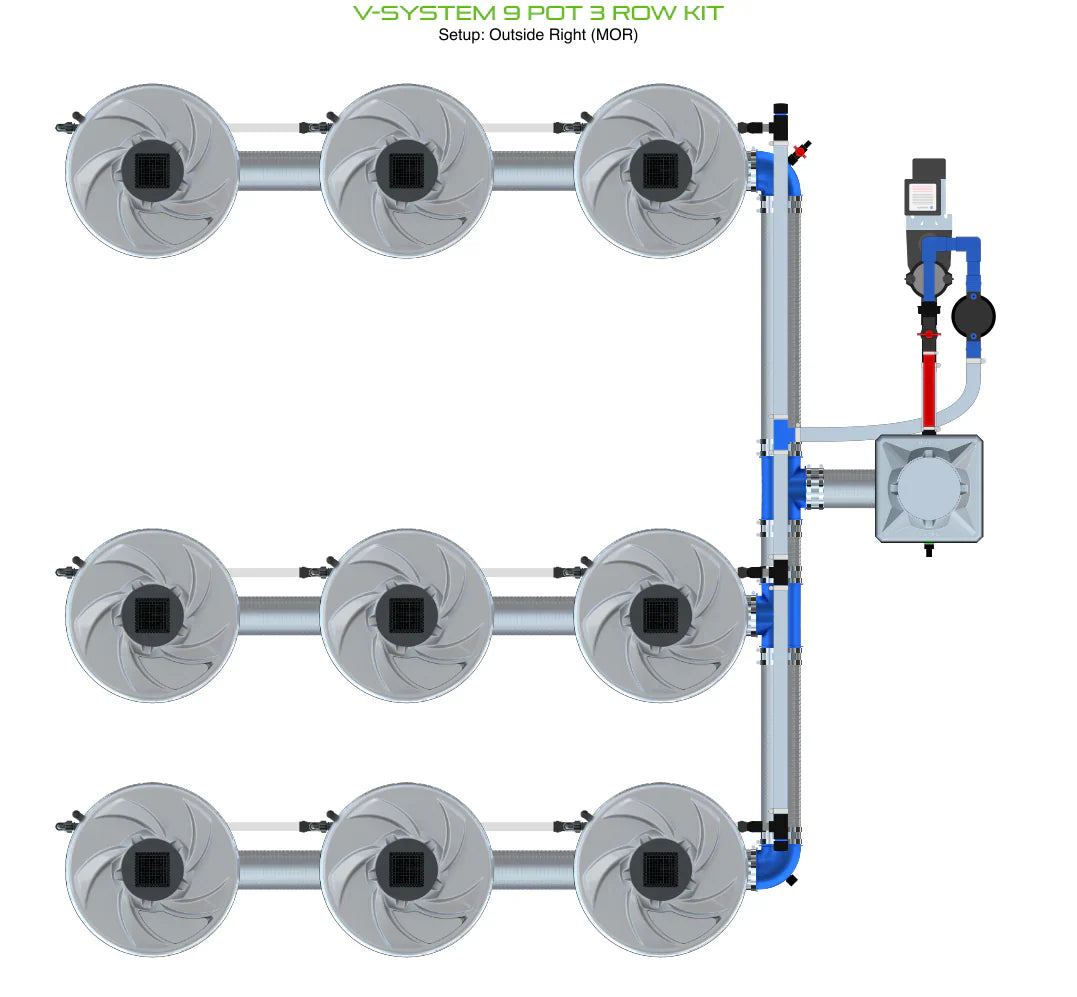

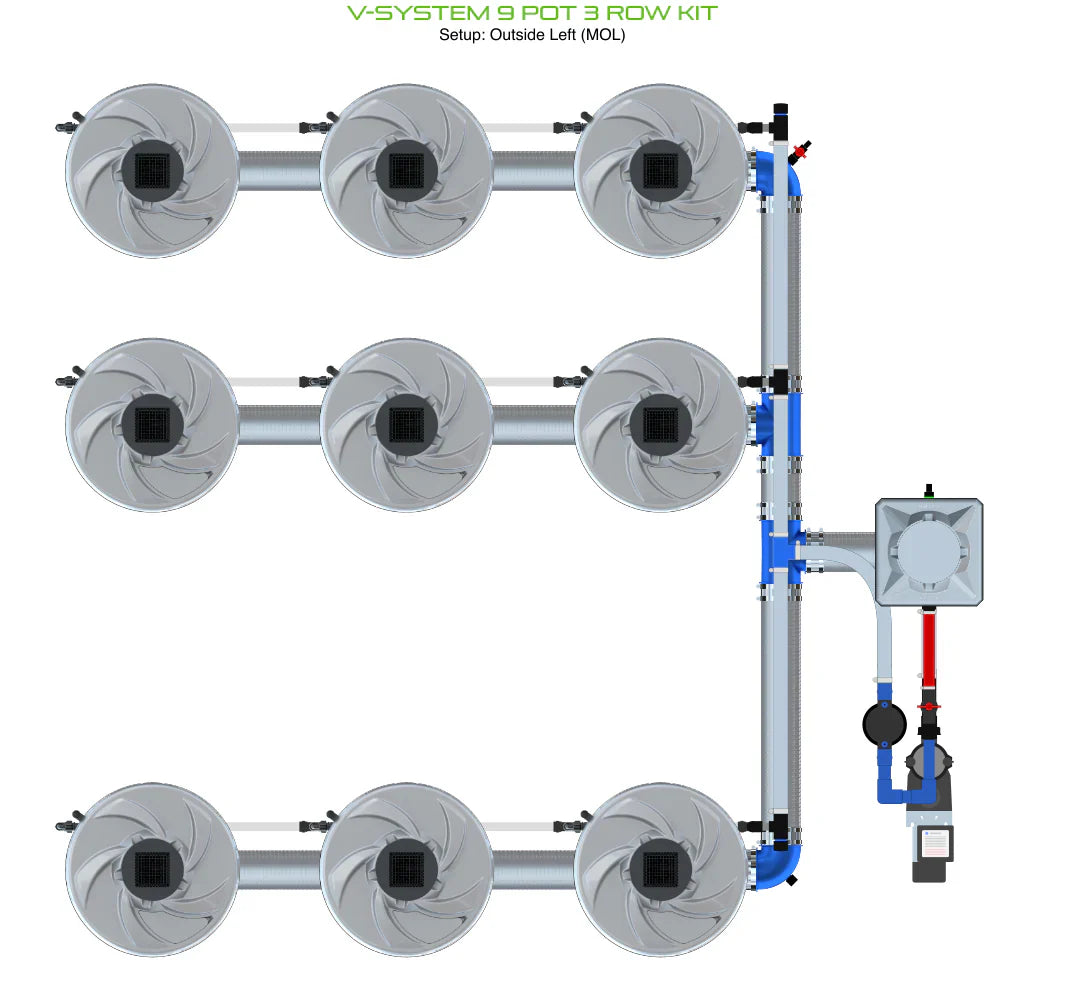

Setup Configuration: 1ML | 1MR

Length: Depends on kit configuration. | Depends on kit configuration.

Width: Depends on kit configuration. | Depends on kit configuration.

Maximum assembled size (can space pots more closely for a smaller footprint):

Water Pump Included with the Kit:

Depends on kit configuration.

Data Sheets

Download the instructions: here

Kit Contents

The V-SYSTEM 9 Pot 3 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

9 x V-Pot 58L

9 x V-Pot Base

9 x V-Pot Lid

9 x V-Pot Lid Inspection Cover

9 x Square Net Pot

9 x V-Pot Clip

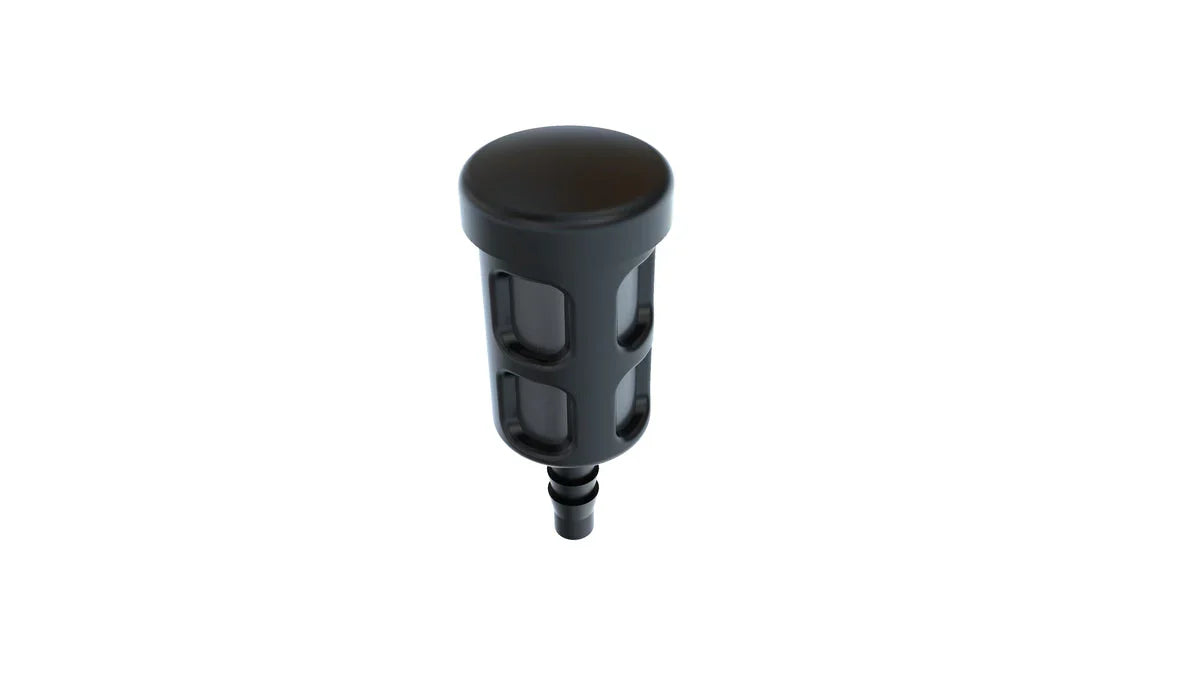

9 x Air Filter for V-SYSTEM Venturi, 6mm

9 x Silencer for Venturi

9 x Venturi Fitting

9 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

9 x Venturi Inlet Fitting for 22mm Pipe

10 x Nut 5"

10 x Washer 5" Green Silicone

26 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

3 x DM Push-Fit Elbow 22-15mm V-SYSTEM

3 x DM Push-Fit Elbow 22mm V-SYSTEM

6 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

4 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

9 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

4 x Pipe 40mm Silver 1 Meter Spiral

10 x Pipe 5" Silver Spiral 80cm

2 x Tee 5" Barbed

6 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Long

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

24 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

10 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

3 x Silicone Grease - Food Grade
