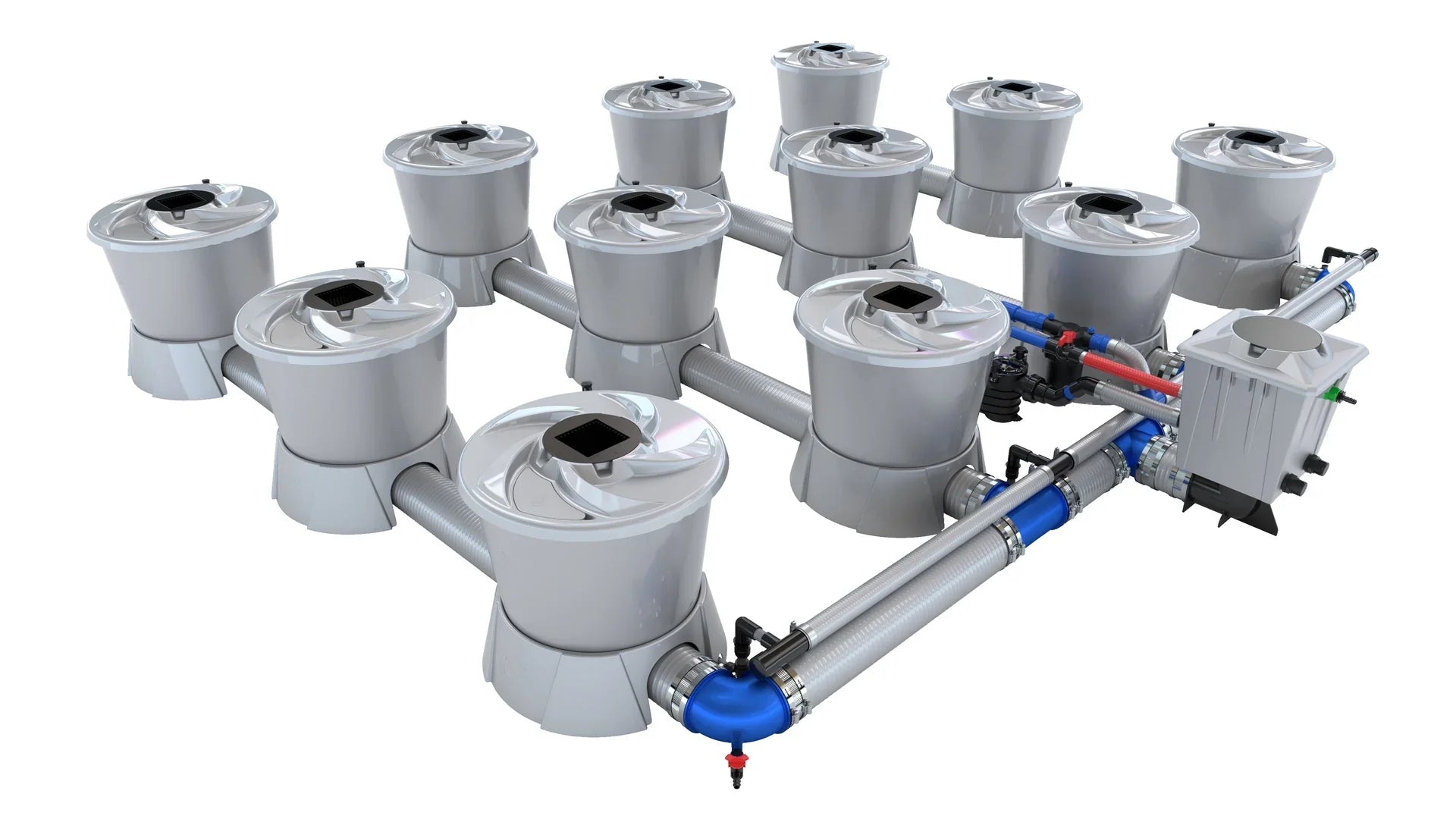

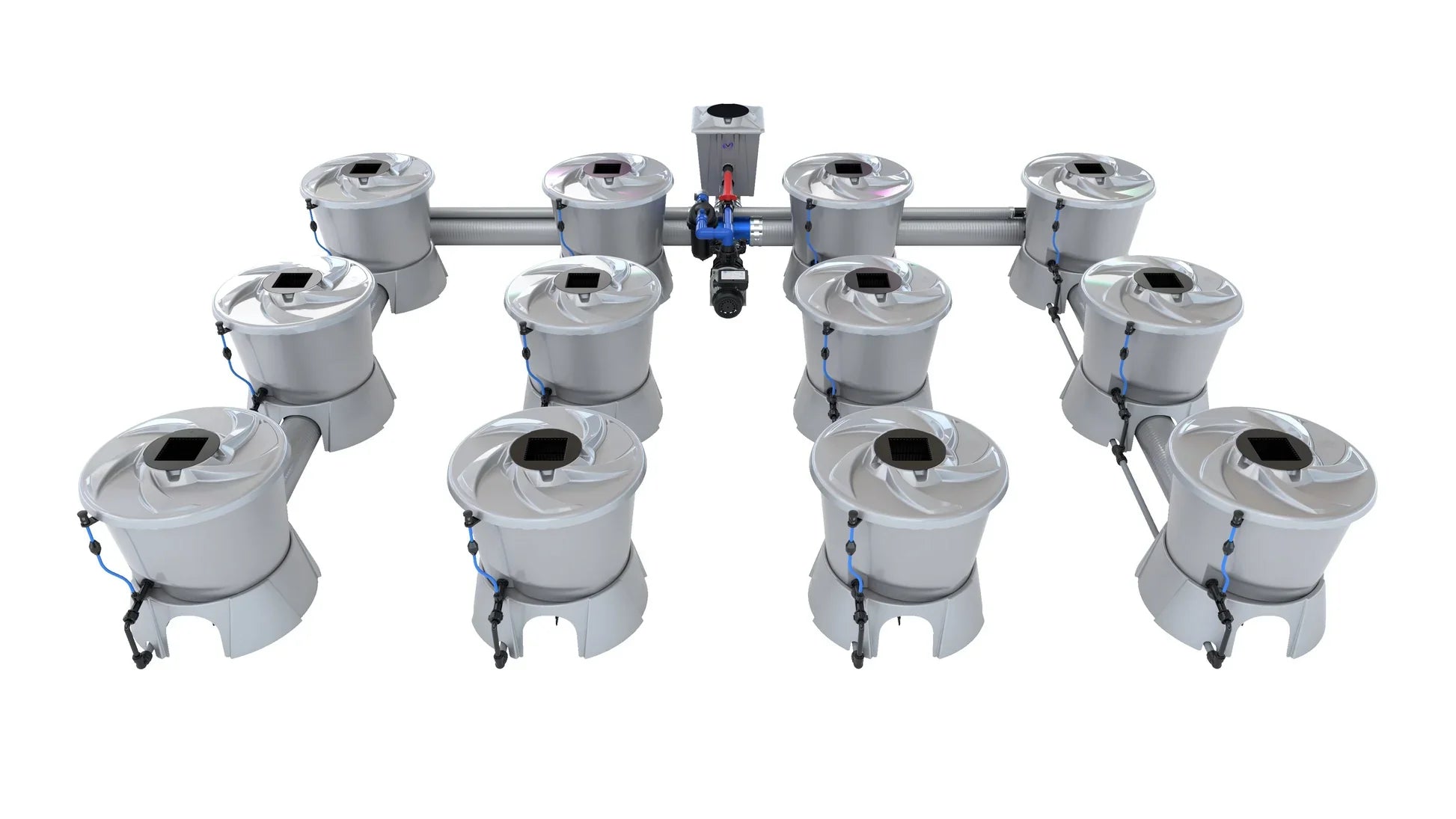

ALIEN Hydroponics V-SYSTEM 12 Pot 4 Row Kit

Description

Key V-SYSTEM Benefits: Key V-SYSTEM Benefits:

Direct Nutrient Distribution: The V-SYSTEM offers thorough and direct distribution of nutrients, ensuring the optimal growth conditions for your plants.

Maximum Oxygen Saturation: No additional air pump is needed as the system ensures maximum oxygen saturation, promising healthy plant growth.

No Heat Transferred: The system operates efficiently without transferring heat, preserving the ideal temperature for your plants.

Vortex Fluid Motion: The dynamic vortex fluid motion facilitates nutrient distribution and oxygen saturation.

Naturally Aspirated: The system naturally aspirates, reducing the need for extra equipment and maintenance.

Key V-SYSTEM Features: Key V-SYSTEM Features:

15 Gallon (58L) V-POT: The generously-sized V-POT allows for the growth of large, robust plants.

Water Fill Line and Total-Drainage Bases: The system includes a water fill line and total-drainage bases, avoiding overwatering problems and ensuring that pots and system completely drain.

Venturi Injectors: The venturi injectors ensure an efficient nutrient mixture for your plants.

5" Spiral Tubing with 5" Dual-Flow Fittings: The 5" spiral tubing and matching Dual-Flow fittings allow for smooth nutrient and water circulation.

Additional Features Include: Inspection Covers, Integrated Filtration, T304 Stainless Clamps, Heavy-duty Components, Push-fit Feed Connections, JET-STREAM Vortex Pump. All parts are made with high standards in Britain, promising durability and extended lifespan.

Specifications

Number of pots: Depends on configuration

Number of rows: Depends on configuration

Kit Total Fluid Volume: Depends on configuration

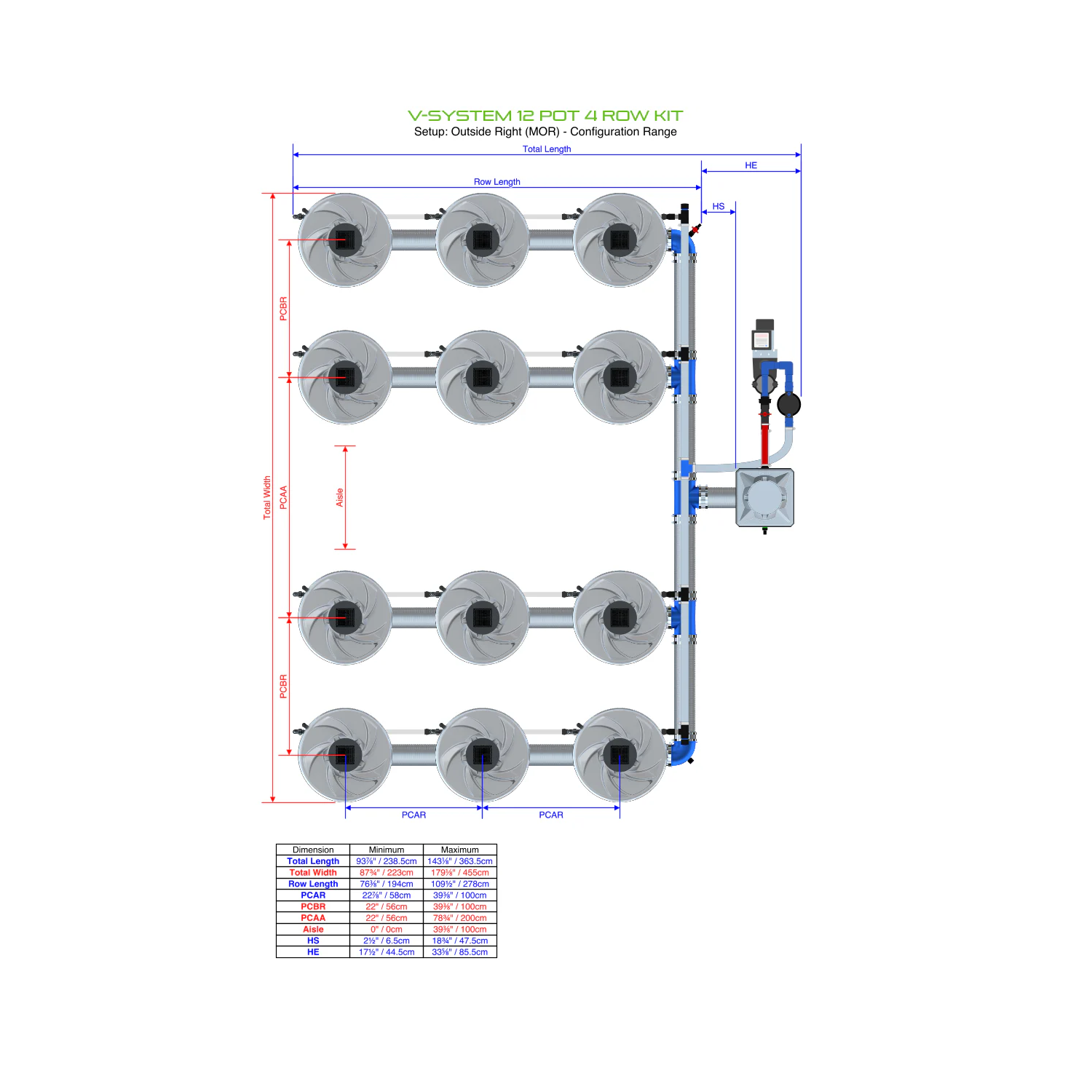

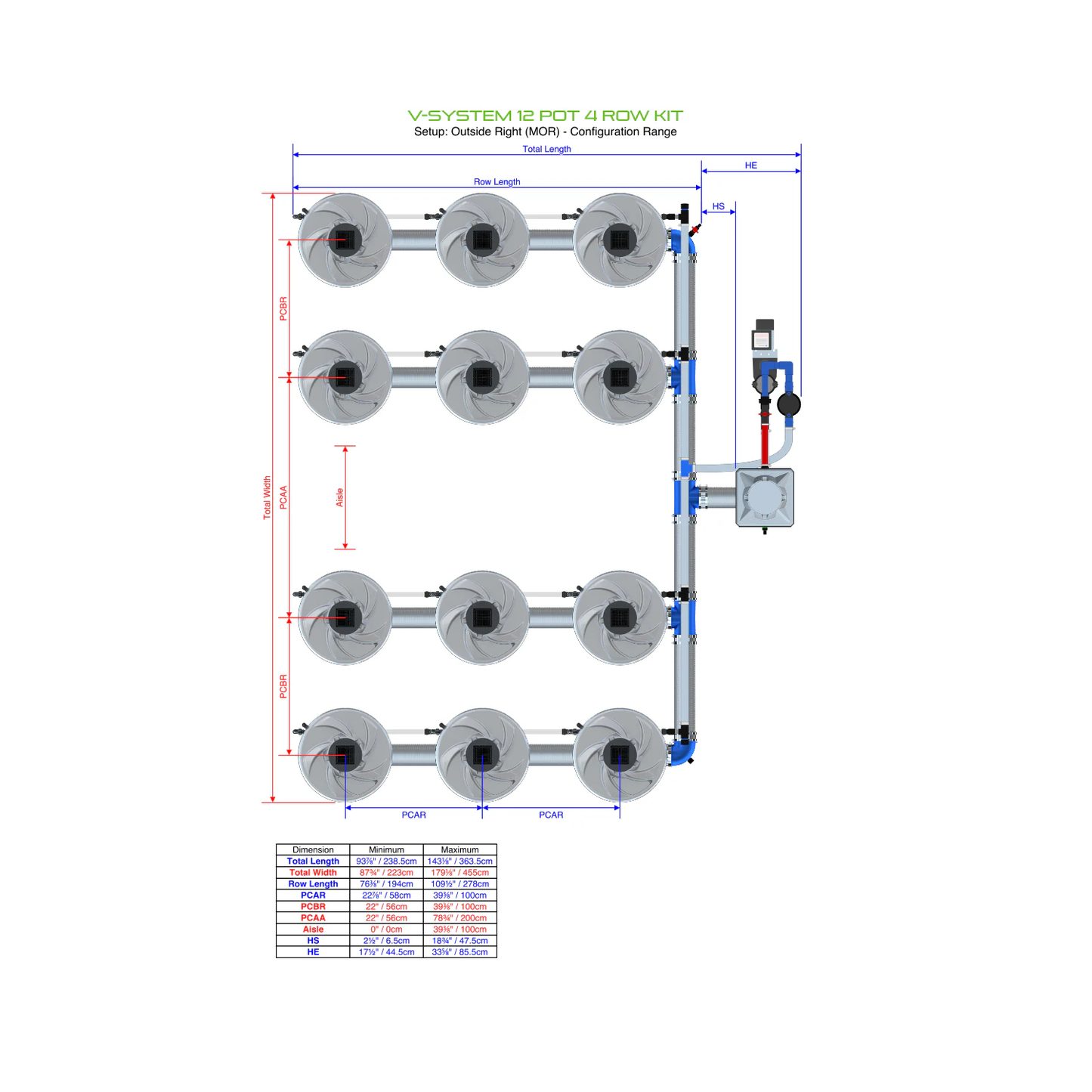

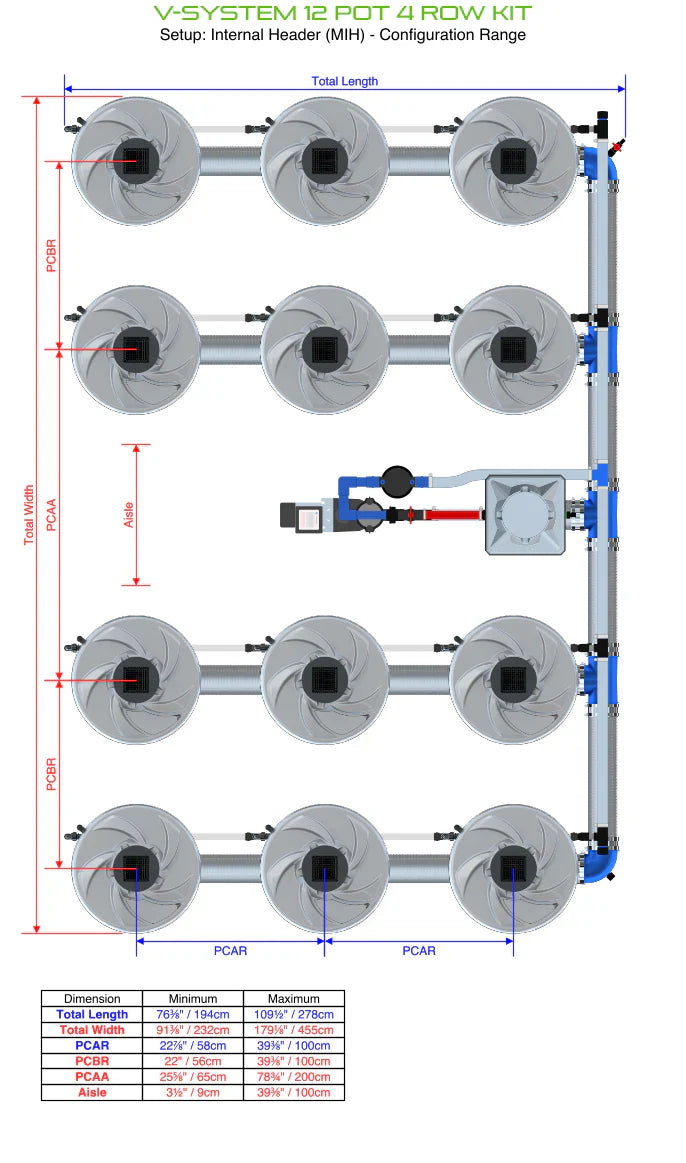

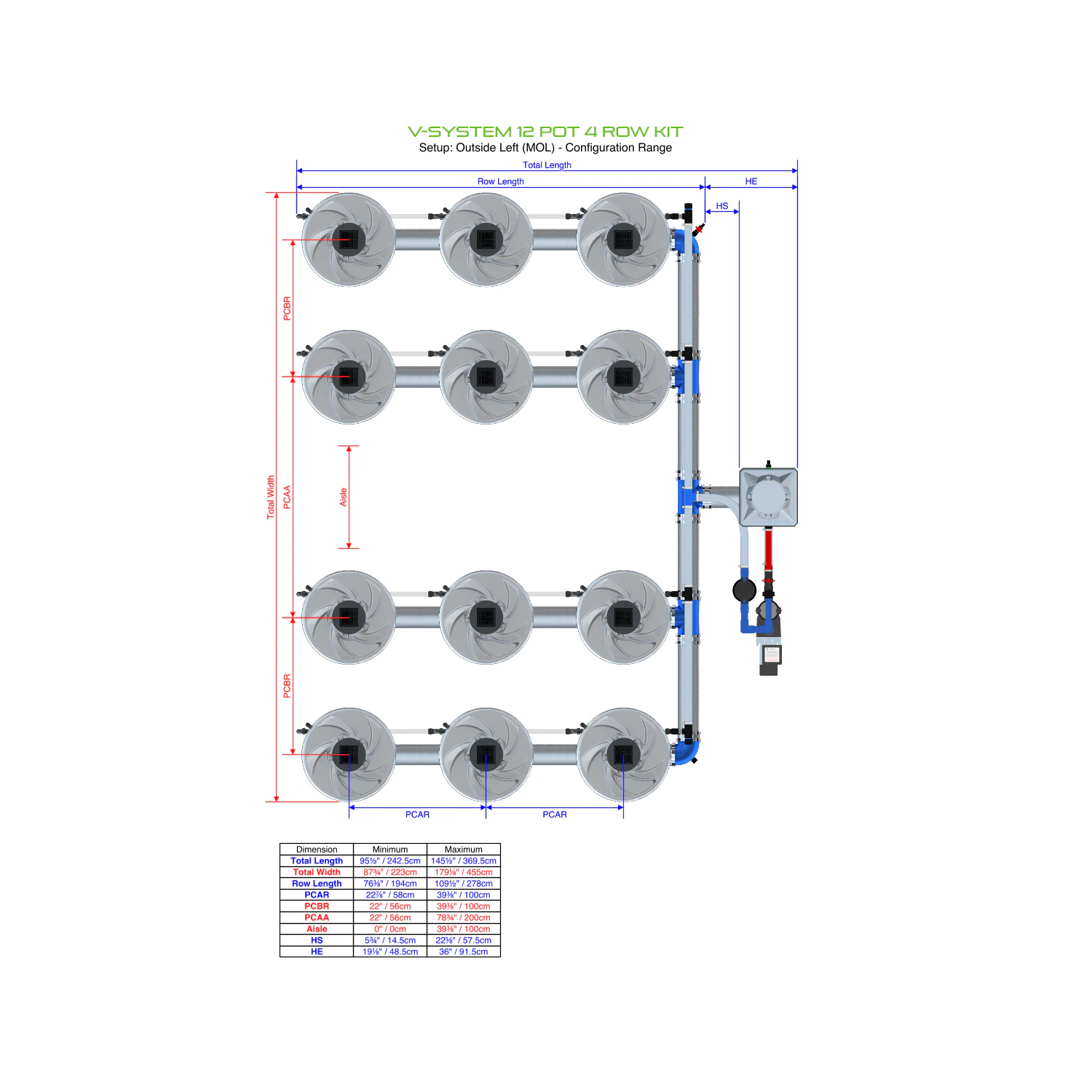

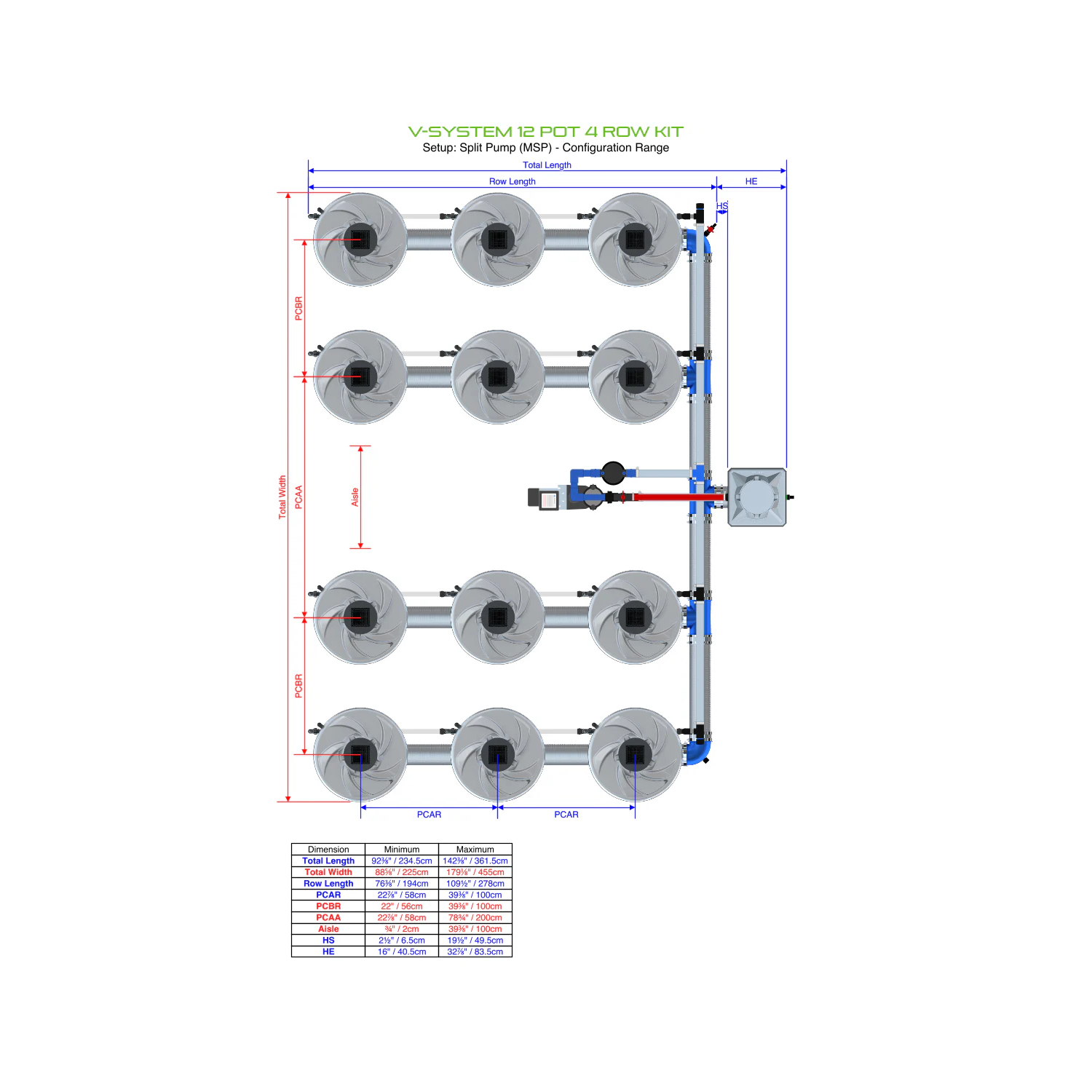

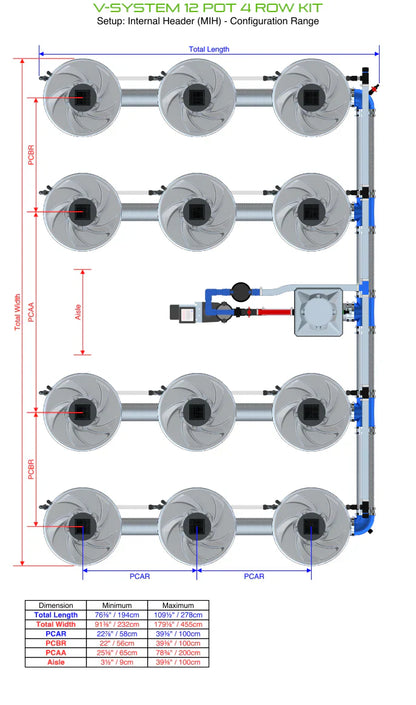

Minimum assembled size (can space pots more widely for a larger footprint):

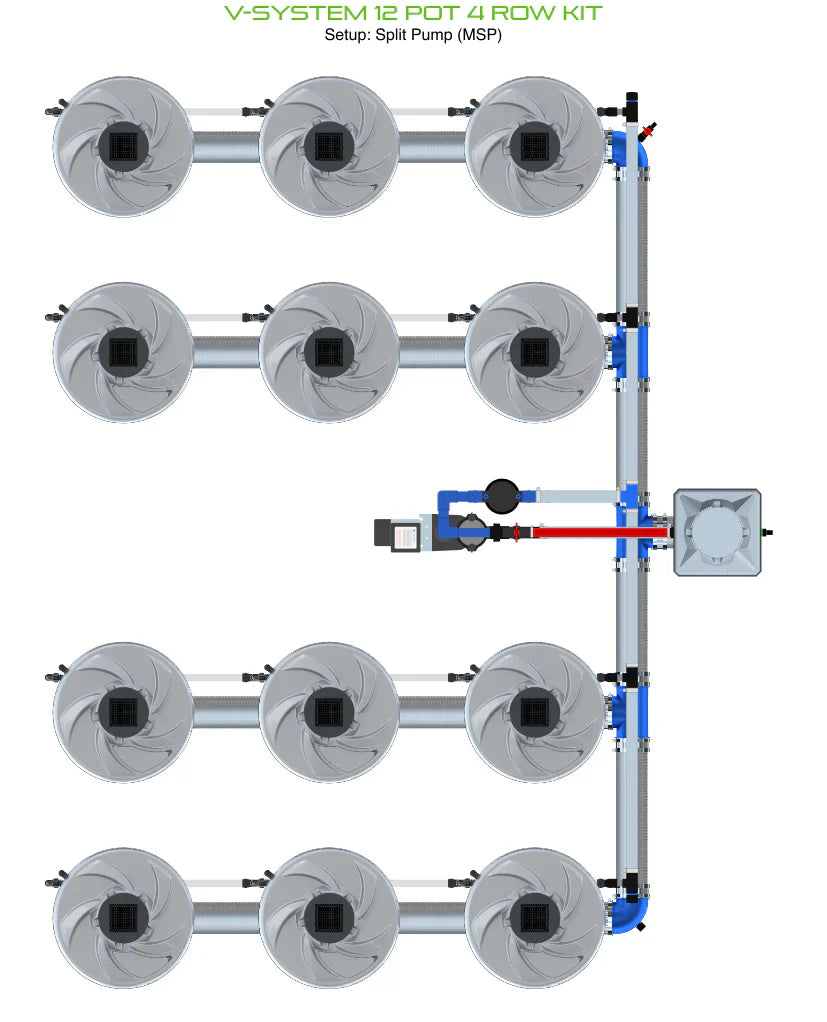

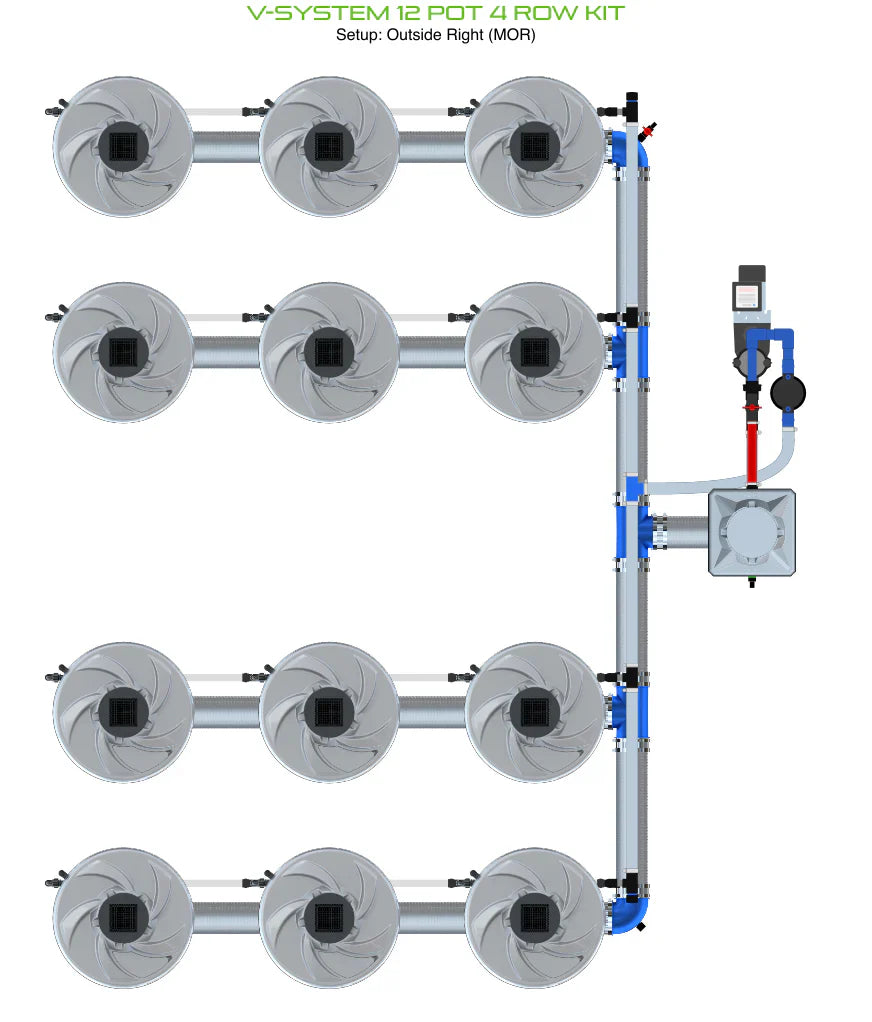

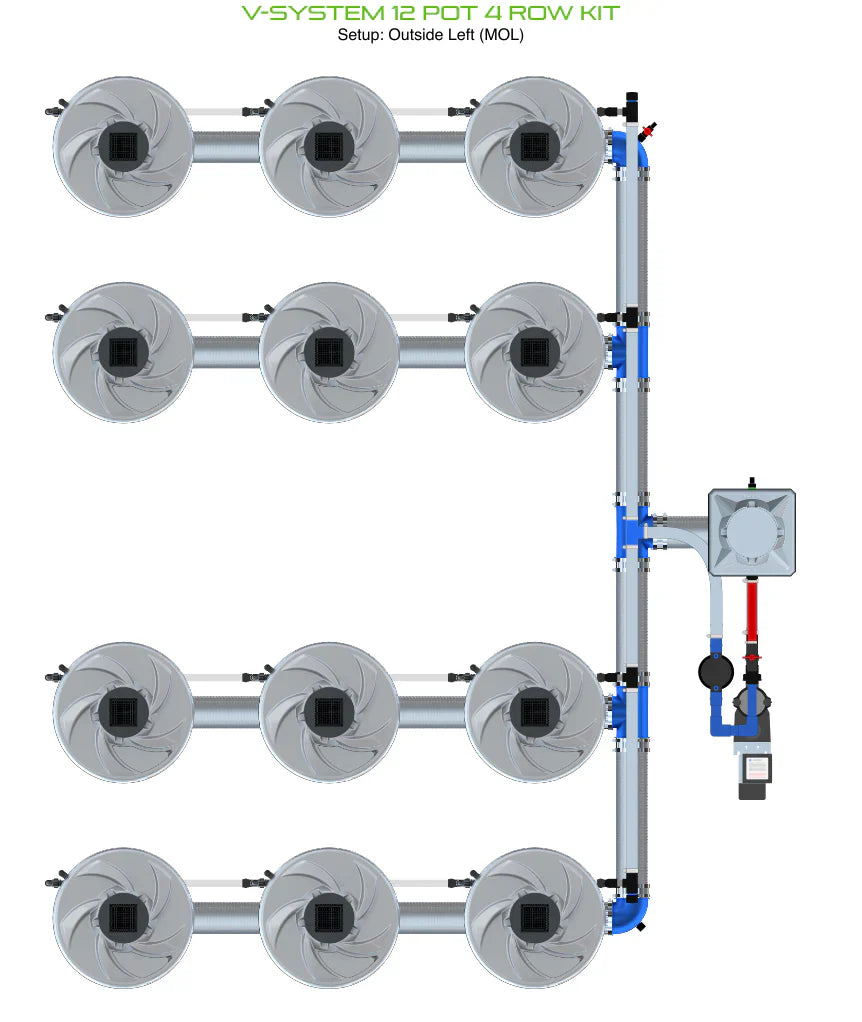

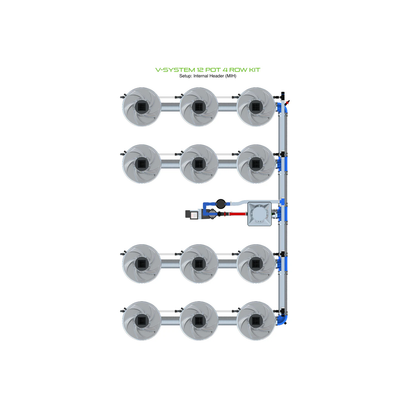

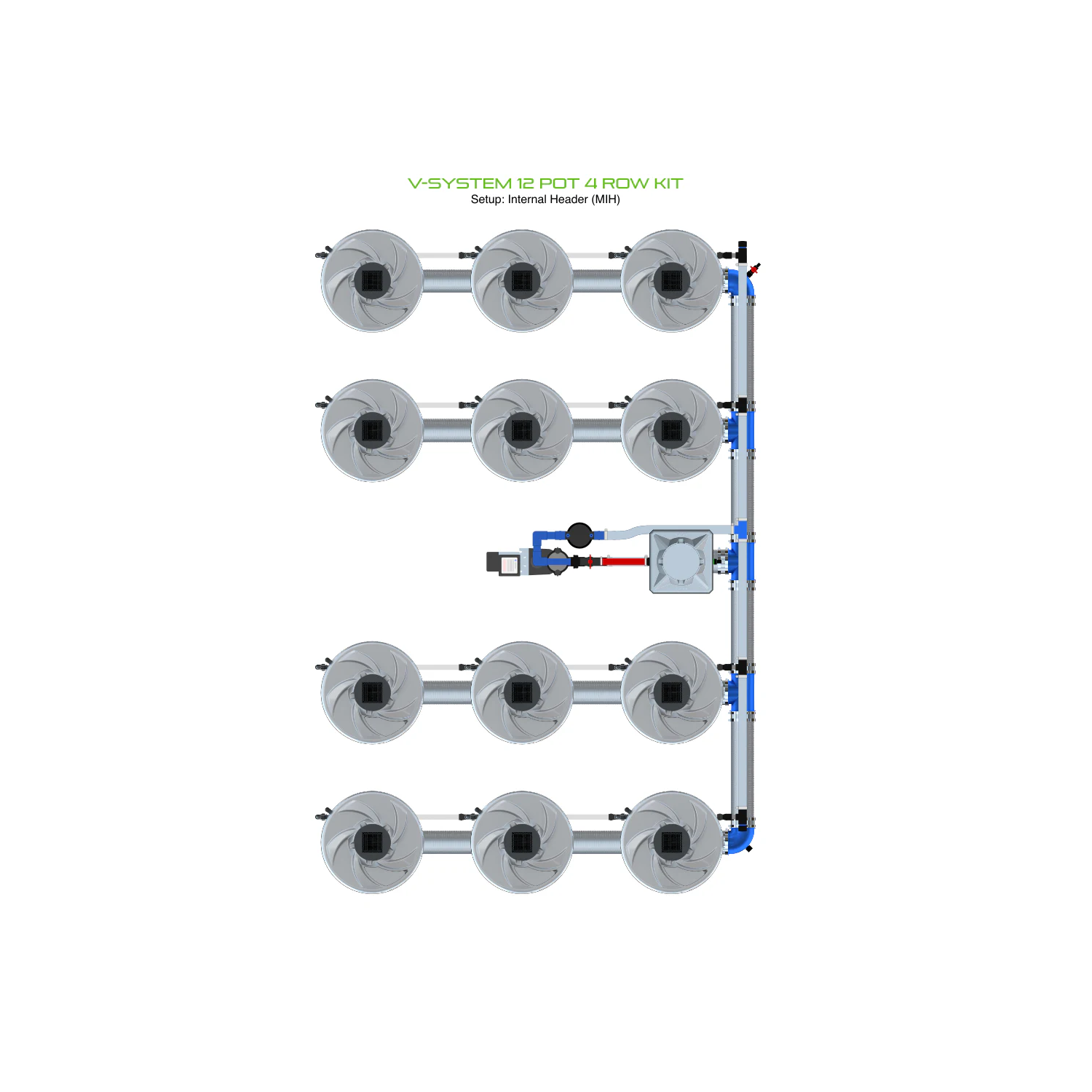

Setup Configuration: 1ML | 1MR

Length: Depends on kit configuration. | Depends on kit configuration.

Width: Depends on kit configuration. | Depends on kit configuration.

Maximum assembled size (can space pots more closely for a smaller footprint):

Water Pump Included with the Kit:

Depends on kit configuration.

Data Sheets

Download the instructions: here

Kit Contents

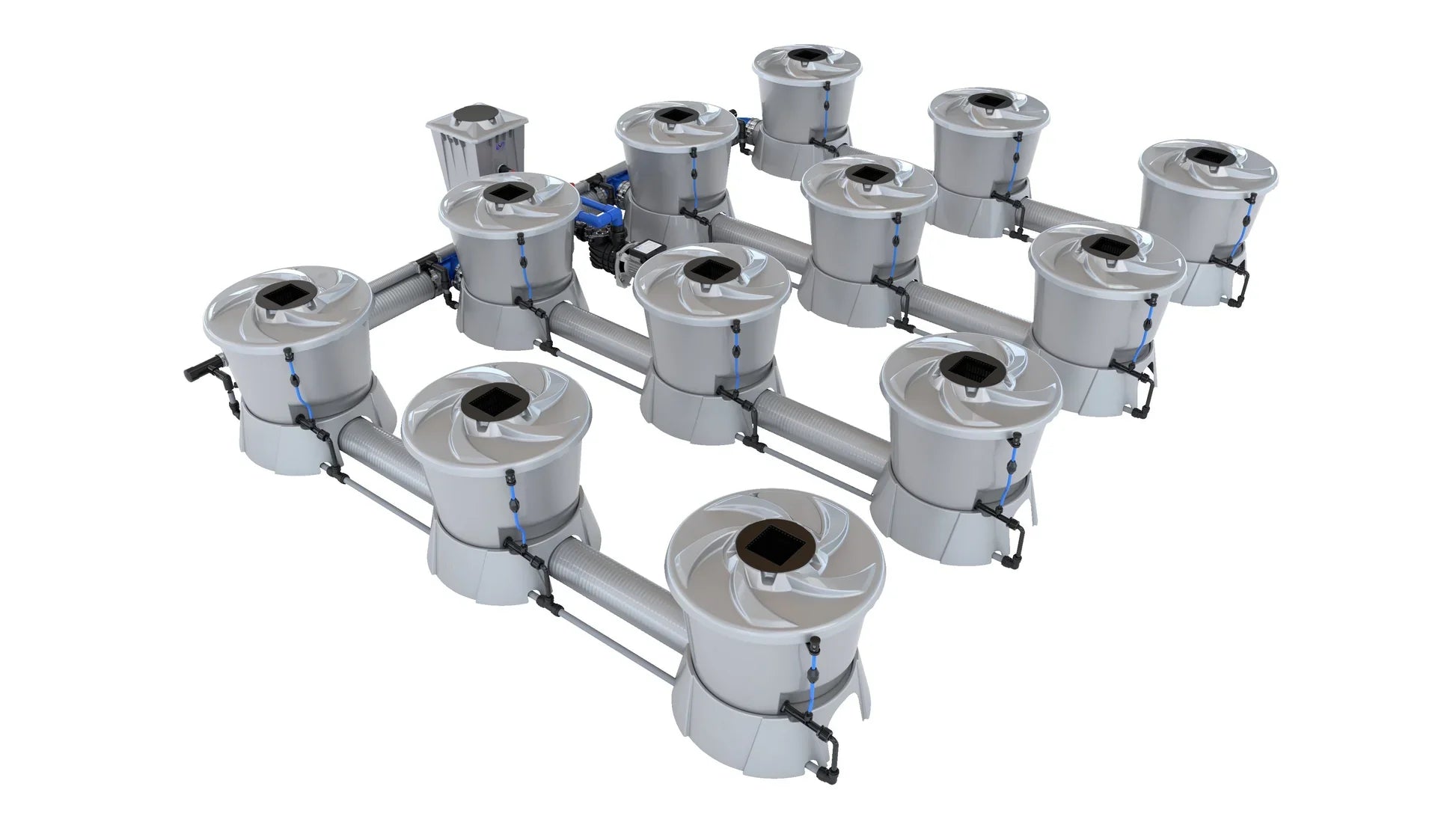

The V-SYSTEM 12 Pot 4 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

12 x V-Pot 58L

12 x V-Pot Base

12 x V-Pot Lid

12 x V-Pot Lid Inspection Cover

12 x Square Net Pot

12 x V-Pot Clip

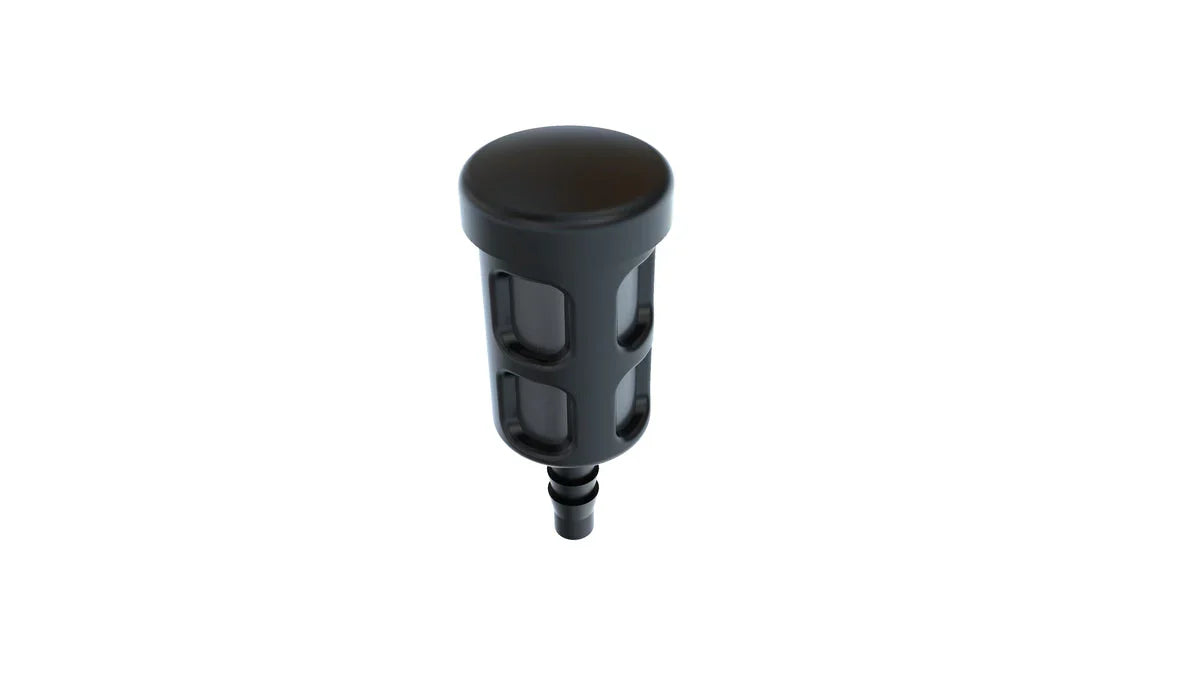

12 x Air Filter for V-SYSTEM Venturi, 6mm

12 x Silencer for Venturi

12 x Venturi Fitting

12 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

12 x Venturi Inlet Fitting for 22mm Pipe

13 x Nut 5"

13 x Washer 5" Green Silicone

34 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

4 x DM Push-Fit Elbow 22-15mm V-SYSTEM

4 x DM Push-Fit Elbow 22mm V-SYSTEM

8 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

5 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

12 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

5 x Pipe 40mm Silver 1 Meter Spiral

14 x Pipe 5" Silver Spiral 80cm

3 x Tee 5" Barbed

8 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Long

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

2 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

32 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

12 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

3 x Silicone Grease - Food Grade
