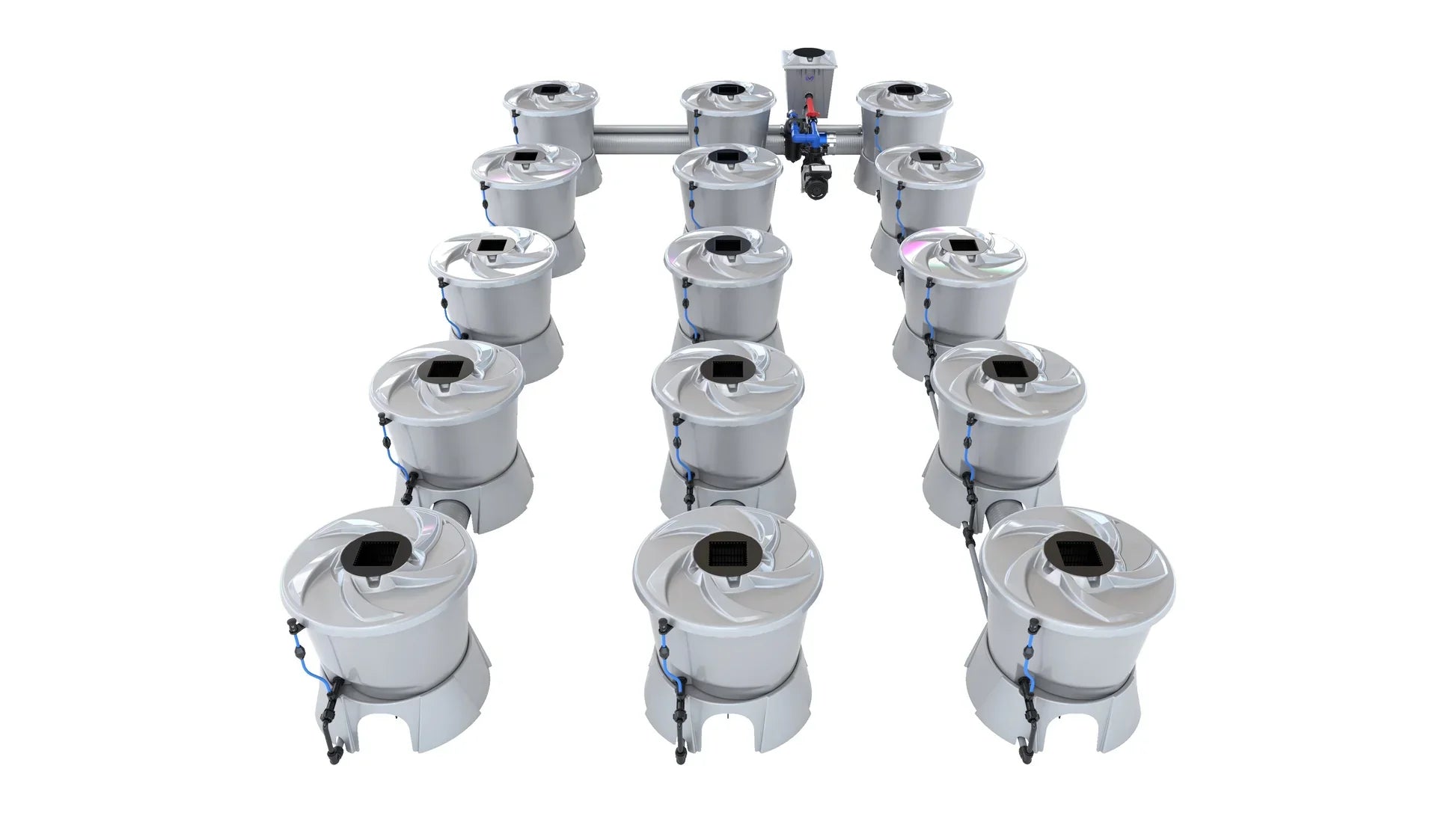

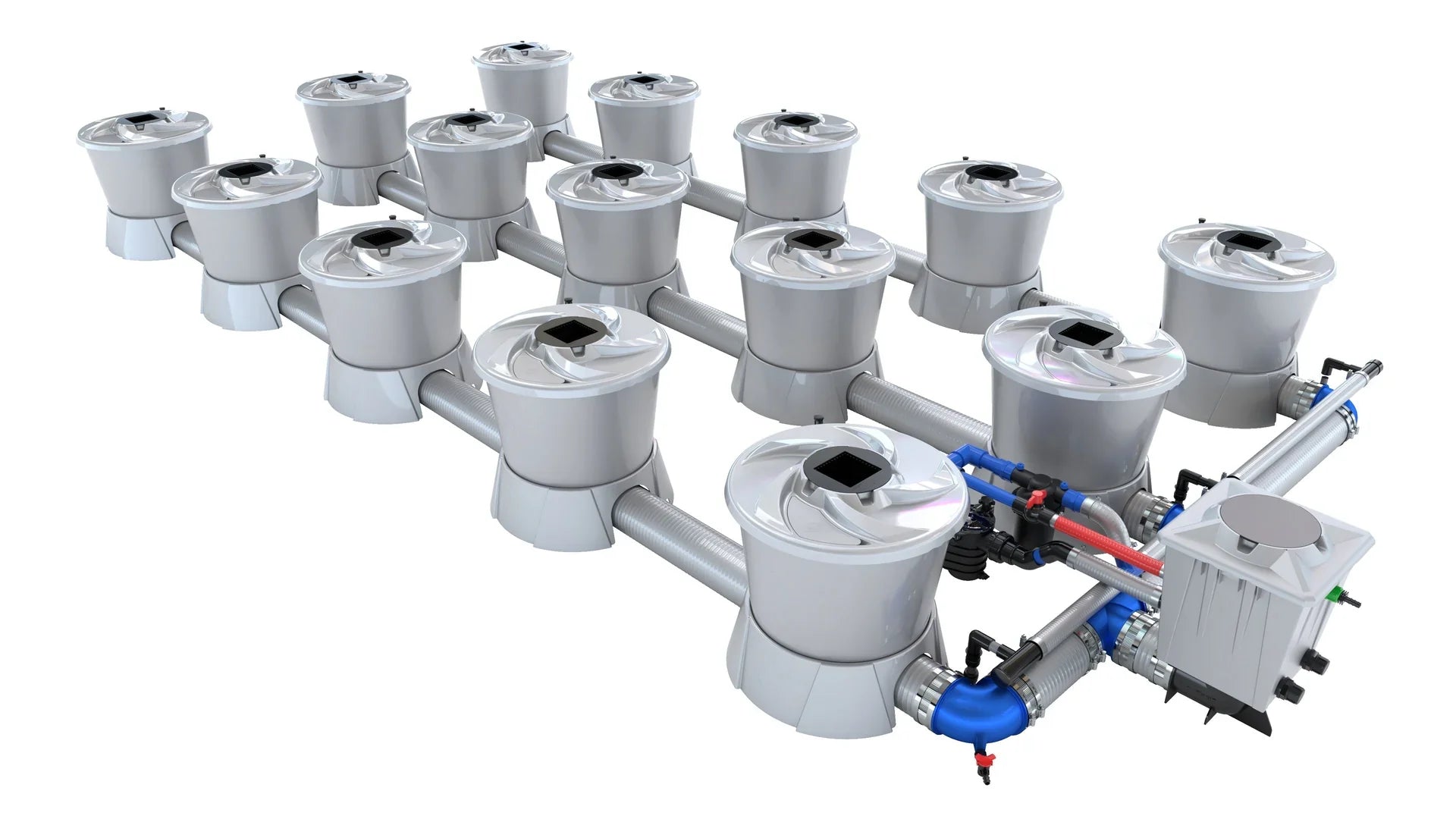

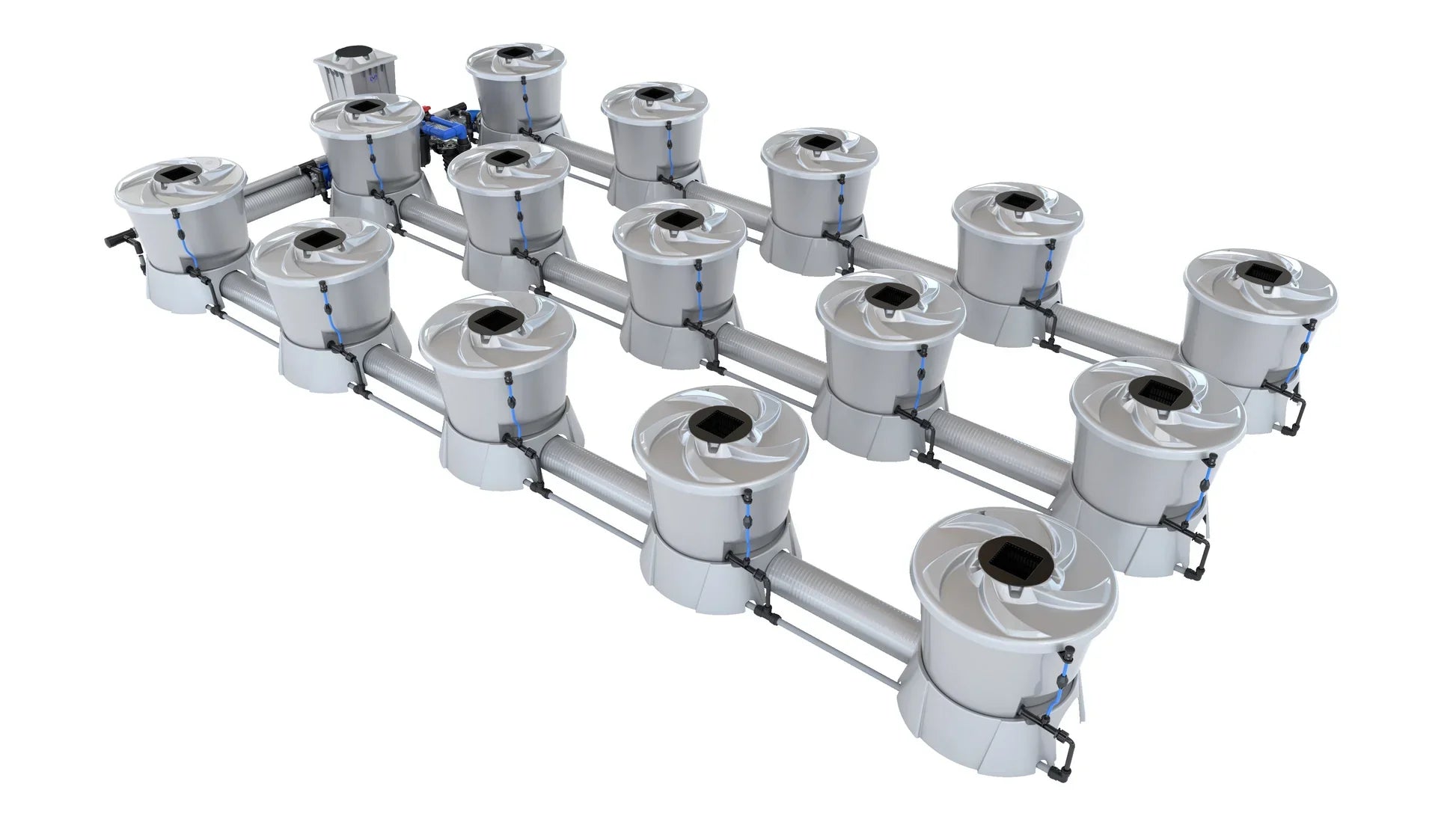

ALIEN Hydroponics V-SYSTEM 15 Pot 3 Row Kit

ALIEN Hydroponics V-SYSTEM 15 Pot 3 Row Kit

$5,564.02 USD
$0.00 USD $5,564.02 USD
Sale Sold out
Shipping calculated at checkout.
Description
  • Key V-SYSTEM Benefits: This system offers direct nutrient distribution and maximum oxygen saturation. No air pump is needed, and no heat is transferred. Vortex fluid motion is a key benefit of the system, and it is naturally aspirated. The V-SYSTEM supports large plants, and the pots and system completely drains. This helps prevent root clogging. It's made in Britain.

  • Key V-SYSTEM Features: The V-SYSTEM features a 15 gallon (58L) V-POT, and a water fill line for ease of use. It also includes total-drainage bases and Venturi injectors. Inspection covers are incorporated for easy system checks and it houses 5" spiral tubing. The system uses 5" Dual-Flow fittings for optimal flow. Integrated filtration ensures cleanliness of the system. T304 Stainless clamps secure the system and it includes heavy-duty components for longevity. It uses push-fit feed connections for ease of use. The system is powered by a JET-STREAM Vortex pump.
    • Specifications
  • Number of pots: Depends on configuration
  • Number of rows: Depends on configuration
  • Kit Total Fluid Volume: Depends on configuration

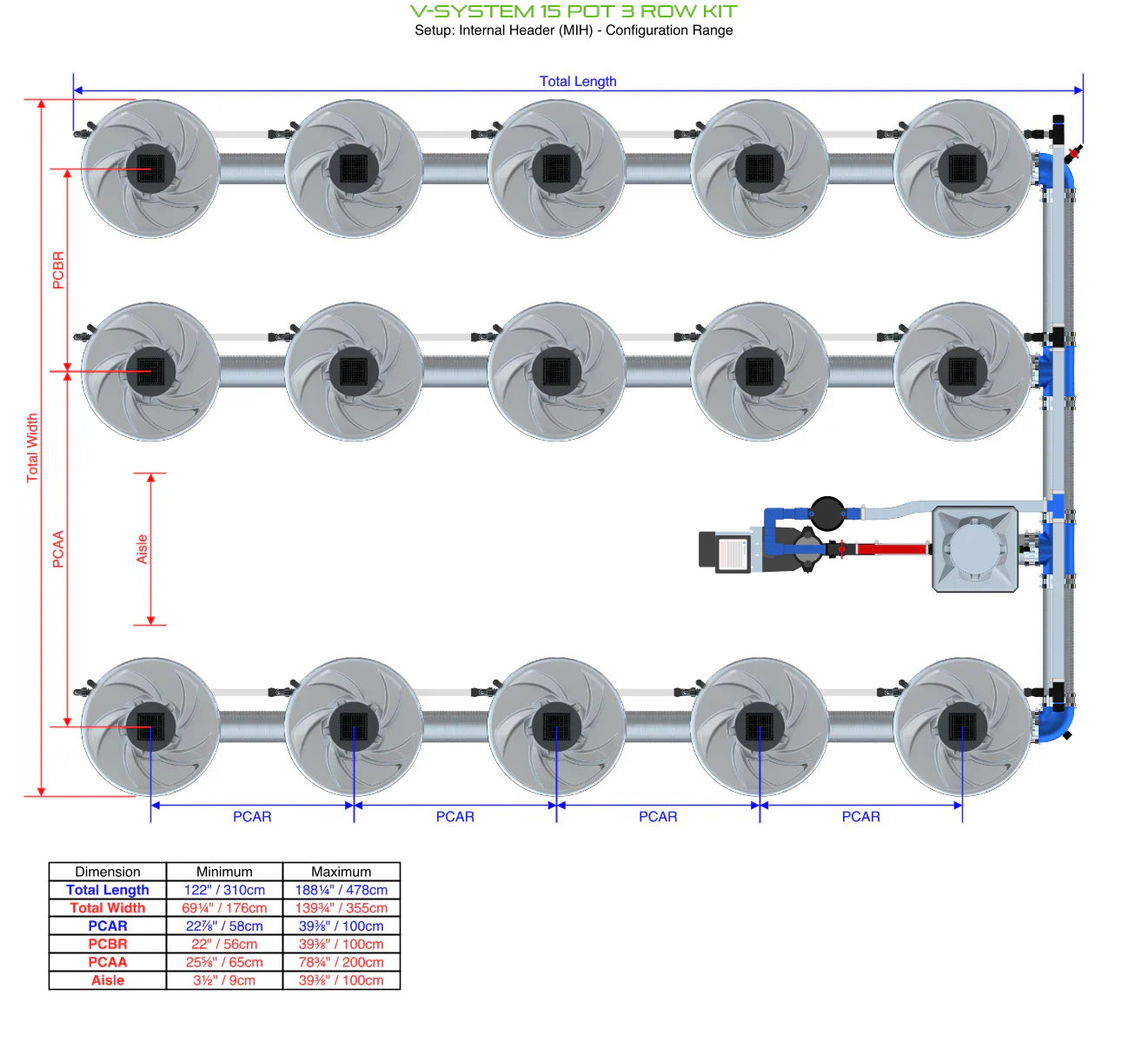

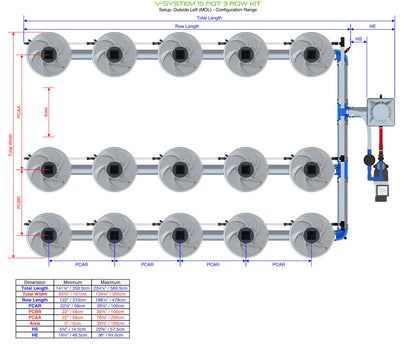

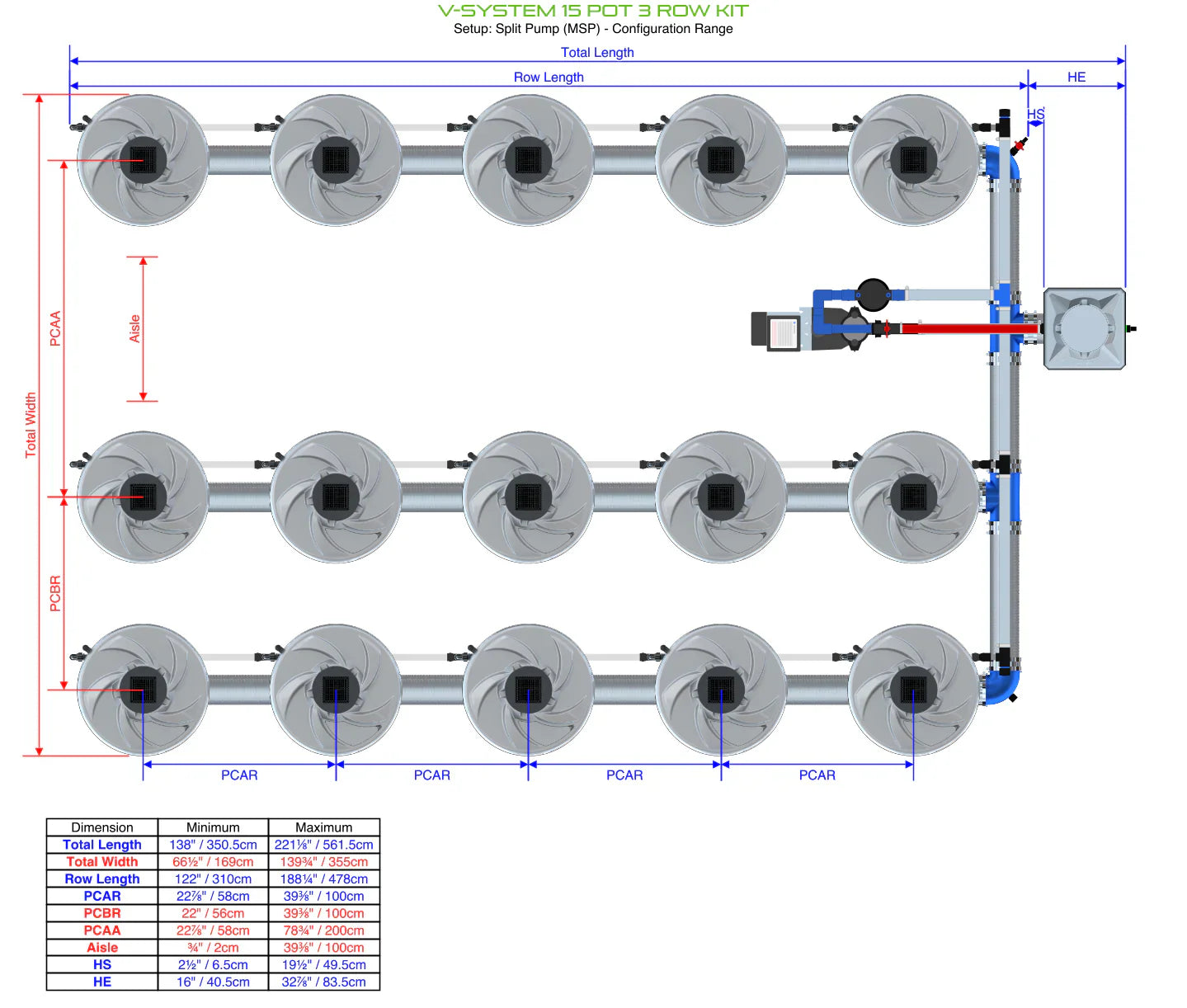

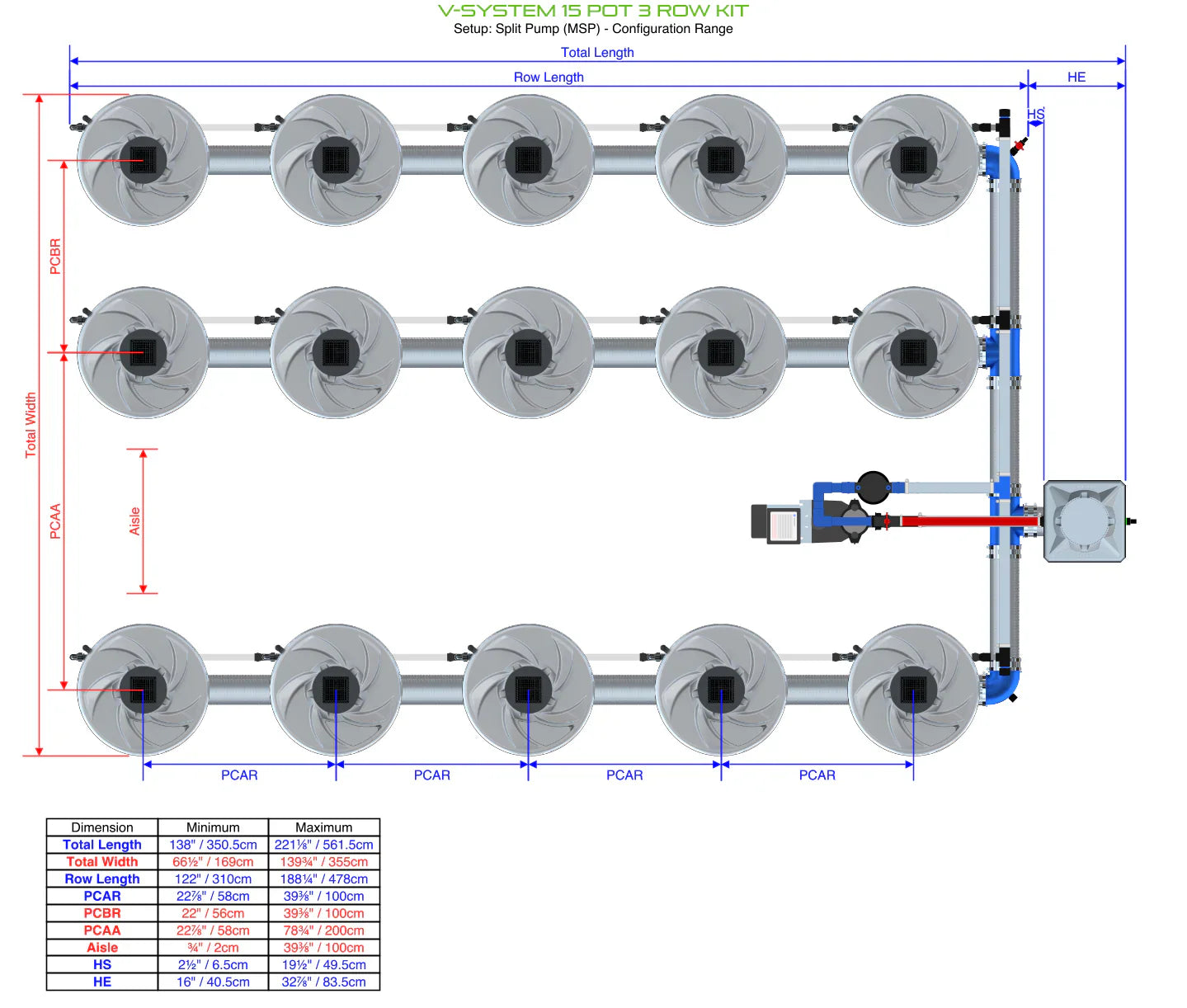

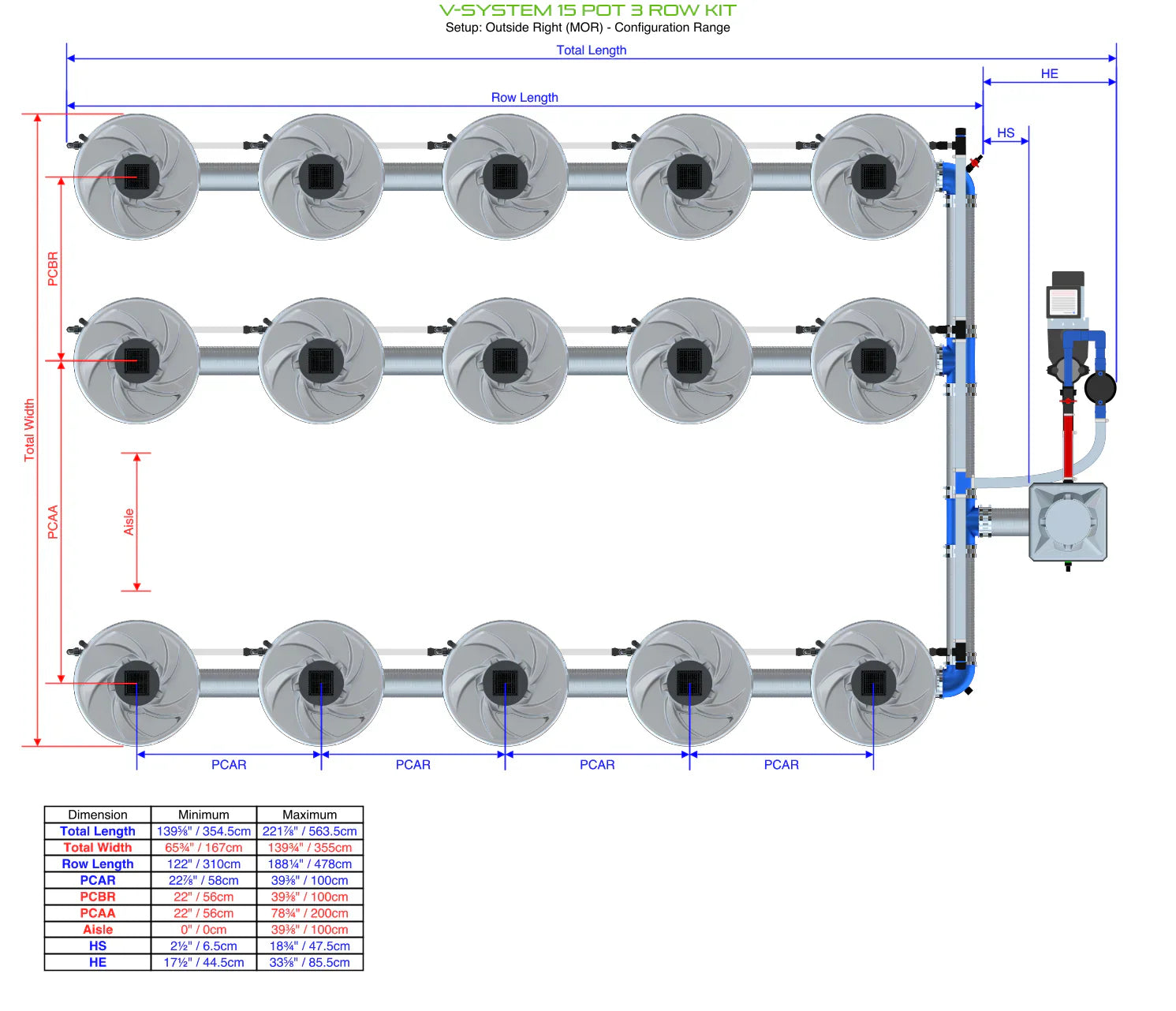

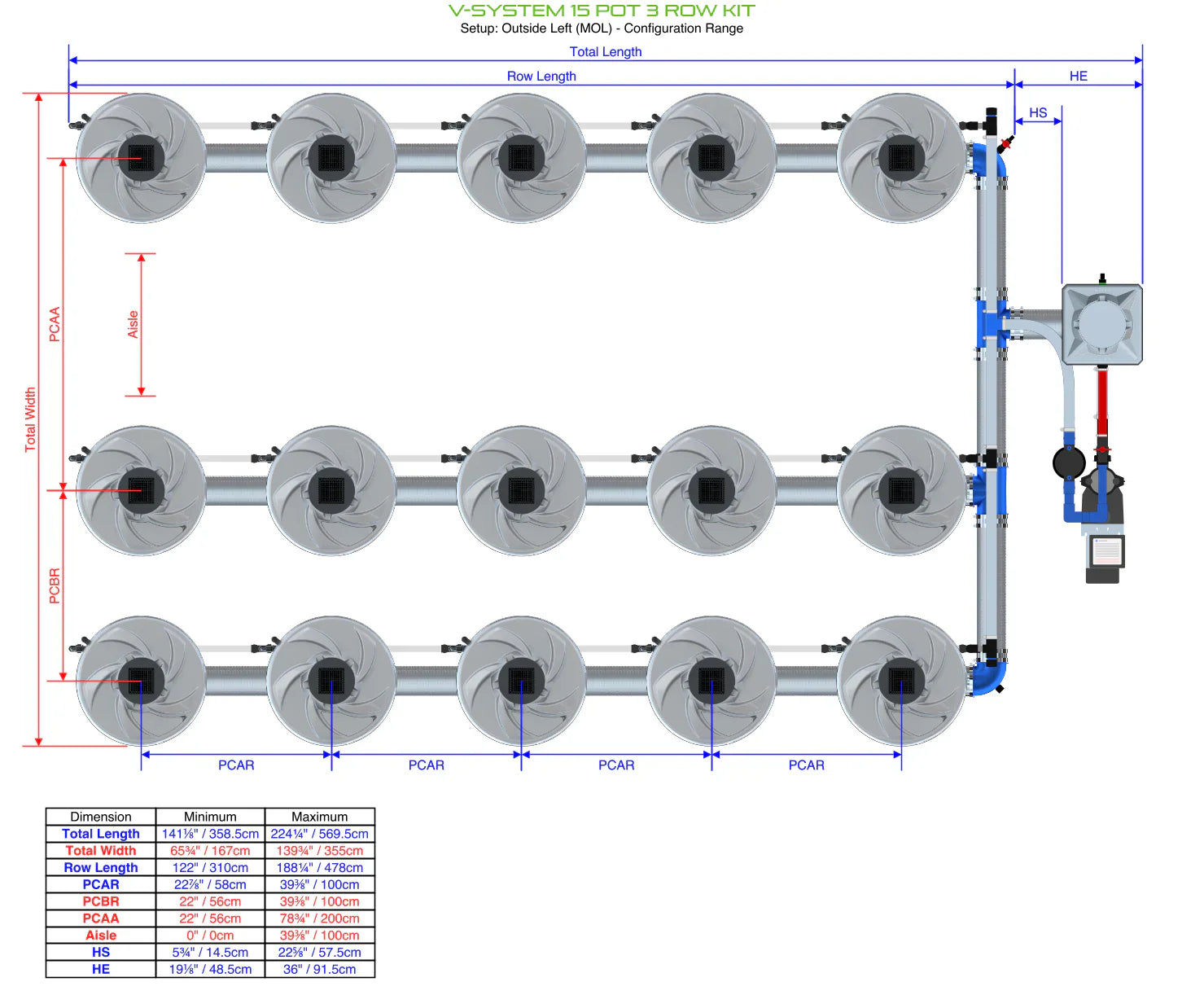

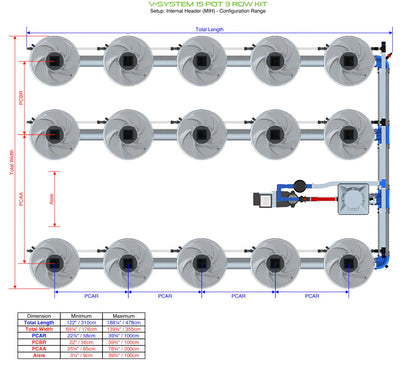

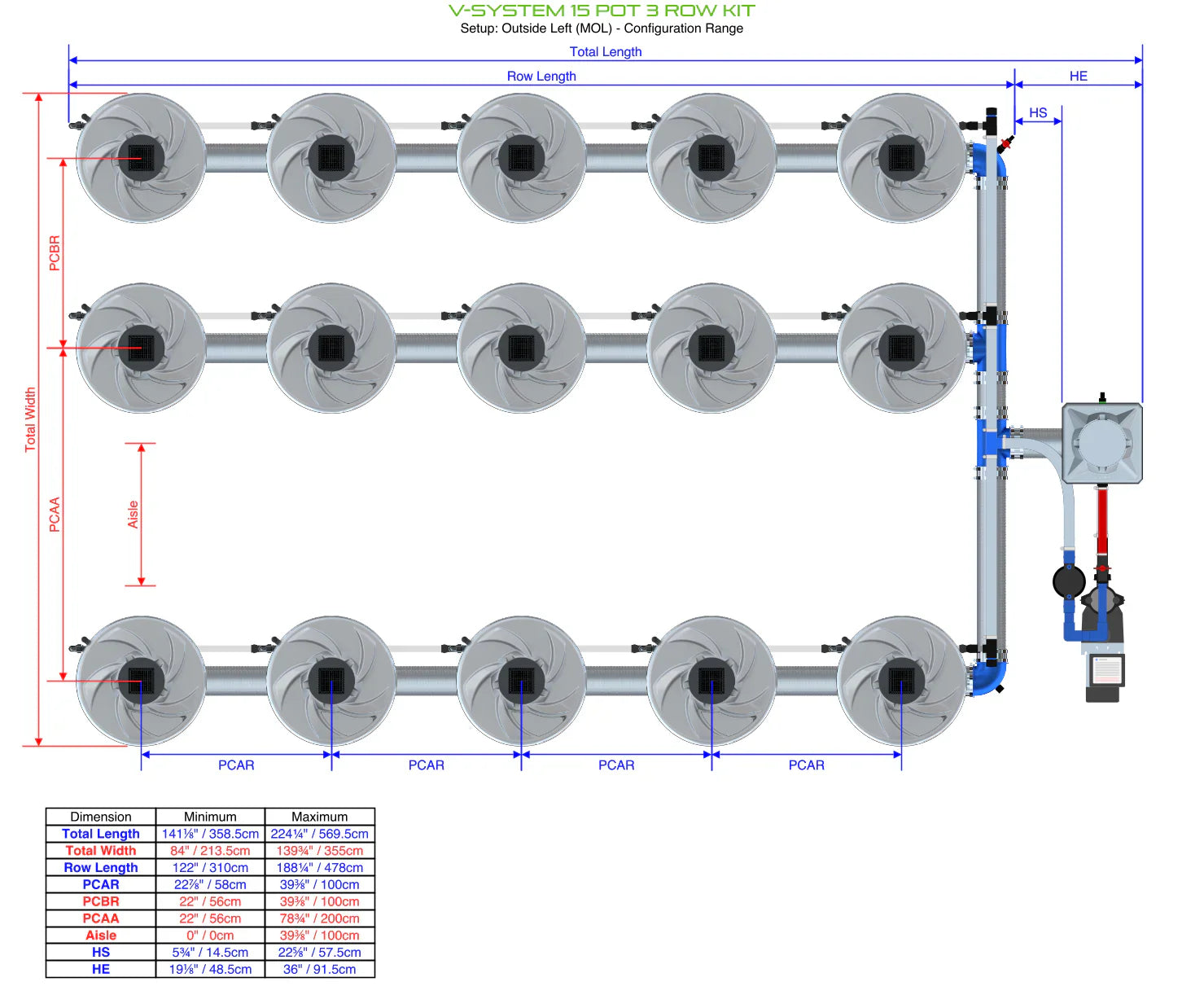

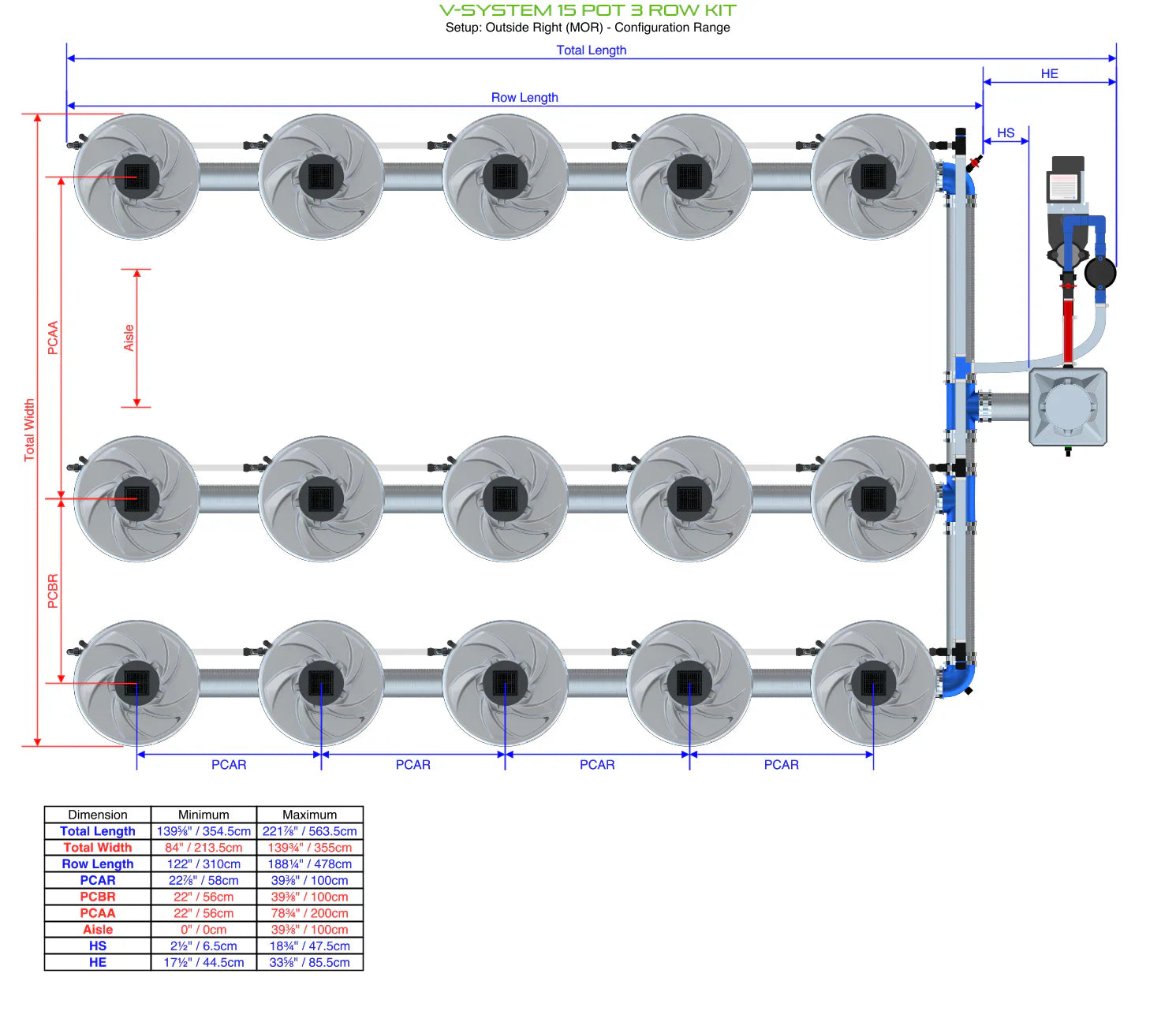

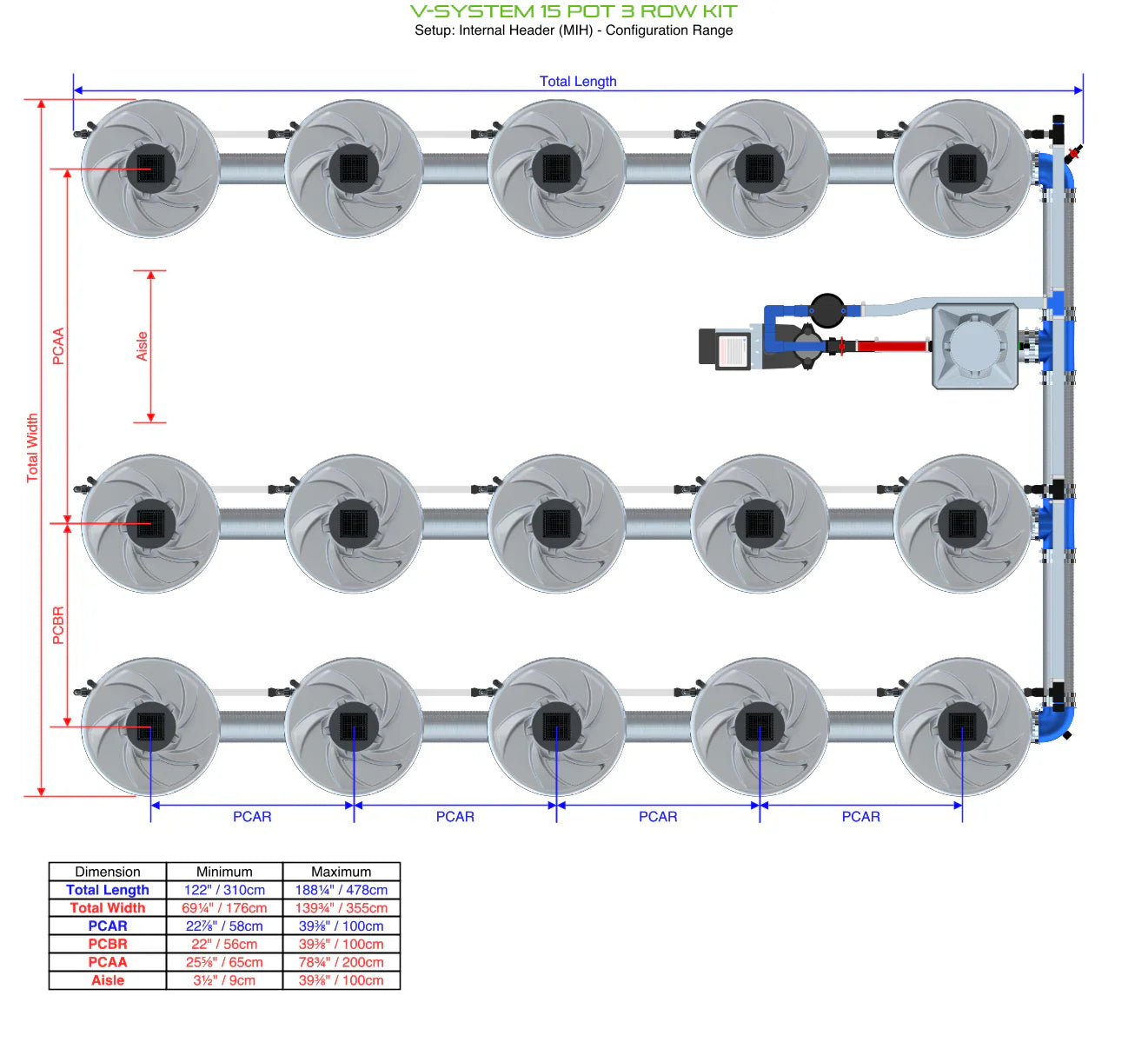

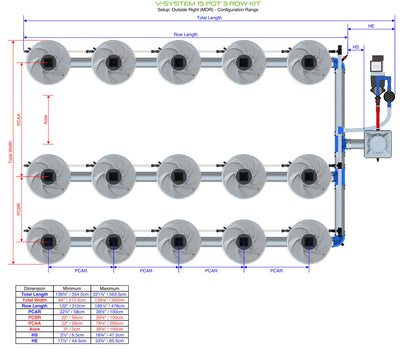

  • Minimum assembled size (can space pots more widely for a larger footprint):

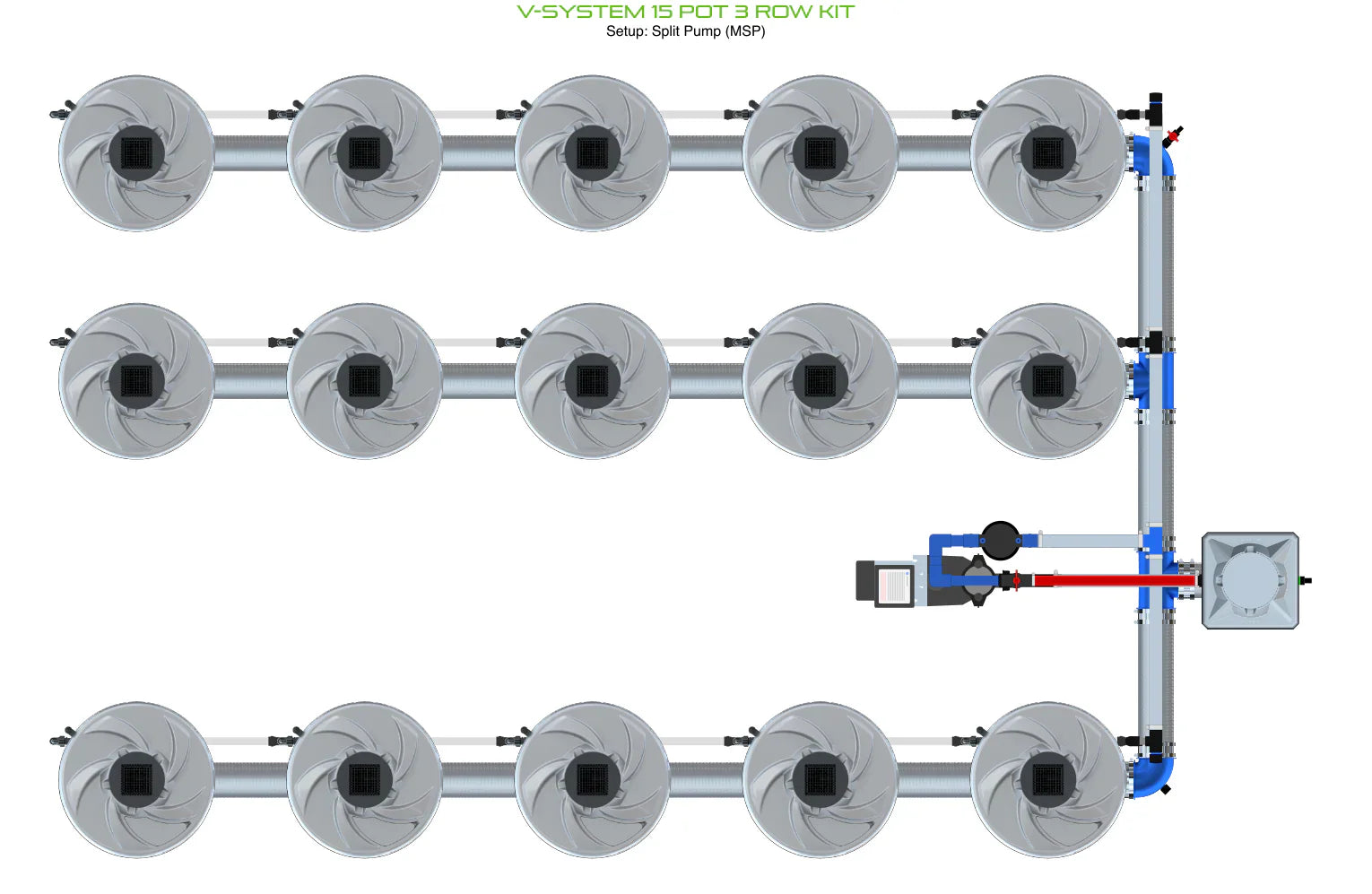

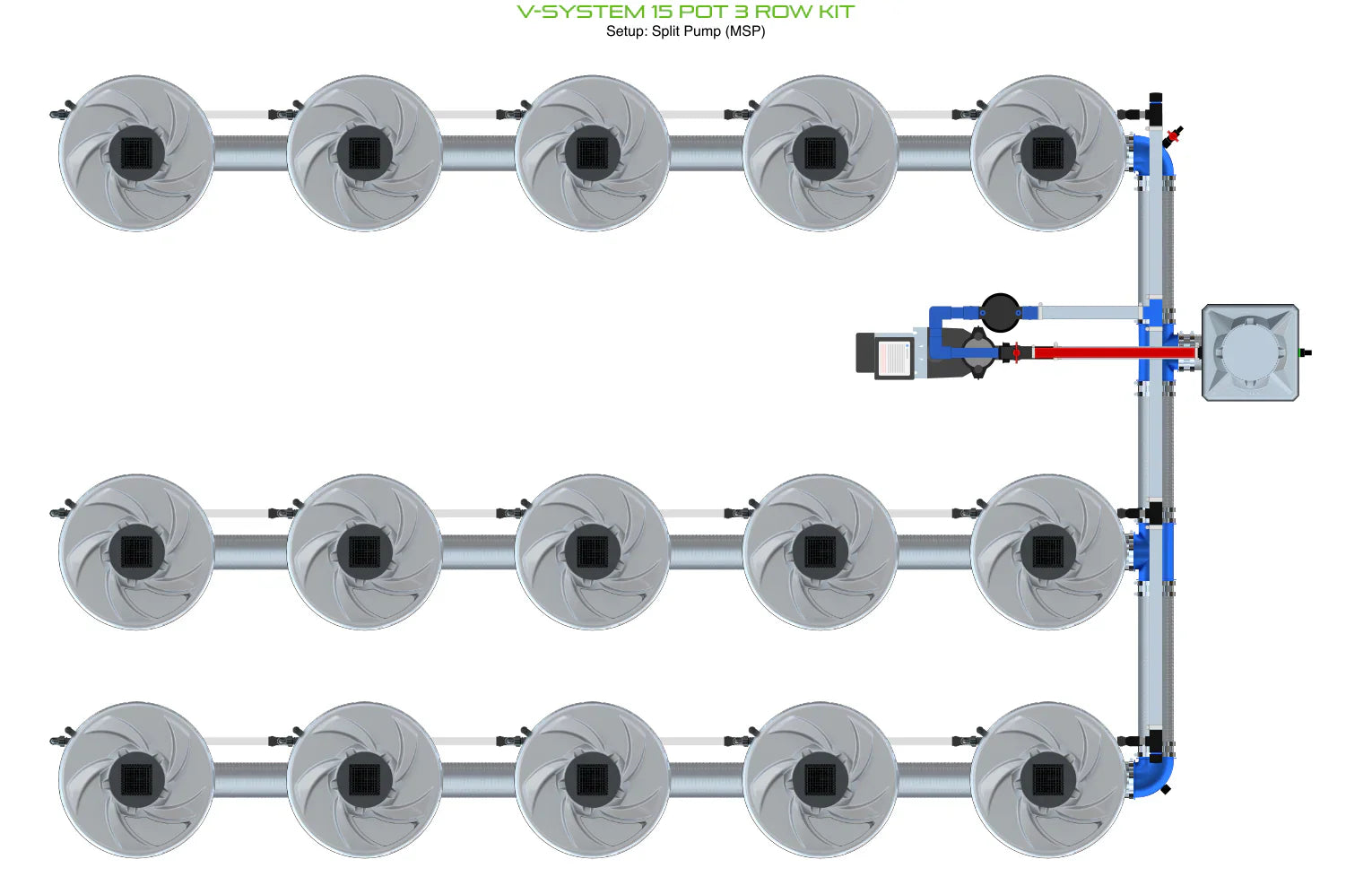

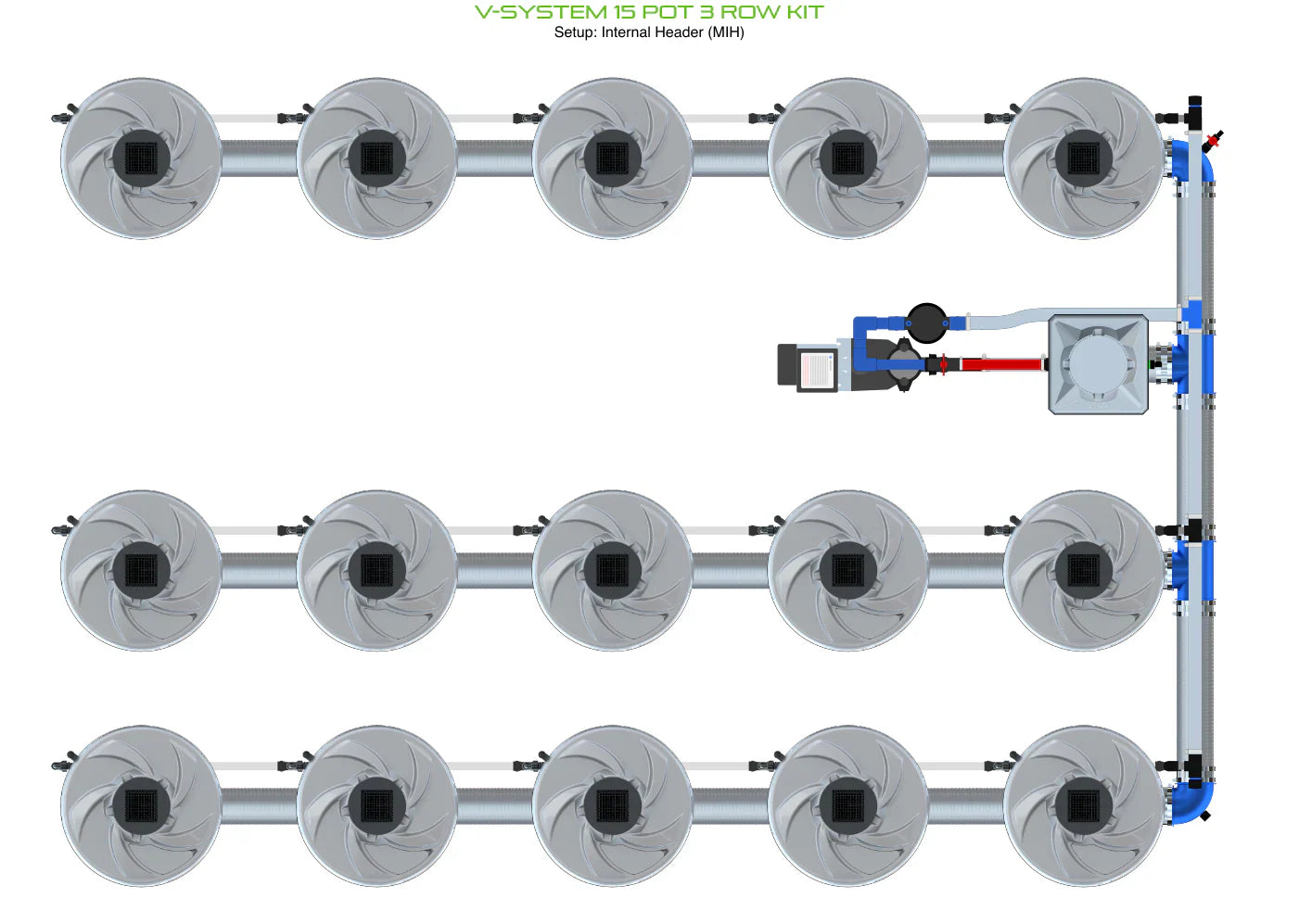

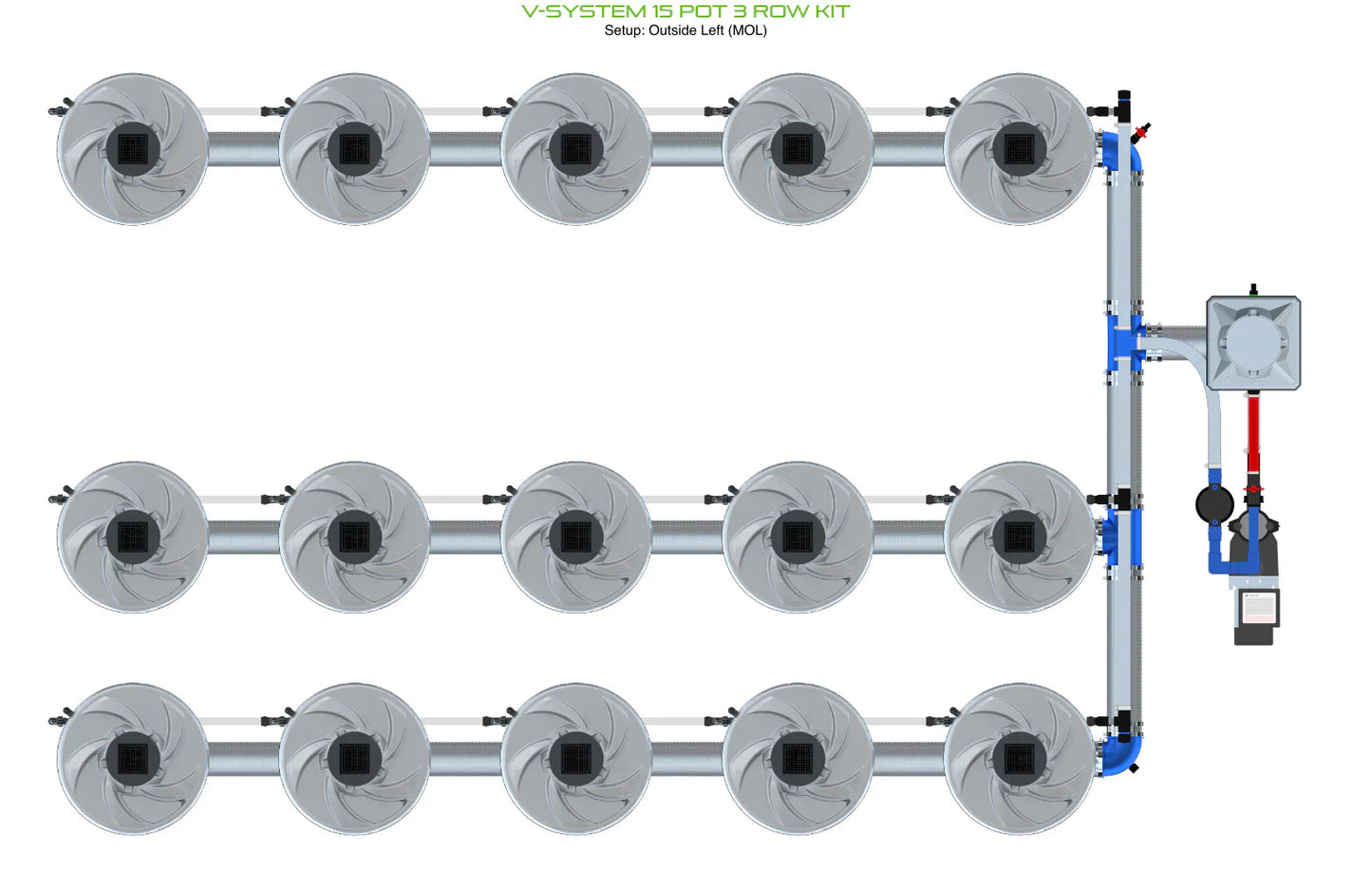

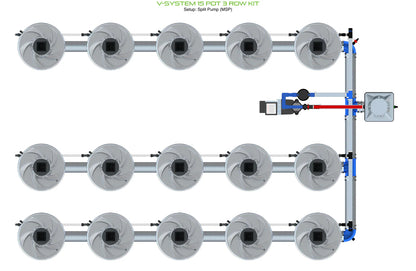

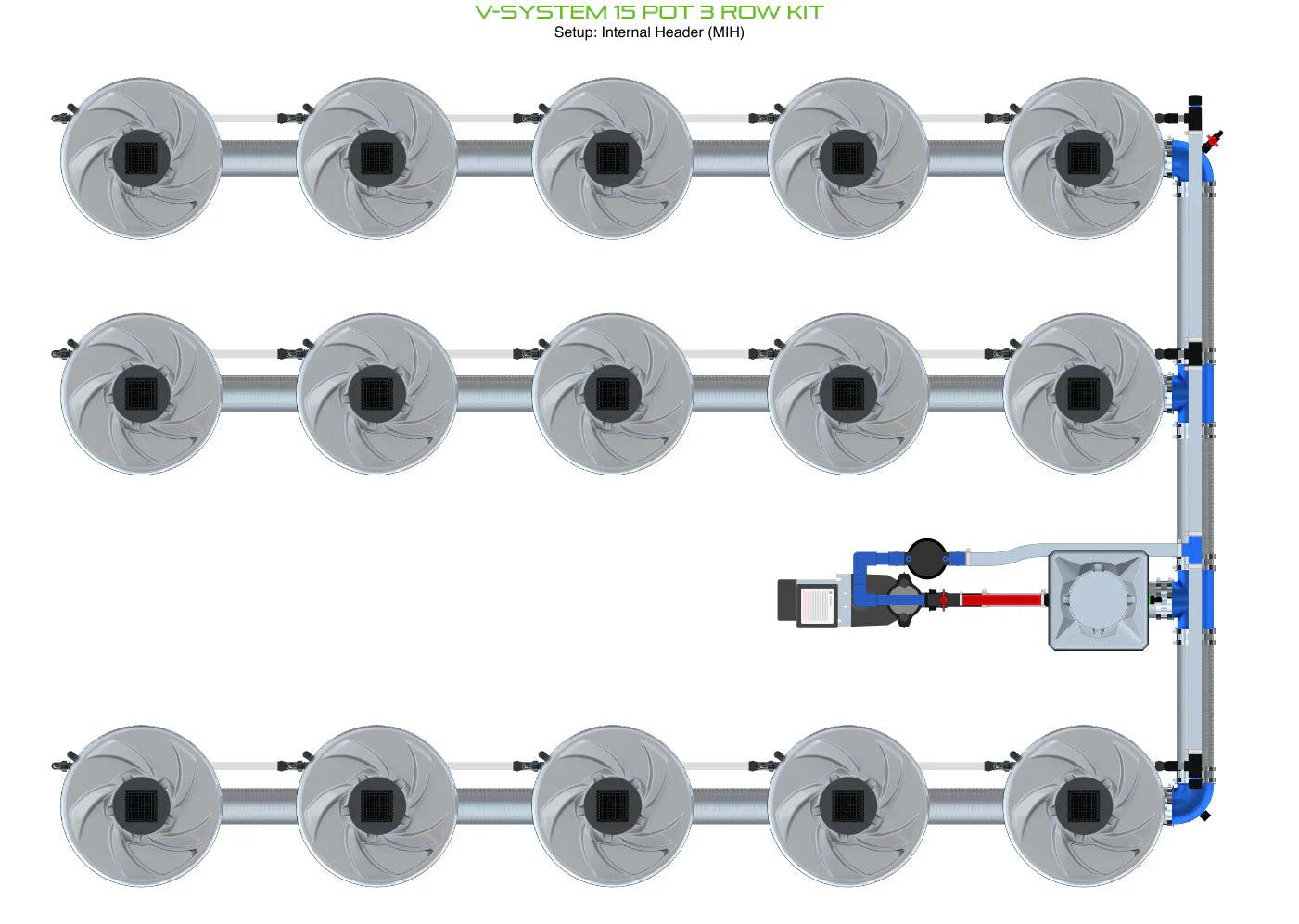

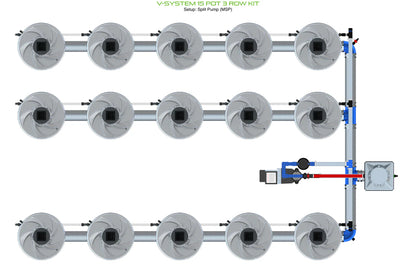

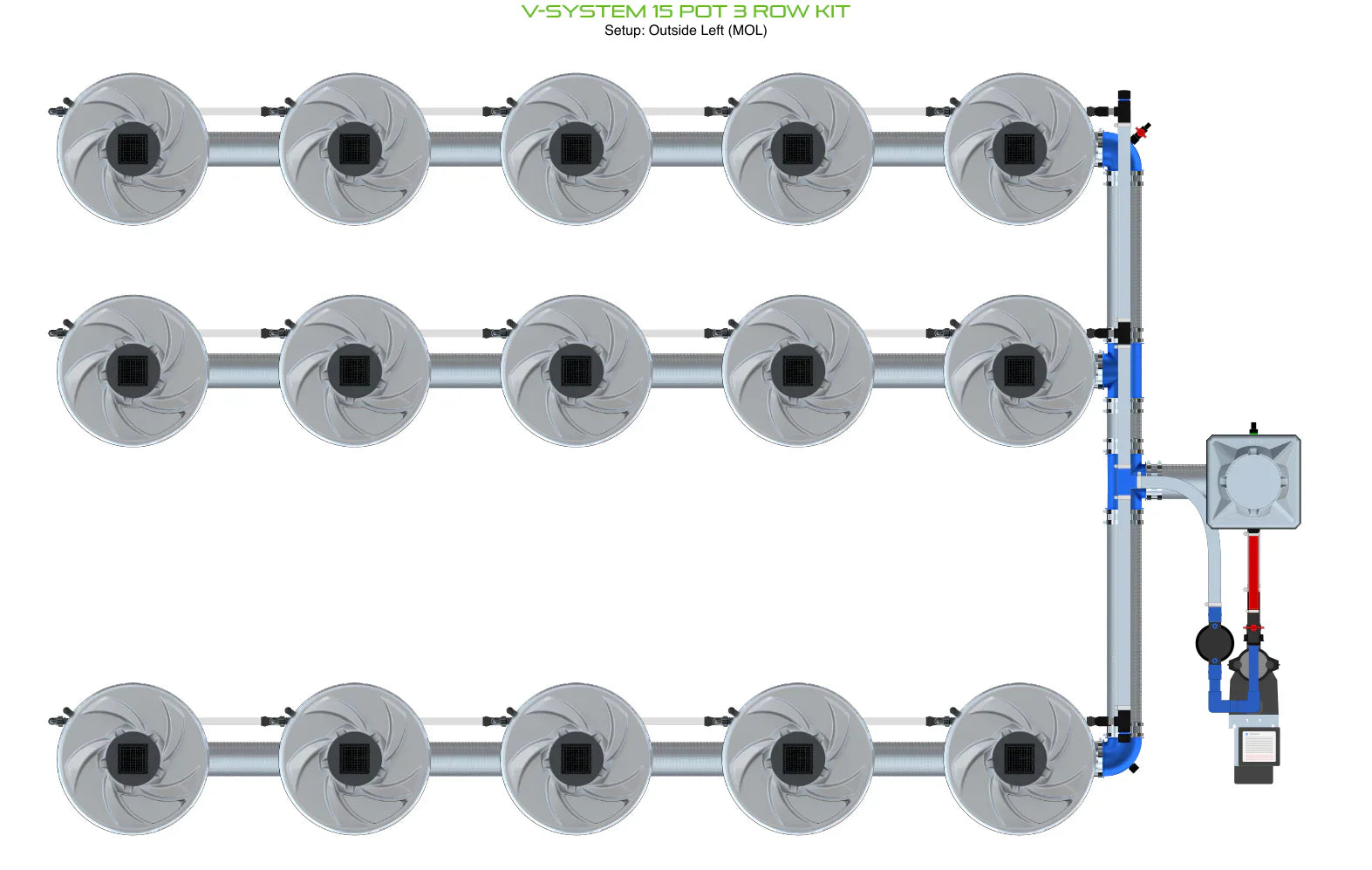

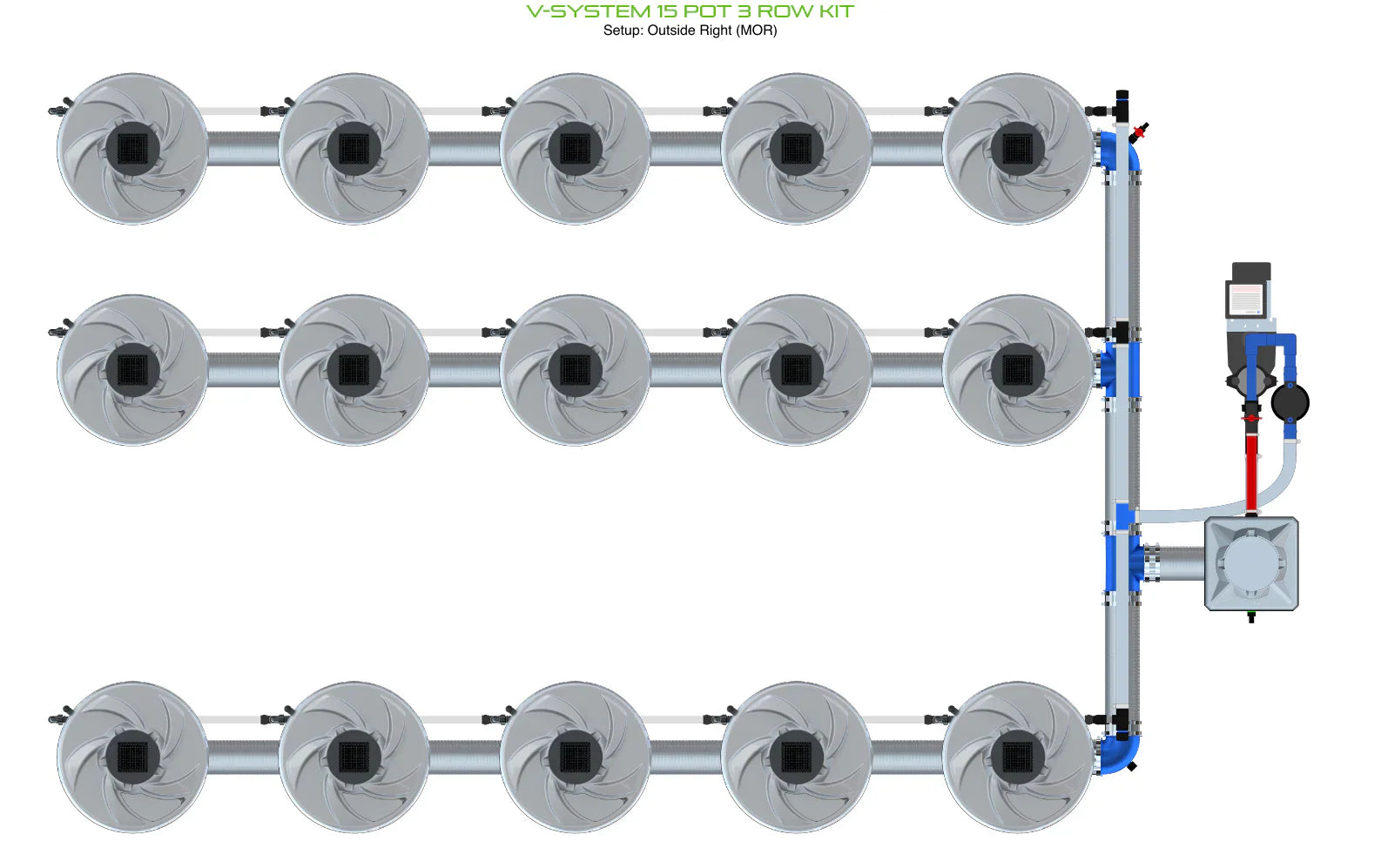

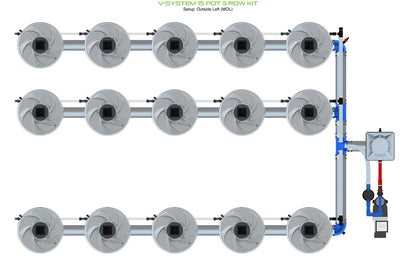

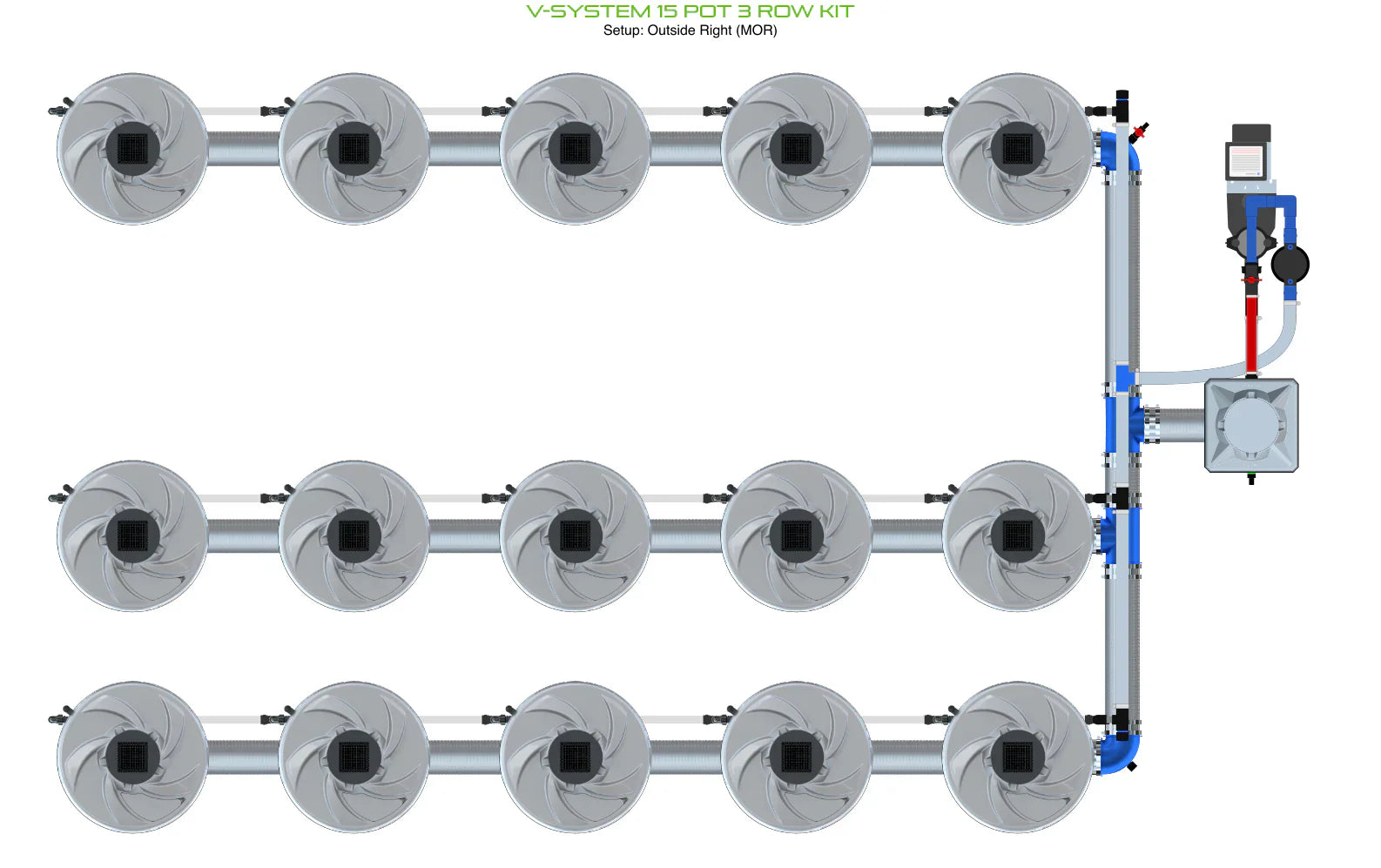

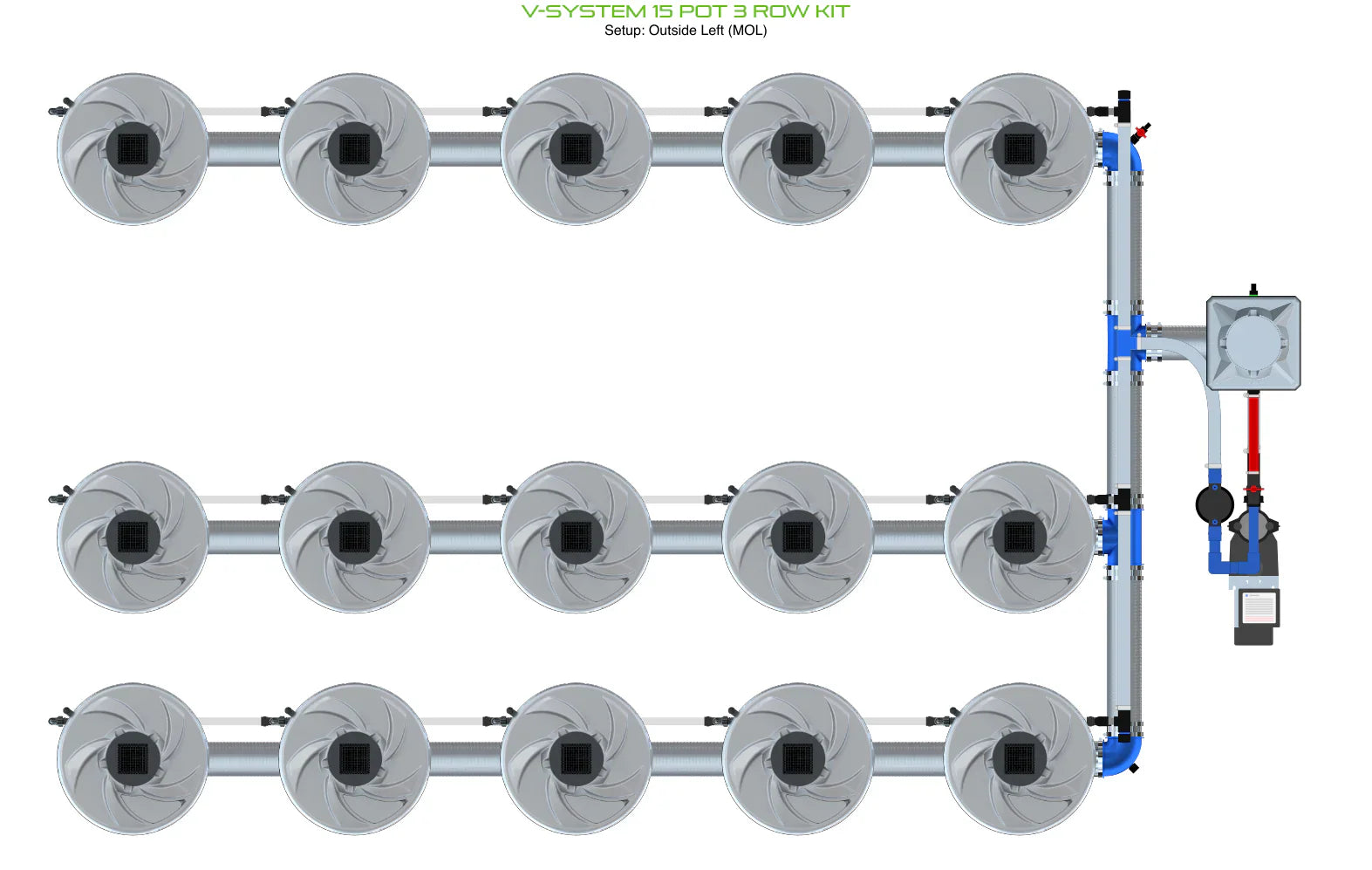

  • Setup Configuration: 1ML | 1MR
  • Length: Depends on kit configuration. | Depends on kit configuration.
  • Width: Depends on kit configuration. | Depends on kit configuration.
  • Maximum assembled size (can space pots more closely for a smaller footprint):
  • Water Pump Included with the Kit:
  • Depends on kit configuration.
    • Data Sheets
  • Download the instructions: here
    • Kit Contents
  • The V-SYSTEM 15 Pot 3 Row Kit Includes:
  • 1 x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
  • 15 x V-Pot 58L
  • 15 x V-Pot Base
  • 15 x V-Pot Lid
  • 15 x V-Pot Lid Inspection Cover
  • 15 x Square Net Pot
  • 15 x V-Pot Clip

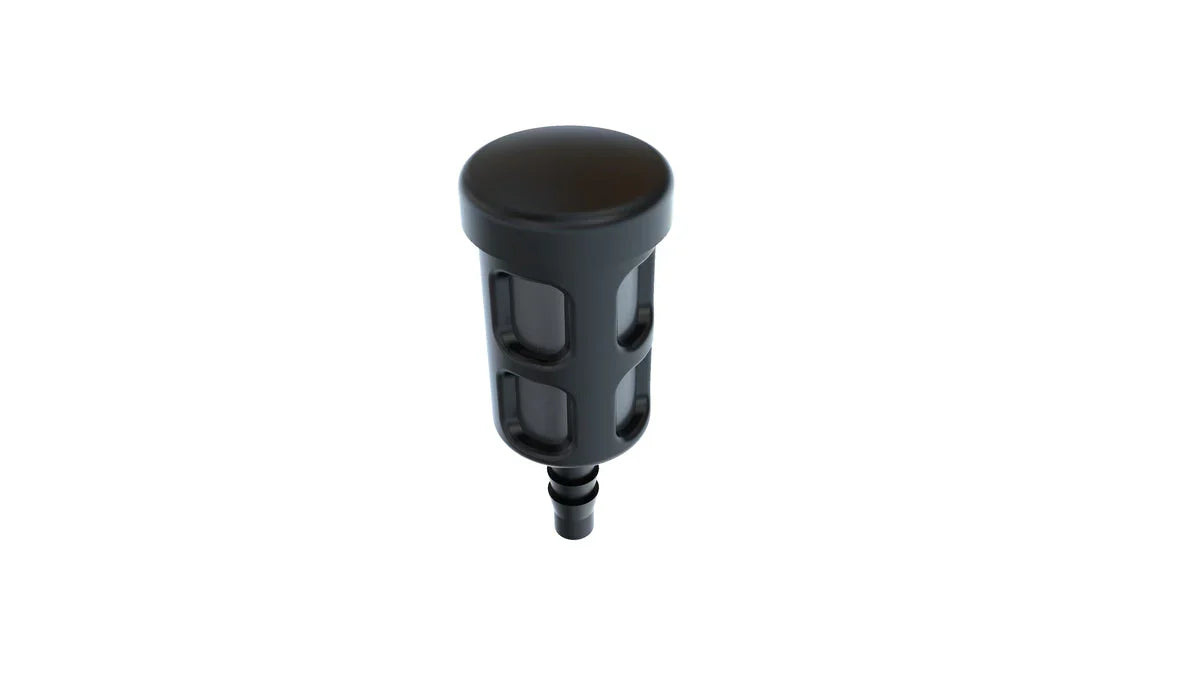

  • 15 x Air Filter for V-SYSTEM Venturi, 6mm
  • 15 x Silencer for Venturi
  • 15 x Venturi Fitting
  • 15 x Venturi Air Inlet Pipe 6mm Blue (2X 4")
  • 15 x Venturi Inlet Fitting for 22mm Pipe
  • 16 x Nut 5"
  • 16 x Washer 5" Green Silicone
  • 38 x 5" Stainless Steel Clamp
  • 1 x Distribution Tee 40mm
  • 3 x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 3 x DM Push-Fit Elbow 22mm V-SYSTEM
  • 12 x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1 x 1/2" Drain Cap Fitting
  • 1 x Drain Tap 1/2"-16mm Barb
  • 2 x Elbow 5" Barbed with Drain Point
  • 4 x Elbow 5" Threaded Dual-Flow
  • 1 x Filter Manifold Complete 40mm
  • 1 x Float Valve
  • 1 x V-SYSTEM Header Pot 20L 40mm
  • 1 x Silver Lid
  • 1 x Header Pot Blank
  • 1 x Hosetail 16mm-3/4" Female Green
  • 15 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
  • 1 x Pipe 32mm Red 1 Meter Spiral
  • 4 x Pipe 40mm Silver 1 Meter Spiral
  • 16 x Pipe 5" Silver Spiral 80cm
  • 2 x Tee 5" Barbed
  • 12 x Tee Threaded 5" Dual-Flow
  • 2 x Threaded Tank Connector 1"
  • 1 x Vortex Pump Inlet Manifold 40mm Short
  • 2 x 1" Cap for Chiller Connections
  • 1 x Tank Connector Straight 32mm
  • 1 x Tank Connector Straight 40mm
  • 1 x Terminal Manifold Left 40mm
  • 1 x Terminal Manifold Center 40mm
  • 1 x Terminal Manifold Right 40mm
  • 36 x 22mm Insert for 22mm Rigid Pipe
  • 2 x Clamp Size 2
  • 10 x Clamp Size 3
  • 1 x 8mm Screwdriver for 5" Clamp
  • 1 x Wrench 5"
  • 1 x Wrench for Float Valve
  • 1 x 8mm Socket for 5" Clamp
  • 1 x Pipe Cutter 50mm
  • 4 x Silicone Grease - Food Grade
    •
