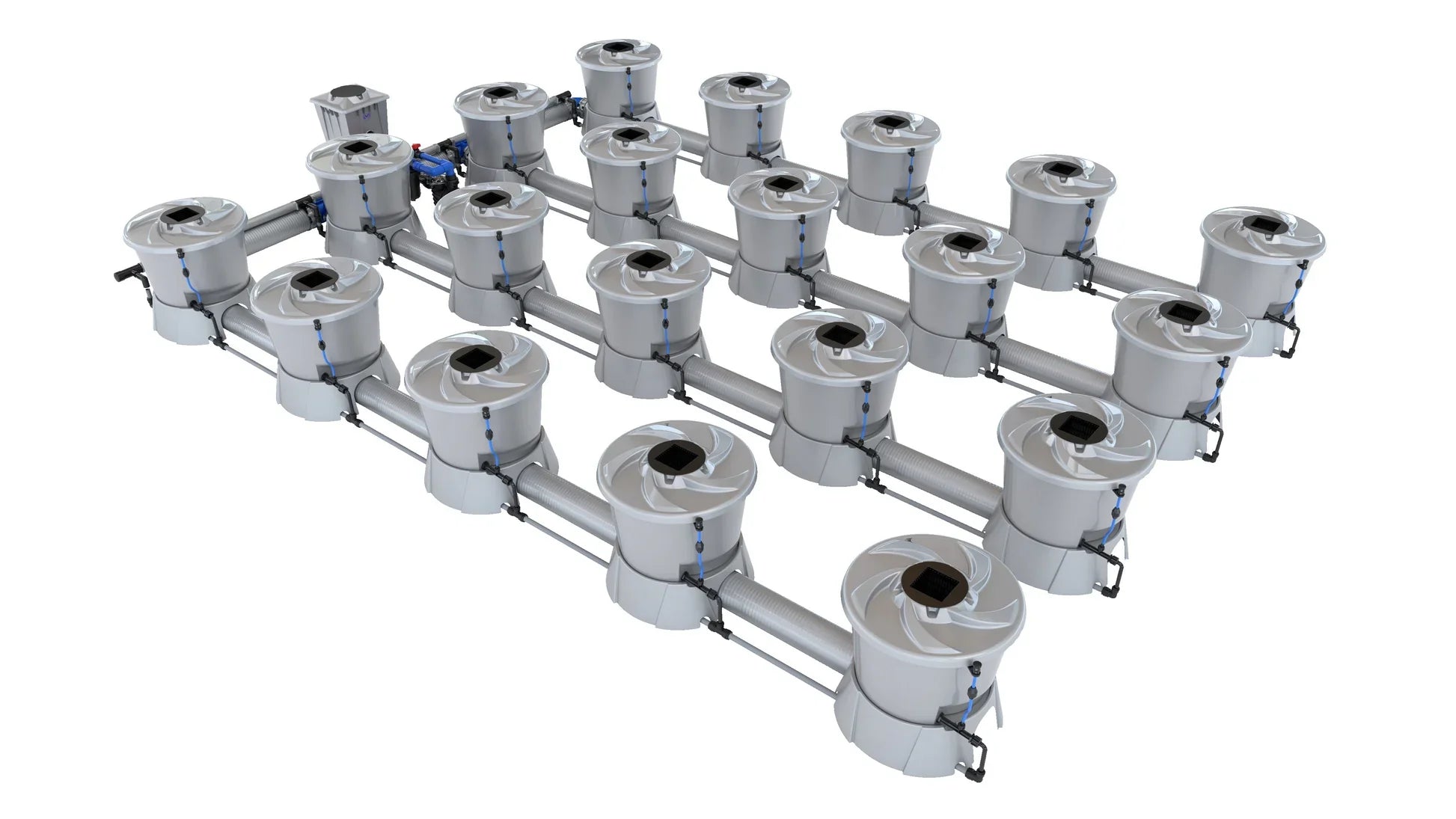

ALIEN Hydroponics V-SYSTEM 20 Pot 4 Row Kit

ALIEN Hydroponics V-SYSTEM 20 Pot 4 Row Kit

$7,110.70 USD
$0.00 USD $7,110.70 USD
Sale Sold out
Shipping calculated at checkout.
Description
  • Key V-SYSTEM Benefits: The V-SYSTEM offers direct nutrient distribution and maximum oxygen saturation without the need for an air pump. There's no risk of heat transfer due to its vortex fluid motion. Interestingly, it's naturally aspirated and capable of supporting large plants. In addition, the pots and system drain completely to prevent root clogging. Proudly, it's made in Britain.

  • Key V-SYSTEM Features: The V-SYSTEM comes with a 15-gallon (58L) V-POT that includes a water fill line and total-drainage bases. Moreover, it features venturi injectors and inspection covers, 5" spiral tubing, and 5" Dual-Flow fittings. The integrated filtration system, T304 Stainless clamps, and heavy-duty components assure durability. It also includes push-fit feed connections and a JET-STREAM Vortex pump to provide optimal service.
    • Specifications
  • Number of pots: Depends on configuration
  • Number of rows: Depends on configuration
  • Kit Total Fluid Volume: Depends on configuration

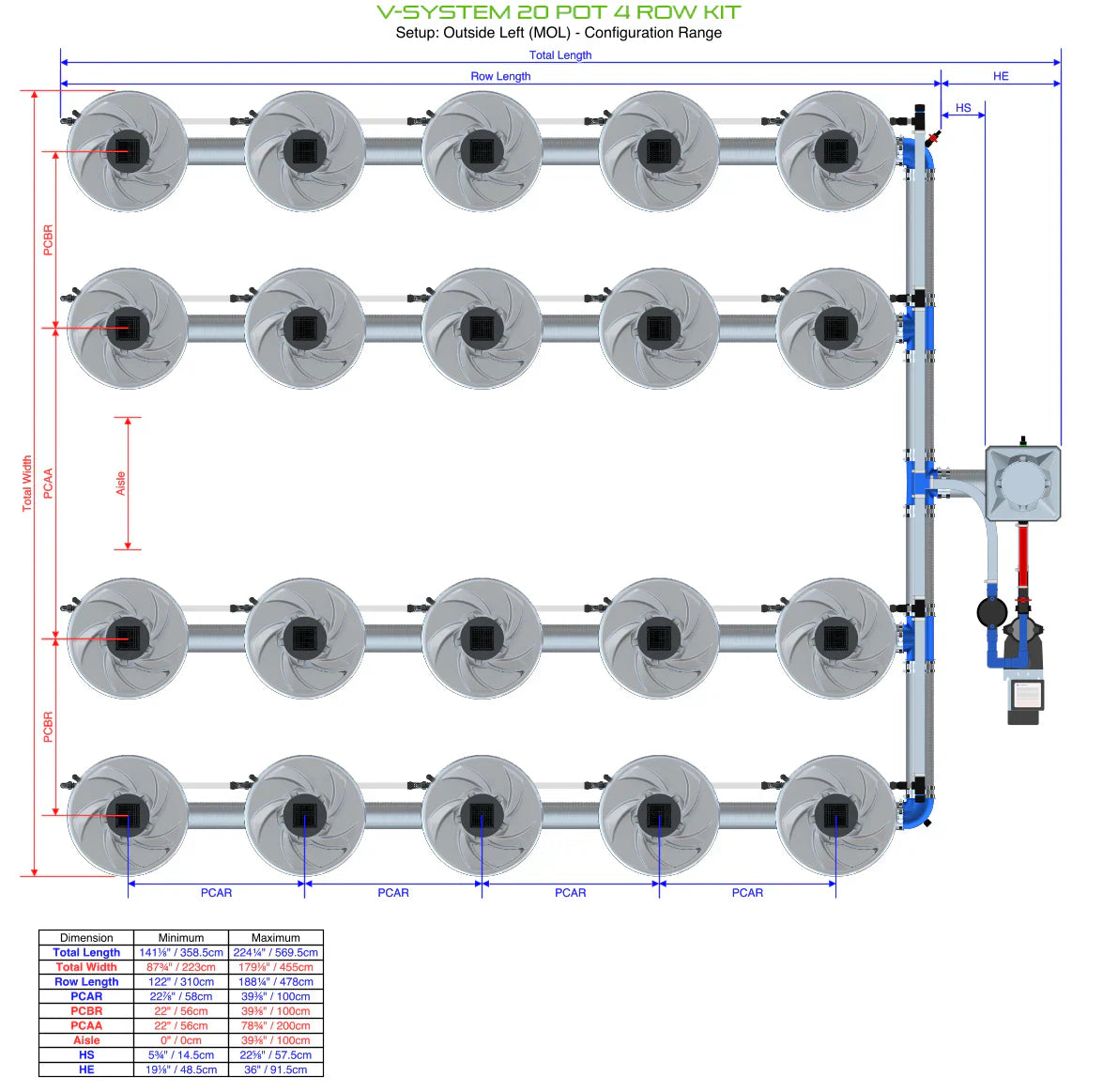

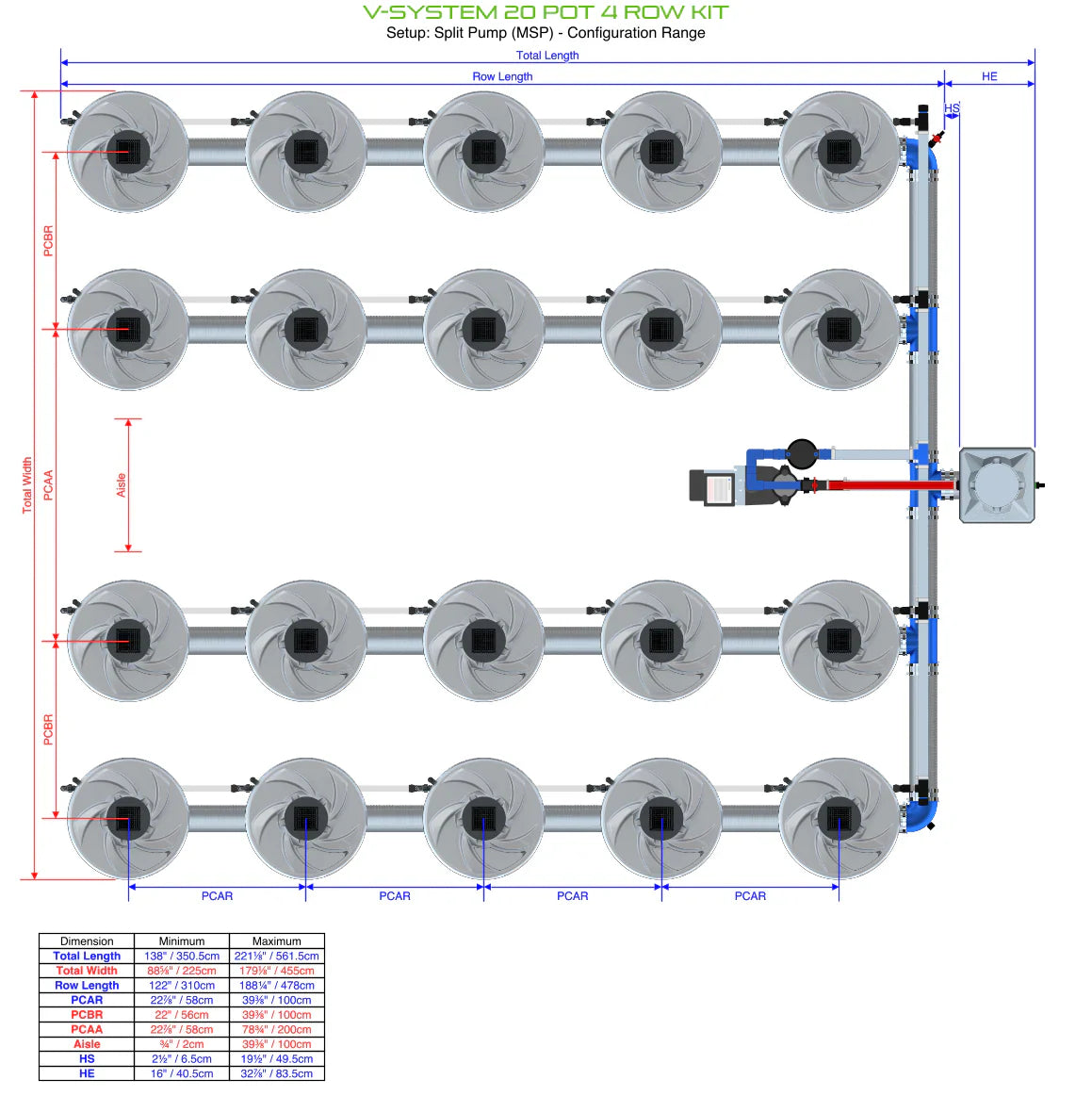

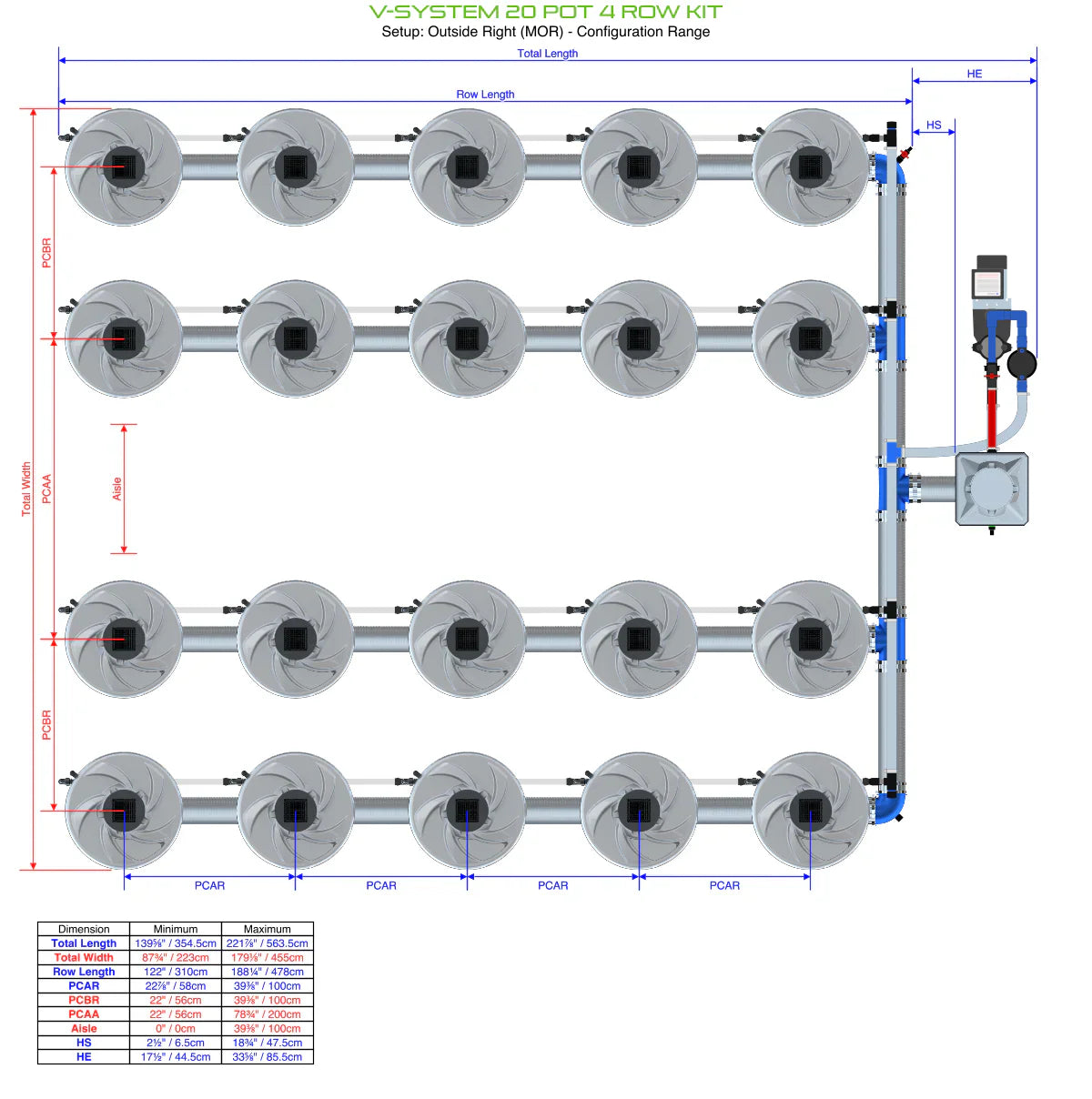

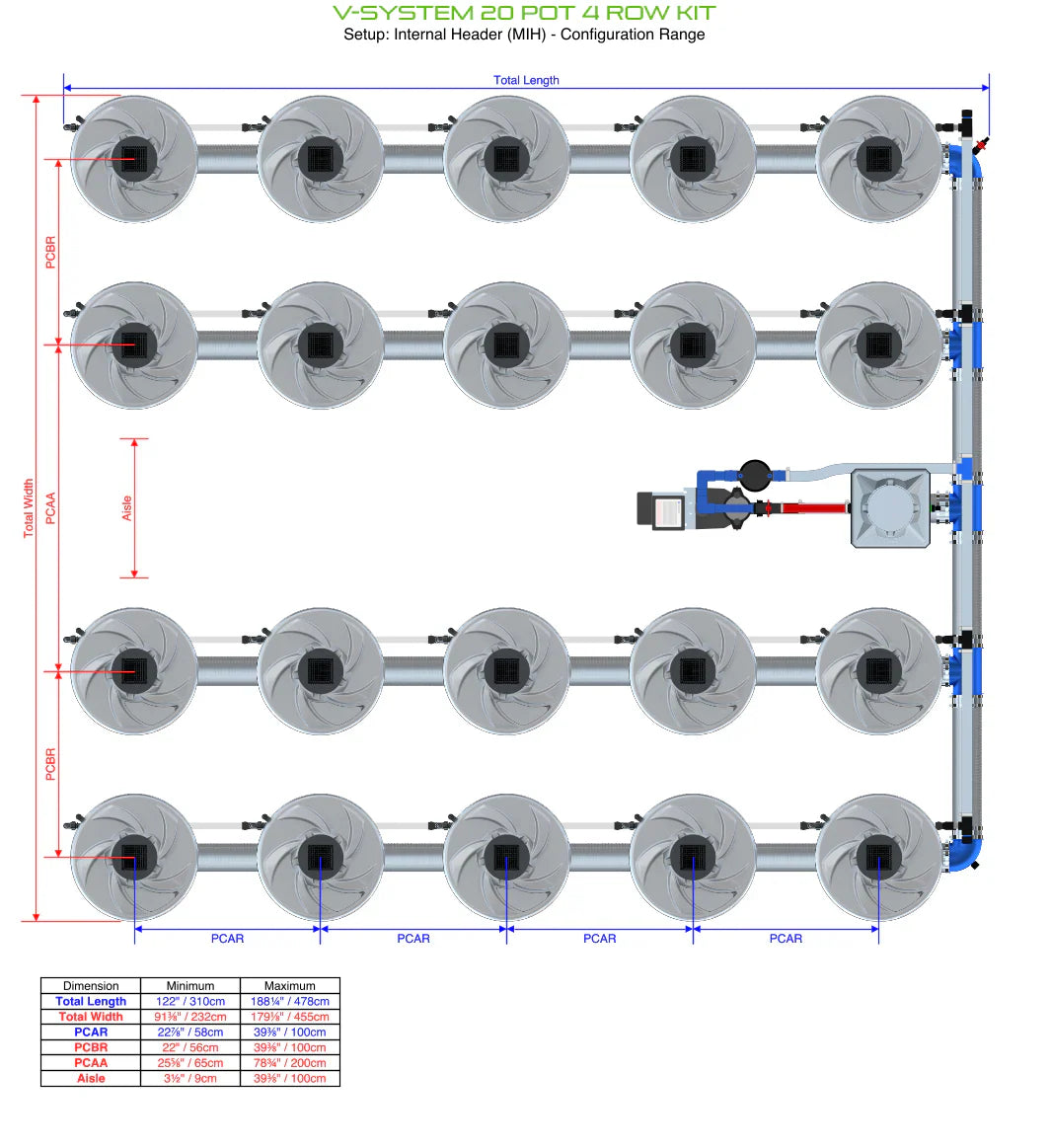

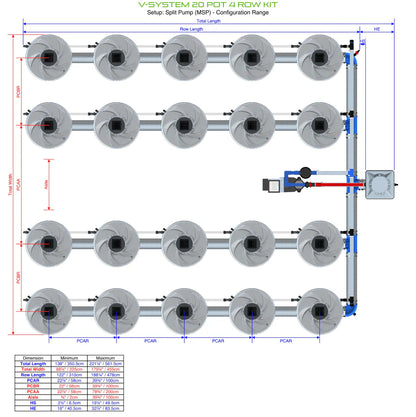

  • Minimum assembled size (can space pots more widely for a larger footprint):

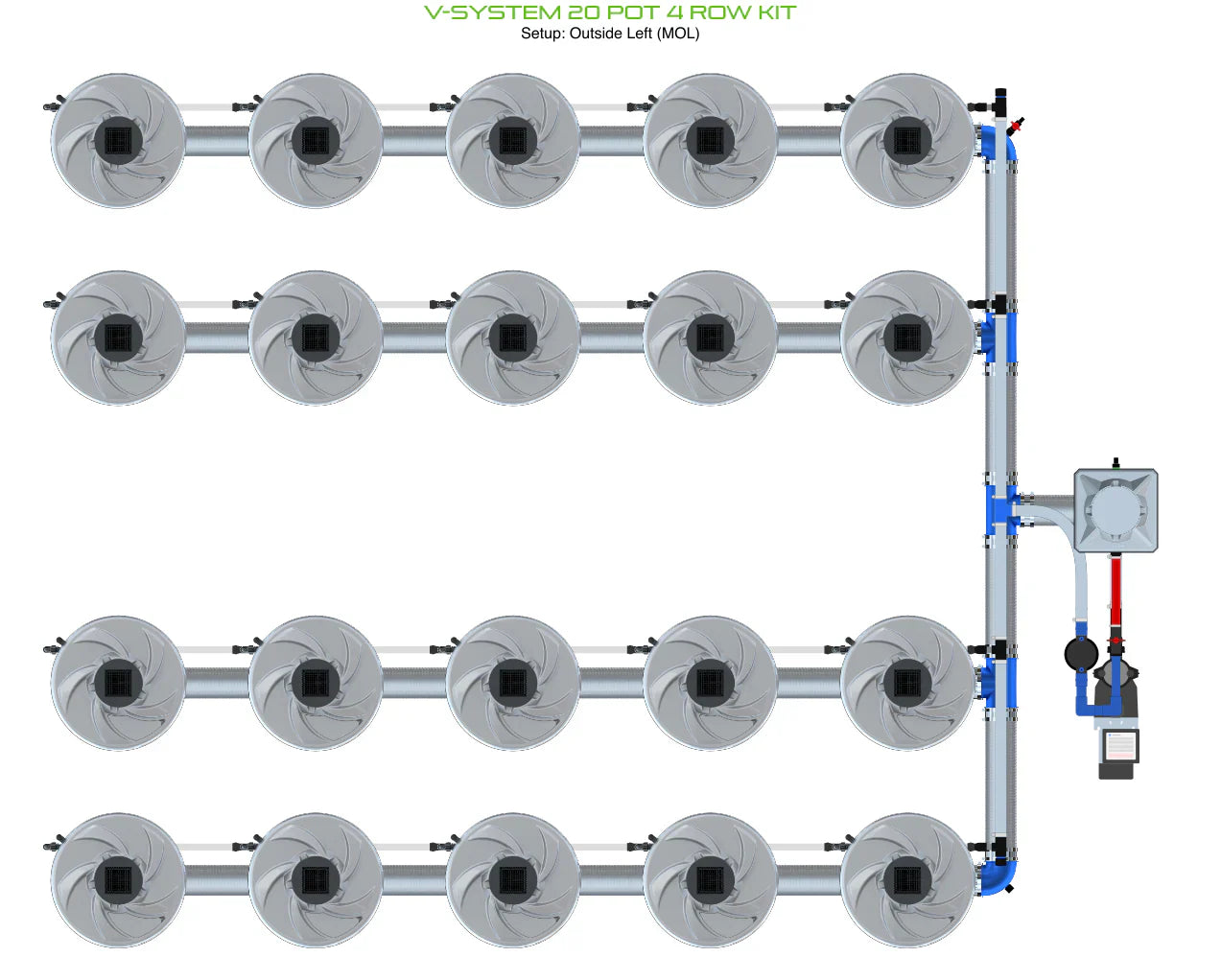

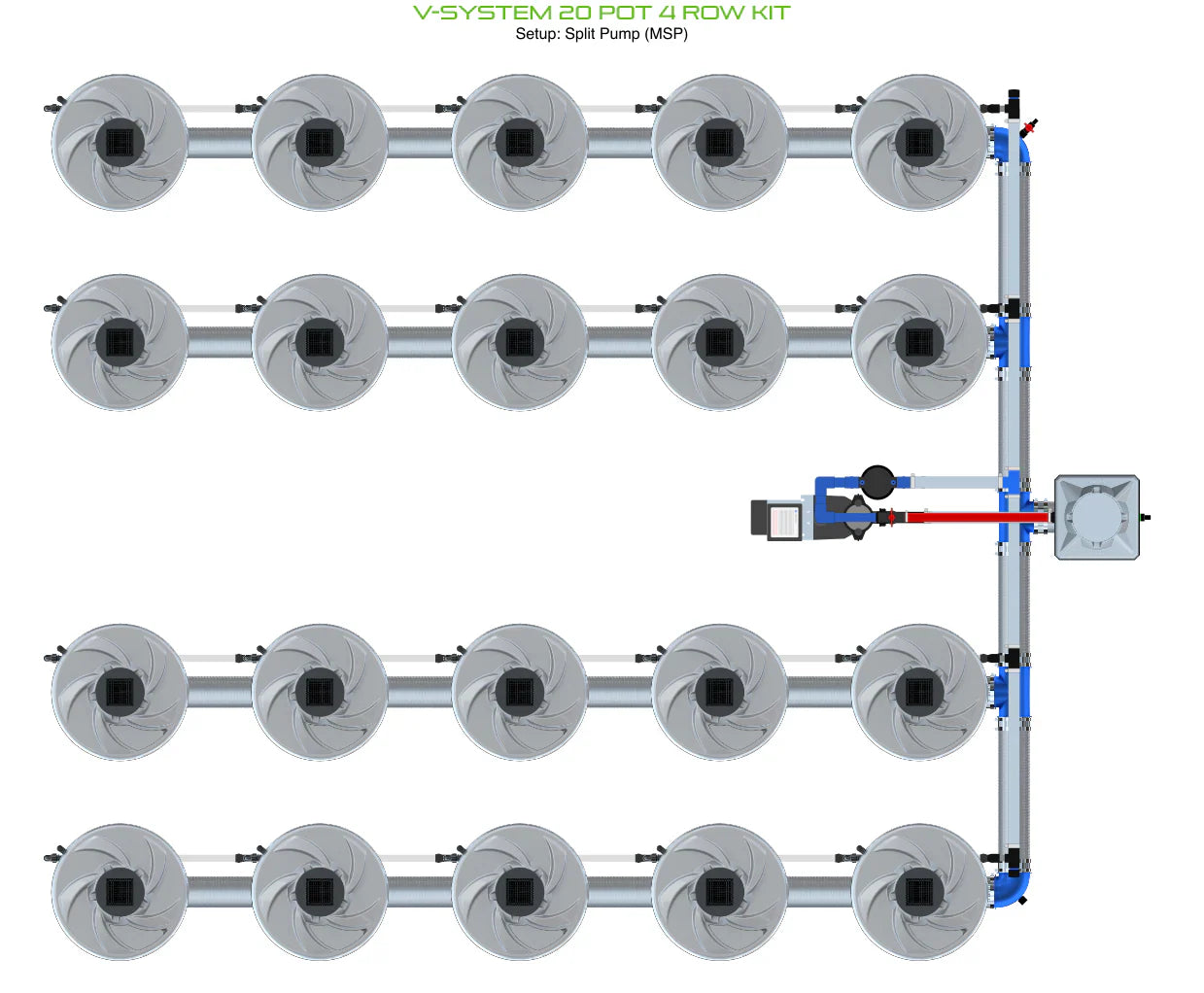

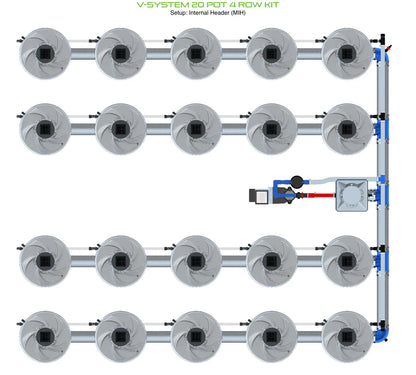

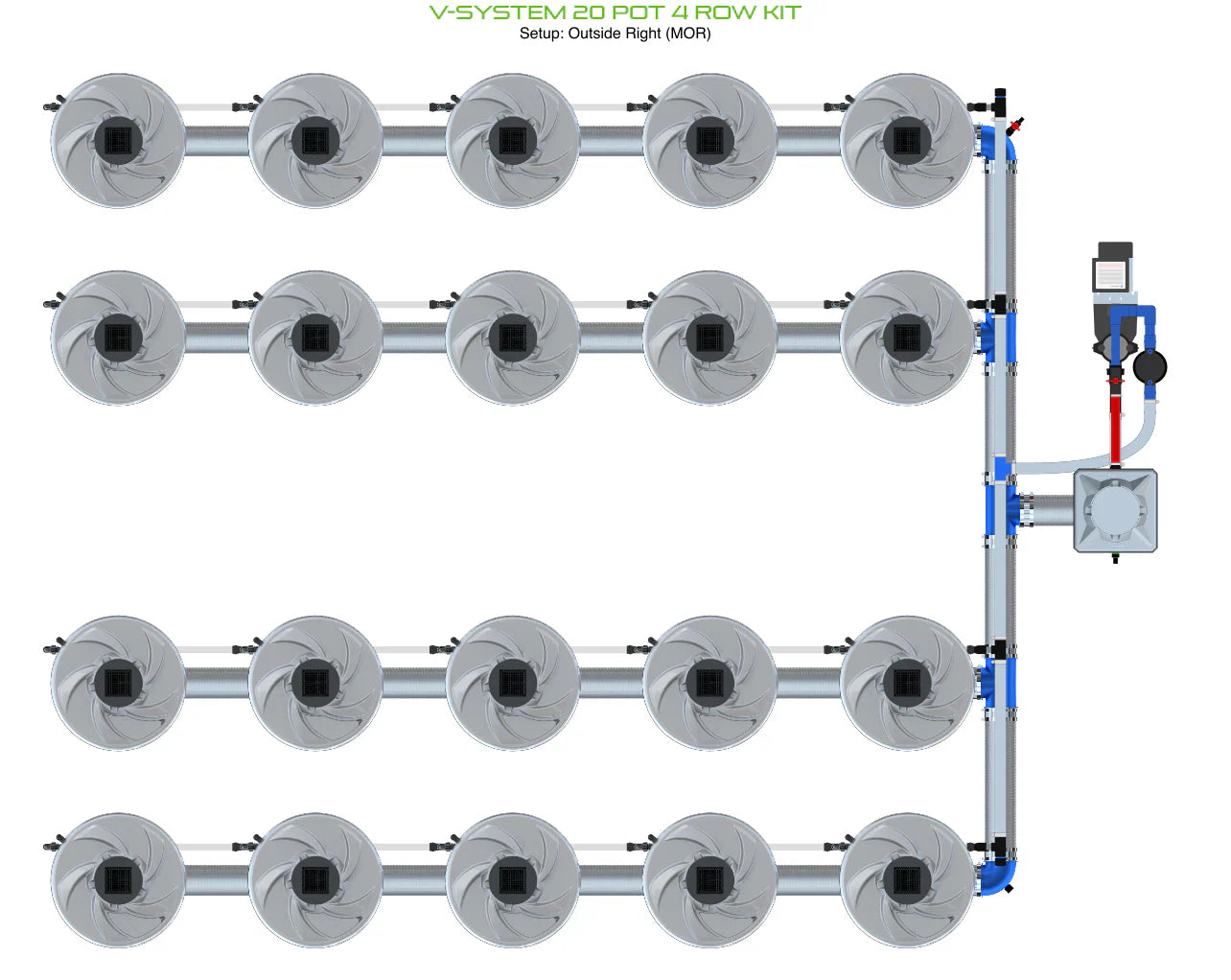

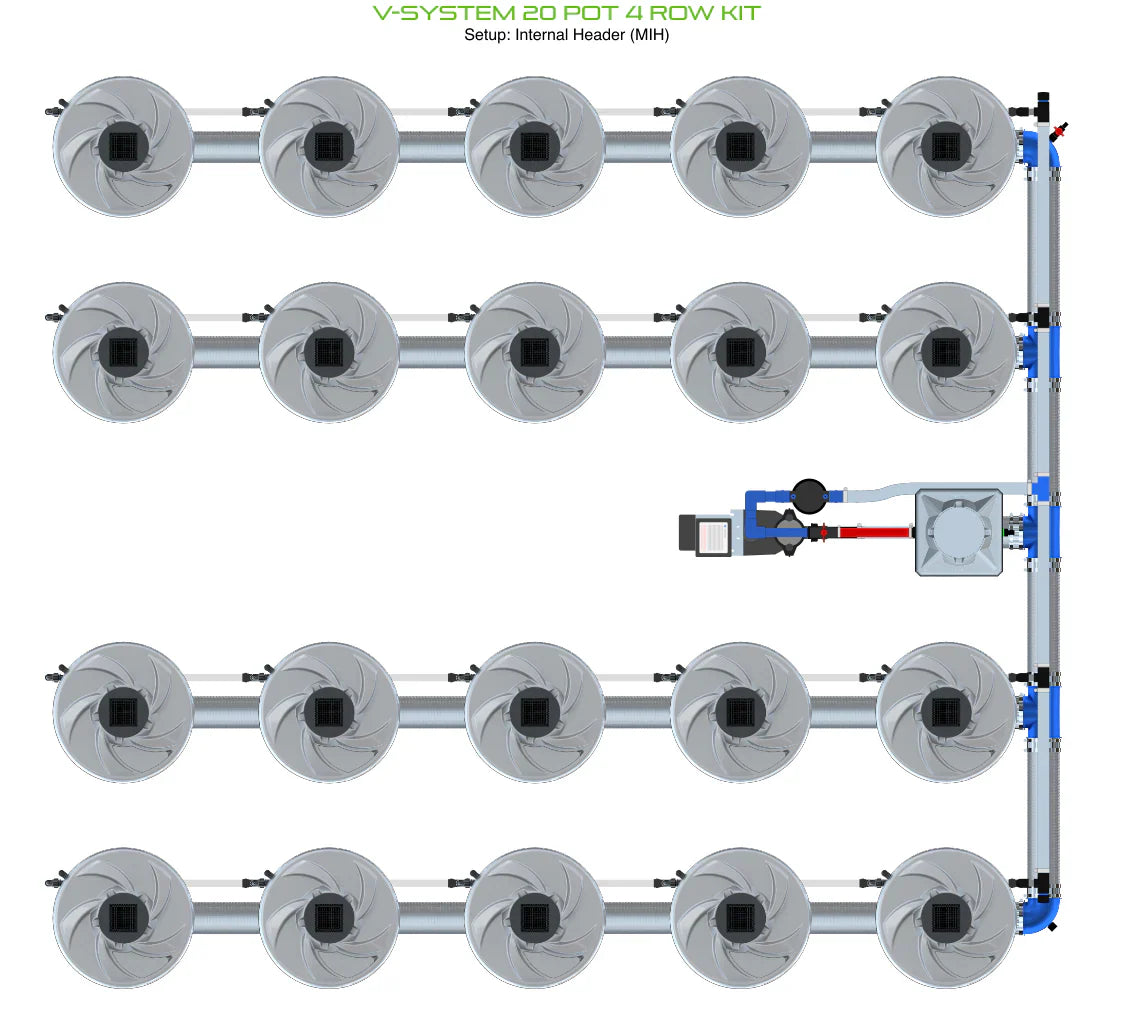

  • Setup Configuration: 1ML | 1MR
  • Length: Depends on kit configuration. | Depends on kit configuration.
  • Width: Depends on kit configuration. | Depends on kit configuration.
  • Maximum assembled size (can space pots more closely for a smaller footprint):
  • Water Pump Included with the Kit:
  • Depends on kit configuration.
    • Data Sheets
  • Download the instructions: here
    • Kit Contents

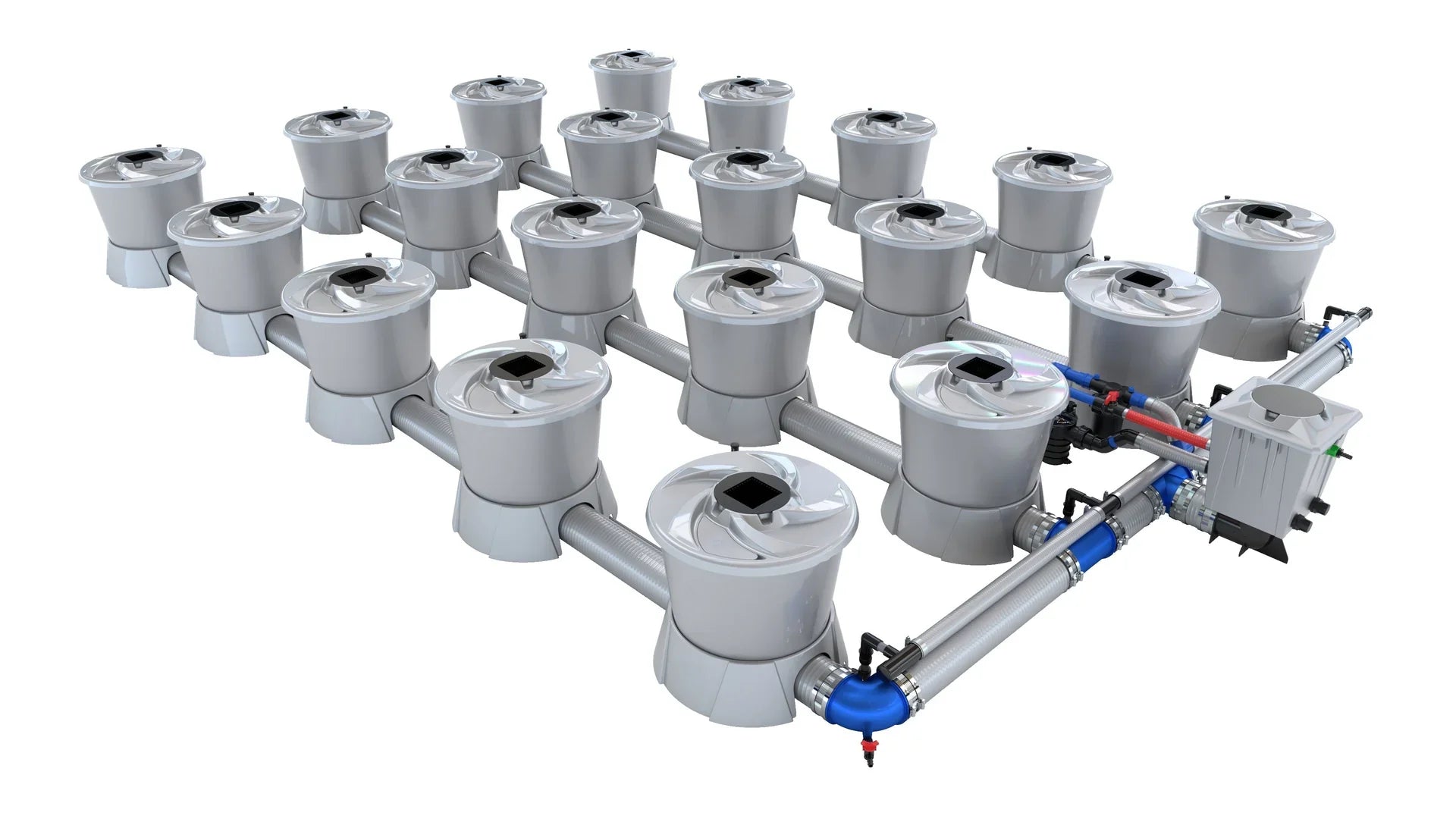

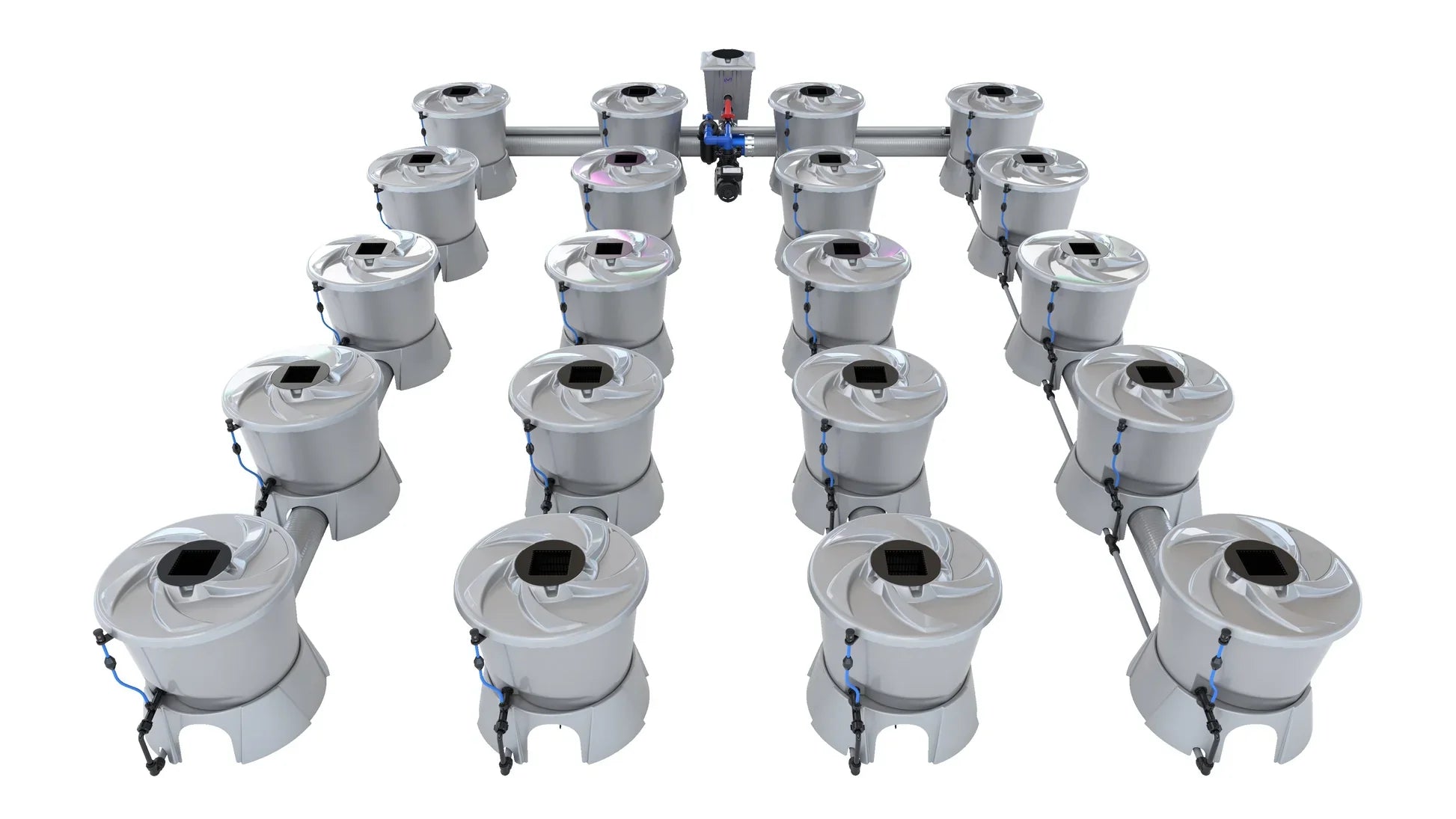

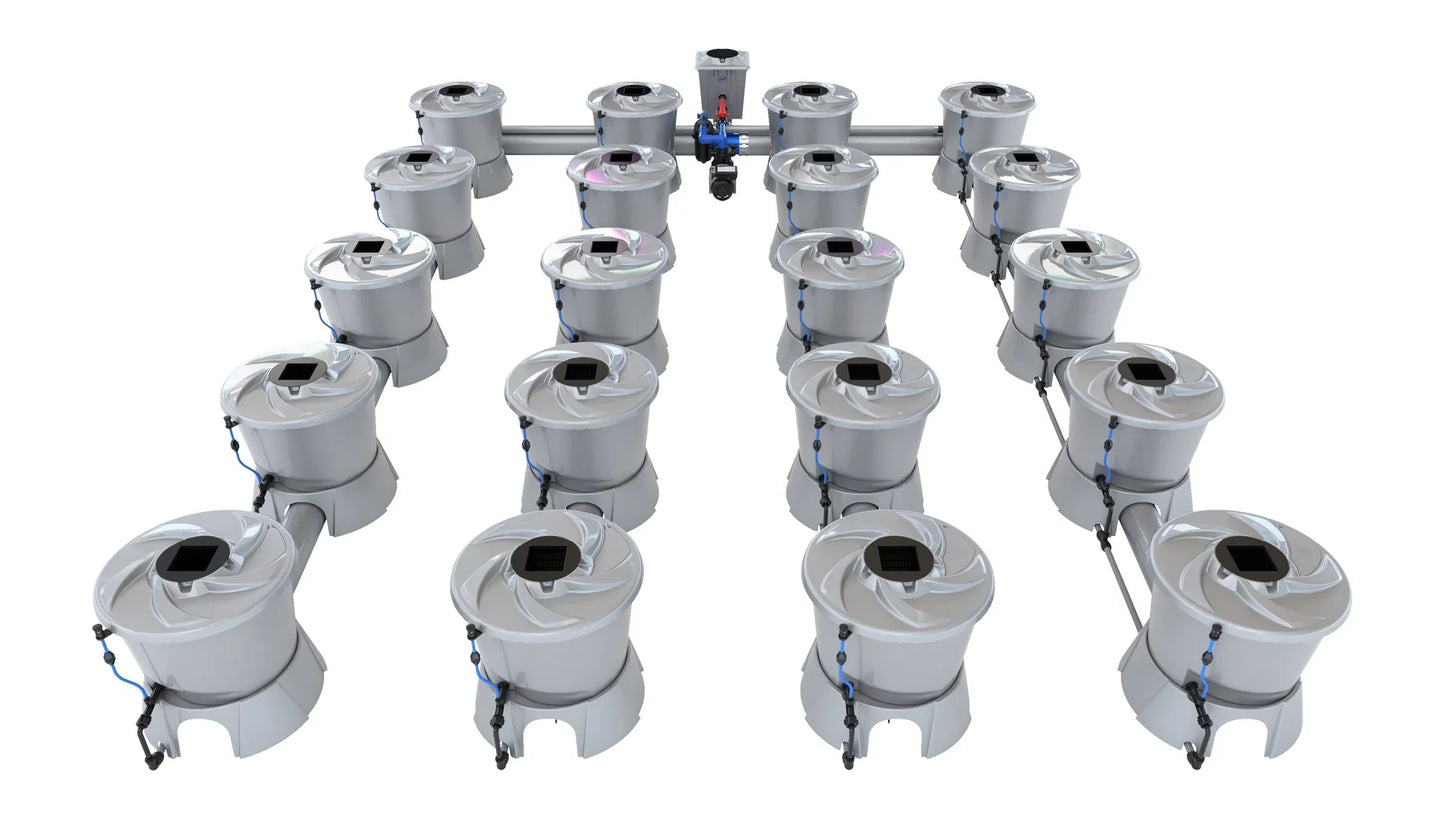

  • The V-SYSTEM 20 Pot 4 Row Kit Includes:
  • 1 x V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h
  • 20 x V-Pot 58L
  • 20 x V-Pot Base
  • 20 x V-Pot Lid
  • 20 x V-Pot Lid Inspection Cover
  • 20 x Square Net Pot
  • 20 x V-Pot Clip

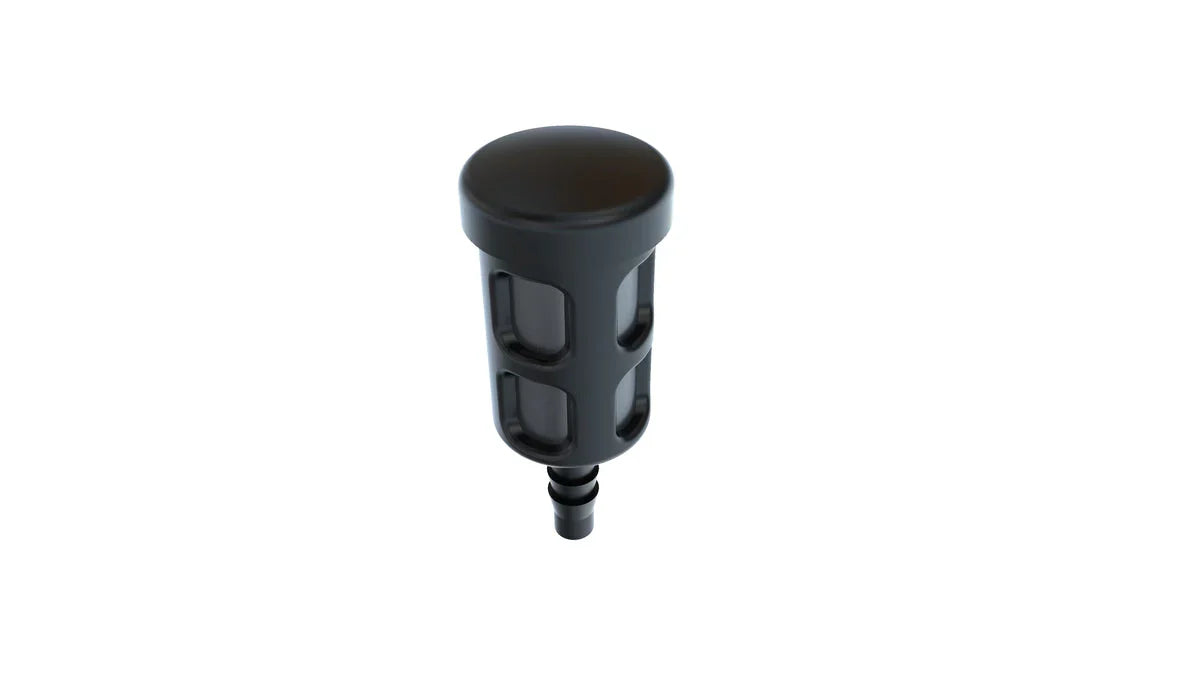

  • 20 x Air Filter for V-SYSTEM Venturi, 6mm
  • 20 x Silencer for Venturi
  • 20 x Venturi Fitting
  • 20 x Venturi Air Inlet Pipe 6mm Blue (2X 4")
  • 20 x Venturi Inlet Fitting for 22mm Pipe
  • 21 x Nut 5"
  • 21 x Washer 5" Green Silicone
  • 50 x 5" Stainless Steel Clamp
  • 1 x Distribution Tee 40mm
  • 4 x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 4 x DM Push-Fit Elbow 22mm V-SYSTEM
  • 16 x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1 x 1/2" Drain Cap Fitting
  • 1 x Drain Tap 1/2"-16mm Barb
  • 2 x Elbow 5" Barbed with Drain Point
  • 5 x Elbow 5" Threaded Dual-Flow
  • 1 x Filter Manifold Complete 40mm
  • 1 x Float Valve
  • 1 x V-SYSTEM Header Pot 20L 40mm
  • 1 x Silver Lid
  • 1 x Header Pot Blank
  • 1 x Hosetail 16mm-3/4" Female Green
  • 20 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
  • 1 x Pipe 32mm Red 1 Meter Spiral
  • 5 x Pipe 40mm Silver 1 Meter Spiral
  • 22 x Pipe 5" Silver Spiral 80cm
  • 3 x Tee 5" Barbed
  • 16 x Tee Threaded 5" Dual-Flow
  • 2 x Threaded Tank Connector 1"
  • 1 x Vortex Pump Inlet Manifold 40mm Short
  • 2 x 1" Cap for Chiller Connections
  • 1 x Tank Connector Straight 32mm
  • 1 x Tank Connector Straight 40mm
  • 1 x Terminal Manifold Left 40mm
  • 2 x Terminal Manifold Center 40mm
  • 1 x Terminal Manifold Right 40mm
  • 48 x 22mm Insert for 22mm Rigid Pipe
  • 2 x Clamp Size 2
  • 12 x Clamp Size 3
  • 1 x 8mm Screwdriver for 5" Clamp
  • 1 x Wrench 5"
  • 1 x Wrench for Float Valve
  • 1 x 8mm Socket for 5" Clamp
  • 1 x Pipe Cutter 50mm
  • 5 x Silicone Grease - Food Grade
    •
